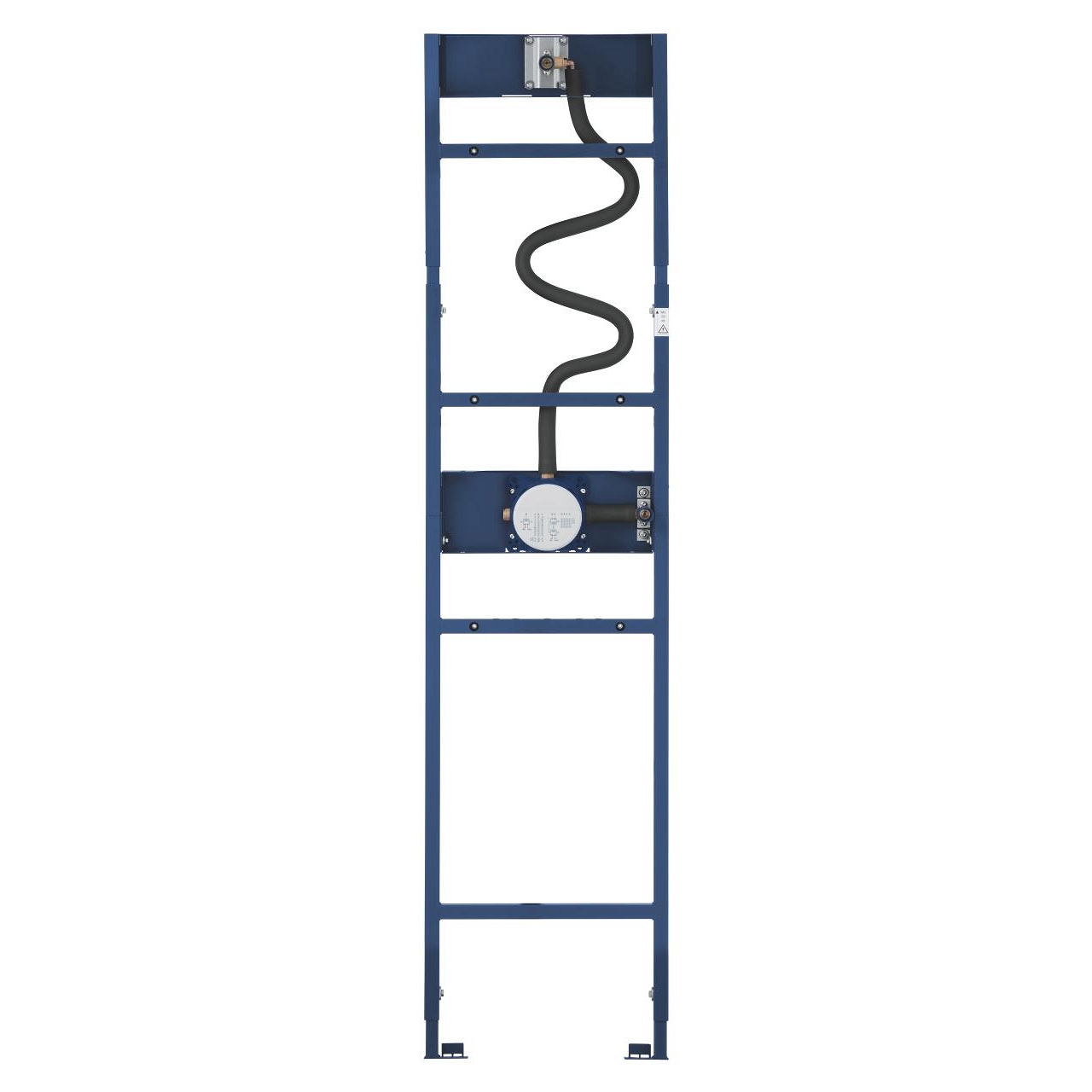

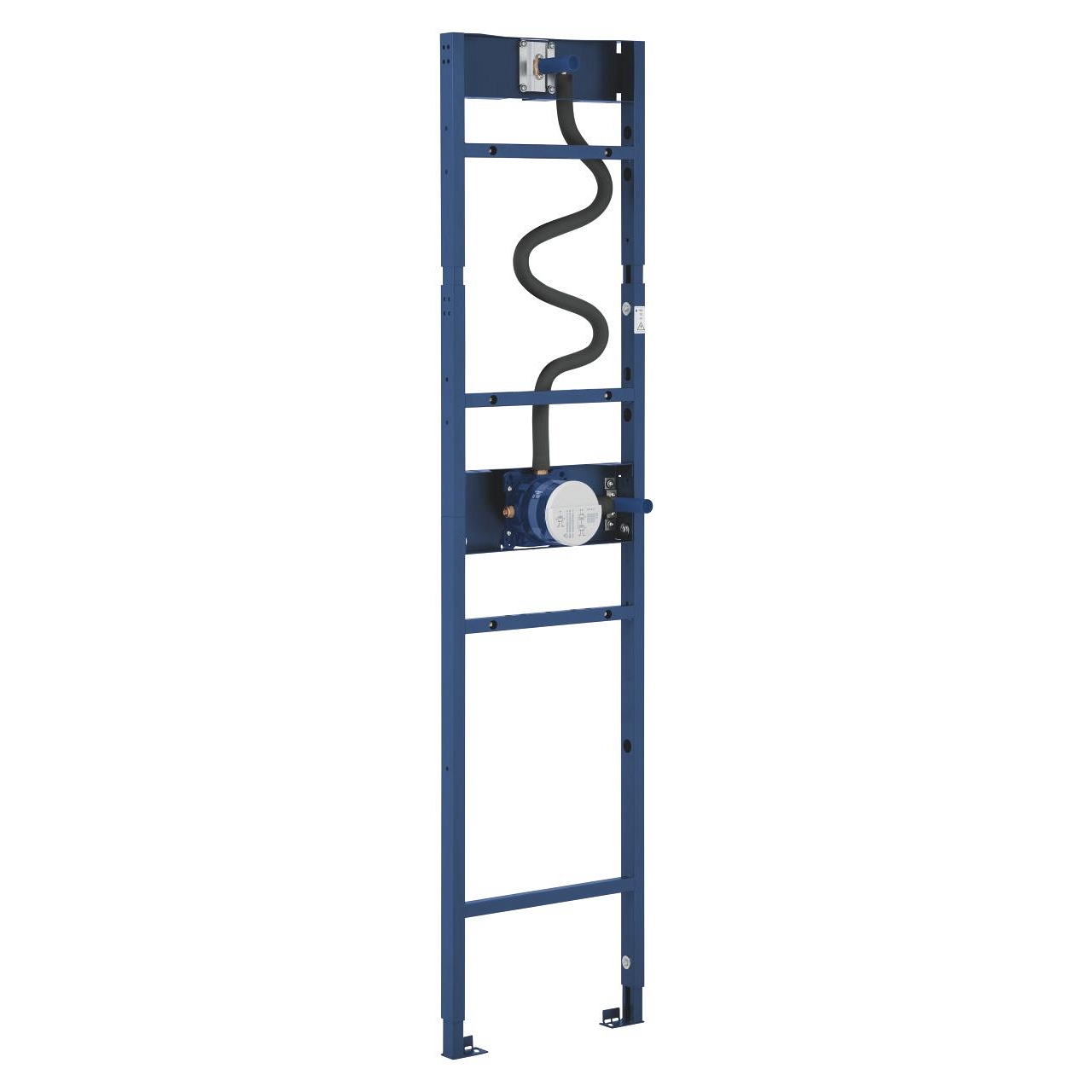

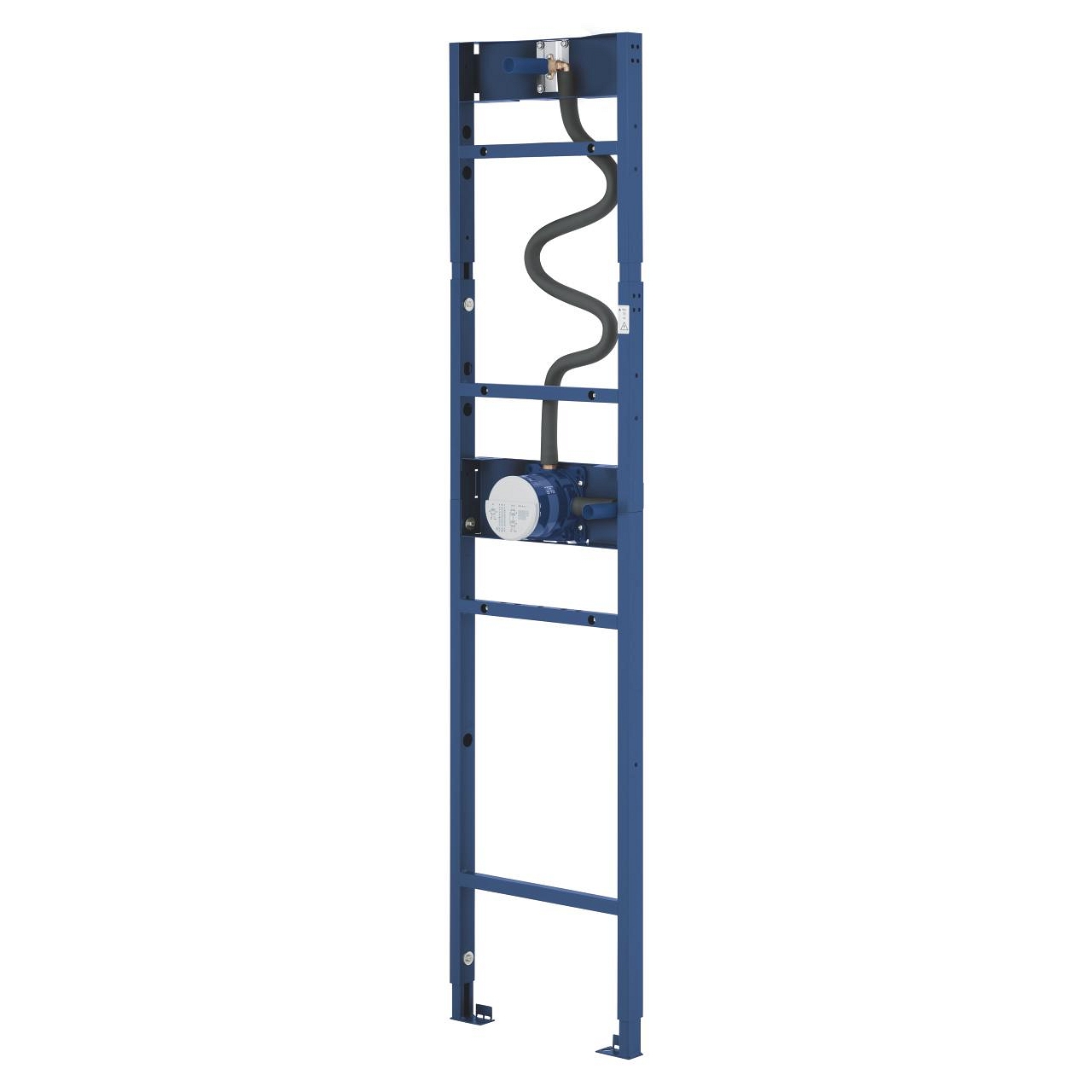

Grohe Rapido Shower Frame for Mono Concealed Shower Installation

Rapido shower frame element for mono concealed shower installation
Easy solution to install a concealed shower system with 2 outlets
Sturdy powder-coated, self-supporting frame
Completely pre-assembled
Suitable for shower installations with one hand shower and a Mono head shower
Pre-mounted rough-in set Grohe Rapido SmartBox (35604)
Pre-mounted wall outlets for hand and head shower
Pre-mounted and insulated mixed water pipes
Suitable for on-the-wall installations or dry-cladding
Depth adjustable
2 inlets below, 1/2″

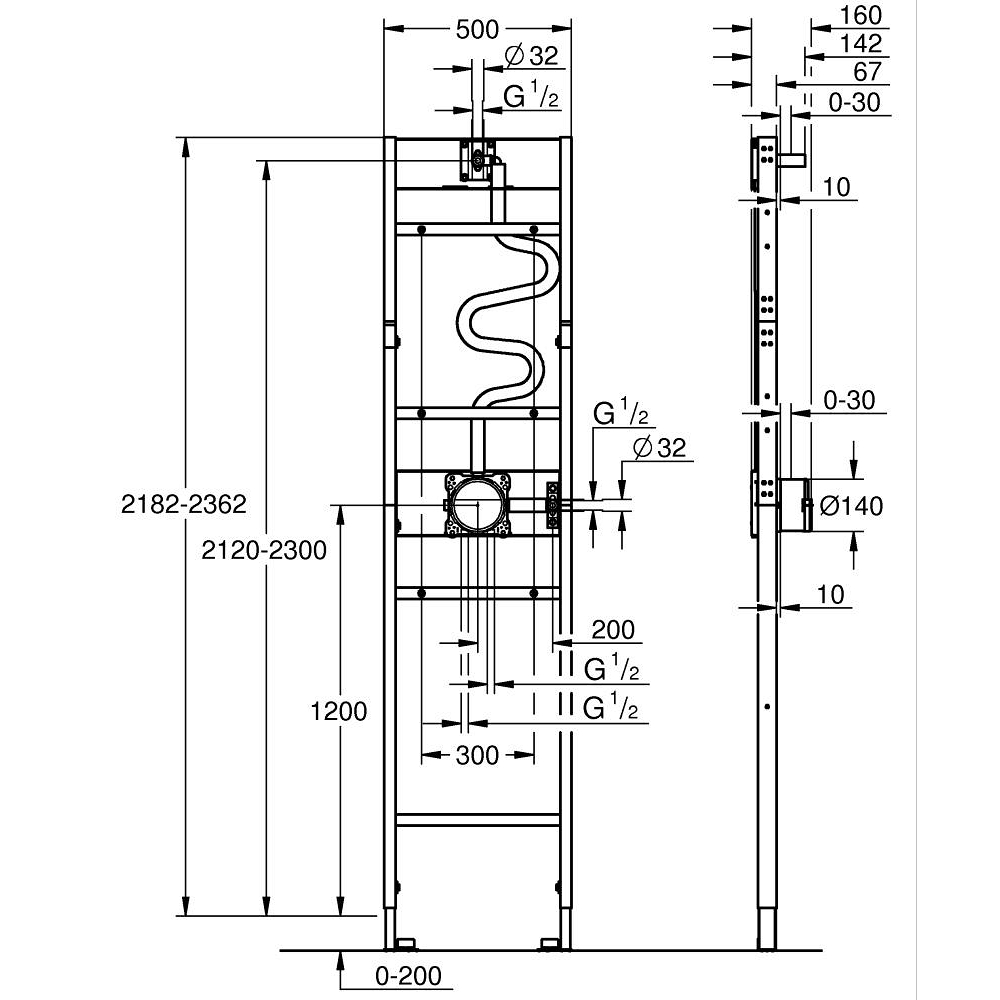

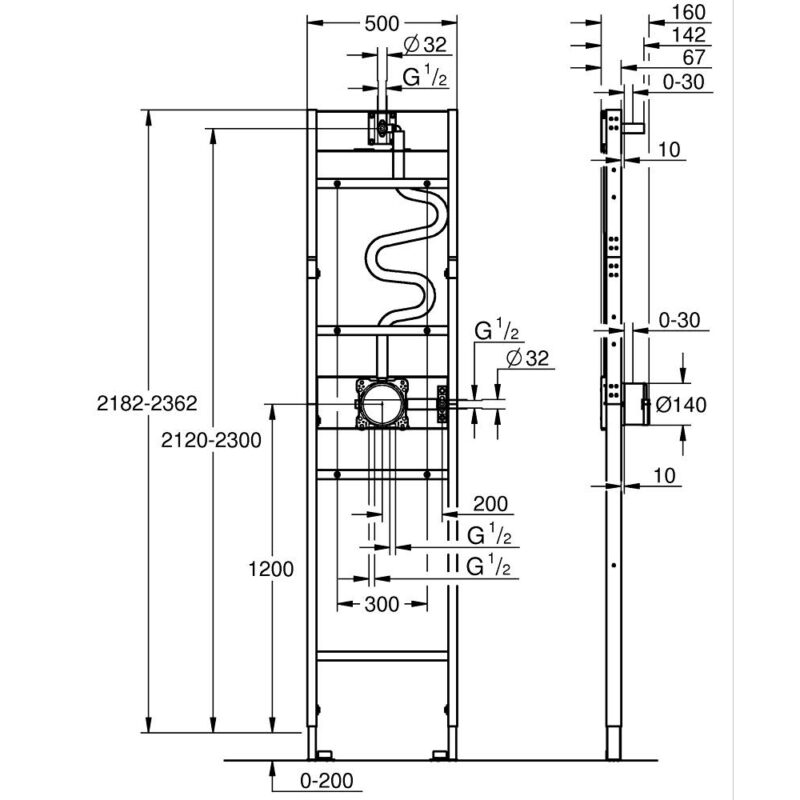

Minimum installation depth (from rough wall to end finish) 77-107mm
Minimum installation depth (from rough wall to frame front) 67mm
Head shower outlet height adjustable by 180mm
Sealing fleeces
Leak test done ex factory
Suitable for concealed 2-function trim sets in combination with Grohe Rapido SmartBox
Suitable for Grohe shower outlet elbows with male connection threads, 1/2″
Suitable for Grohe shower arms with male connection threads, 1/2″
Perfect fit with Grohtherm concealed shower systems 103995 0000 and 103996 0000
For on-the-wall installation, please order wall brackets 103999 9990 (sold separately)
