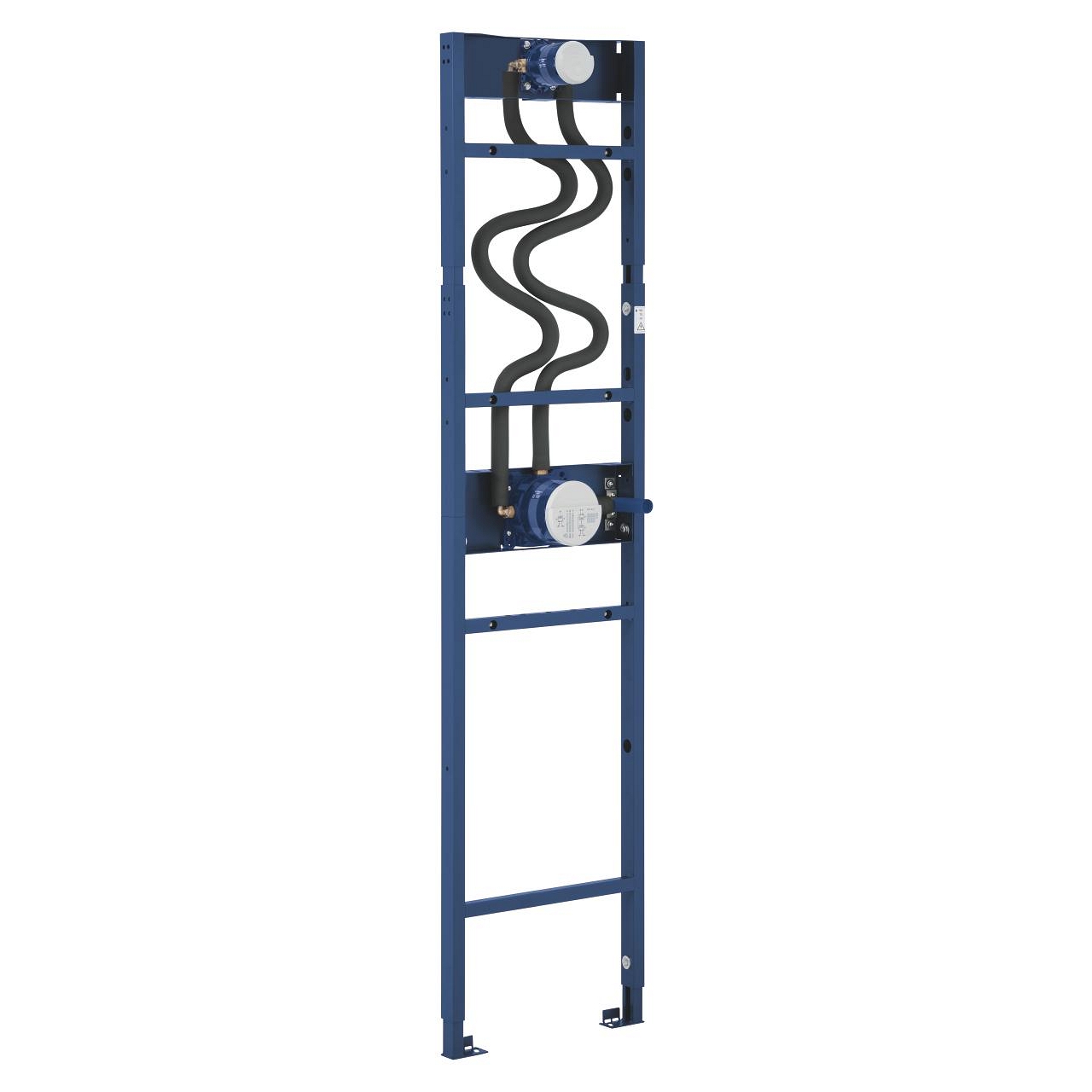

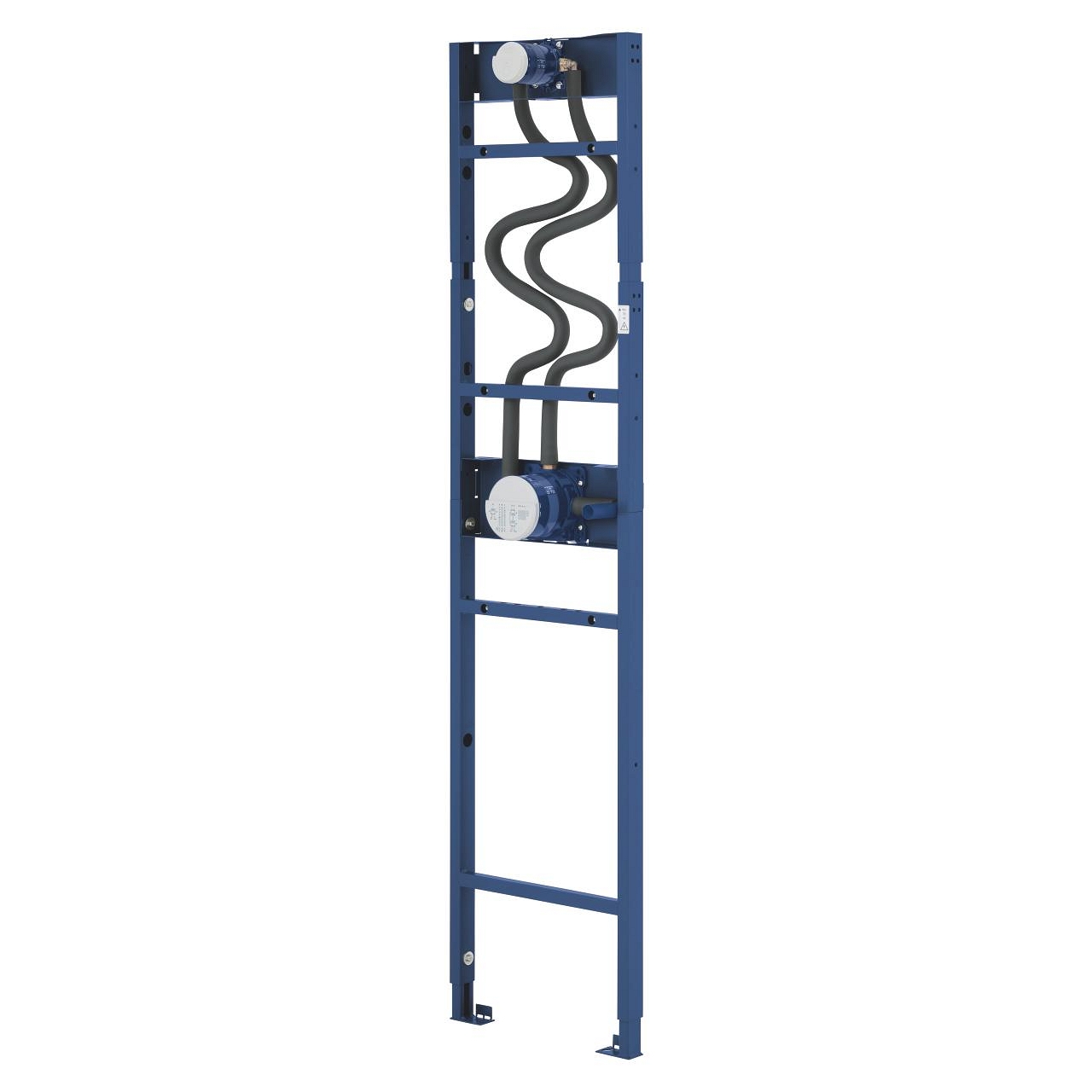

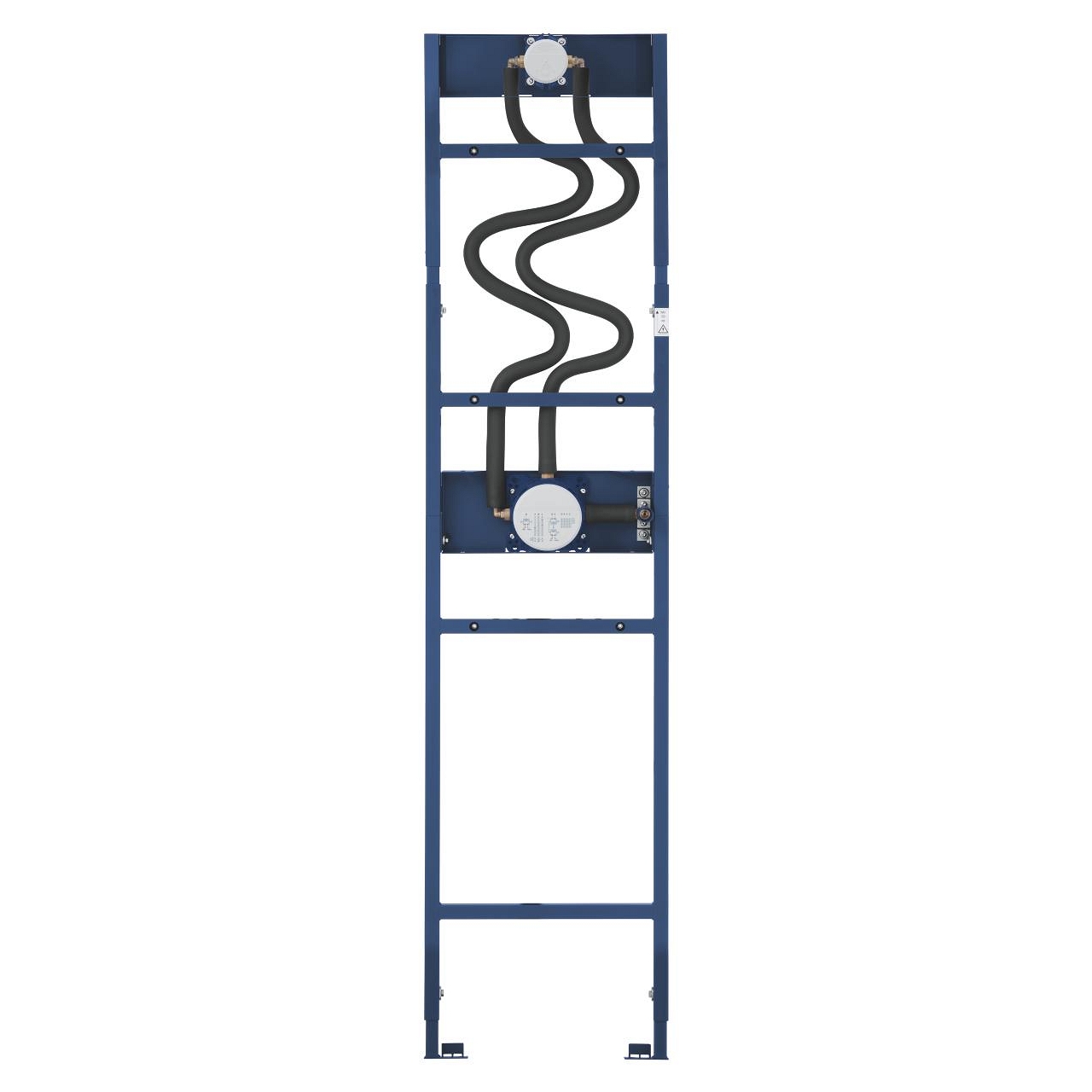

Grohe Rapido Shower Frame for Duo Concealed Shower Installation

Rapido shower frame element for duo concealed shower installation
Suitable for shower installations with one hand shower and a duo spray head shower
Pre-mounted rough-in set Grohe Rapido SmartBox (35604)
Pre-mounted rough-in set 9.5 litre/minute for head shower (107 241 9990)
Pre-mounted wall outlet for hand shower
Pre-mounted and insulated mixed water pipes
Suitable for on-the-wall installations or dry-cladding
Powder coated steel frame, self-supporting
Completely pre-assembled
Depth adjustable
2 inlets below, 1/2″

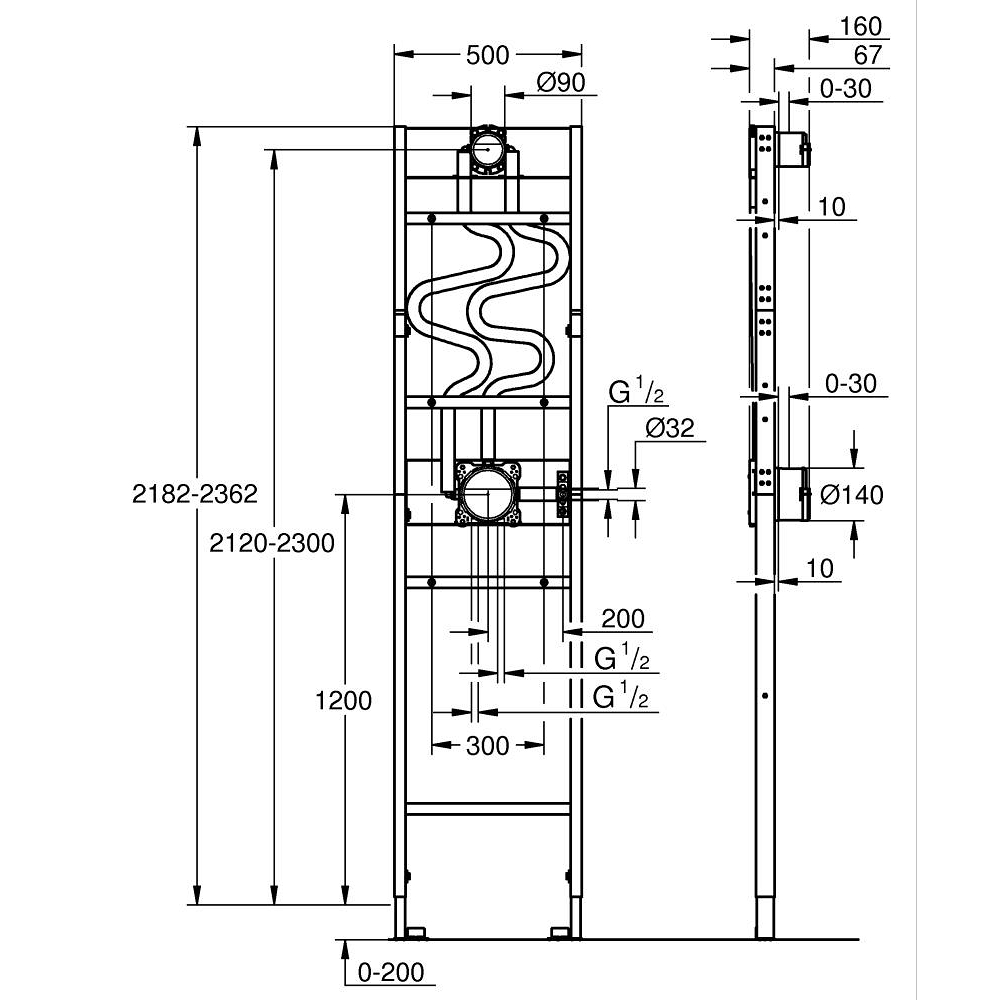

Minimum installation depth (from rough wall to end finish) 77-107mm
Minimum installation depth (from rough wall to frame front) 67mm
Head shower outlet height adjustable by 180mm
Sealing fleeces
Leak test done ex factory
Suitable for concealed 3-function trim sets in combination with Grohe Rapido SmartBox
Suitable for Grohe shower outlet elbows with male connection threads, 1/2″
Suitable for Rainshower SmartActive 310 2-spray head shower with 430mm shower arm
Pfit for Grohtherm concealed shower systems 103997 0000 and 103998 0000
For on-the-wall installation, please order wall brackets 103999 9990 (sold separately)
