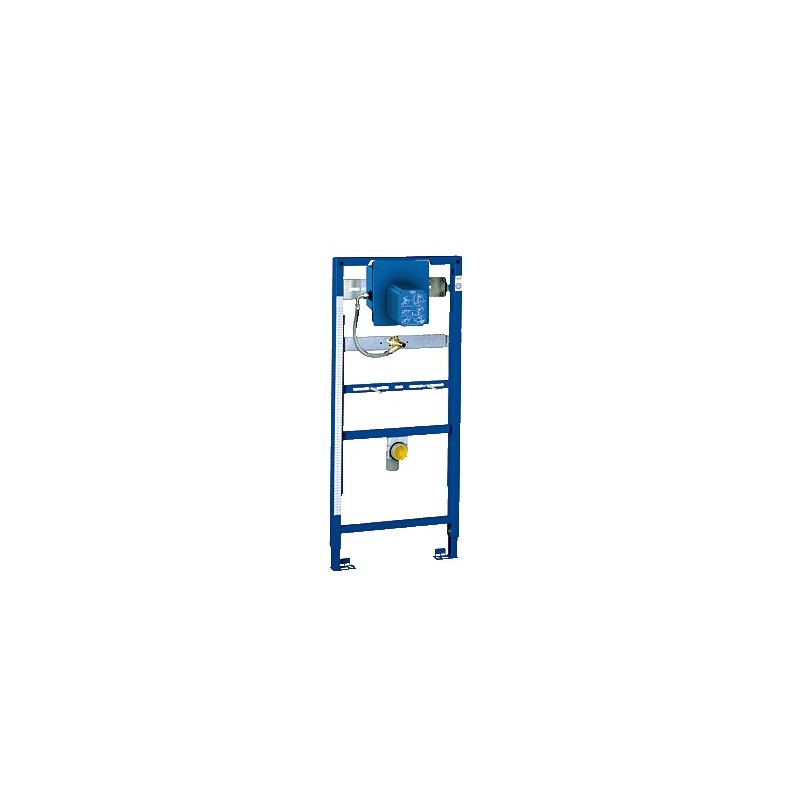

Grohe Rapid SL for Urinal 38786

Rapid SL for urinal
with Grohe Rapido U
for manual actuation or Tectron
infra-red electronic 6 V or 230 V

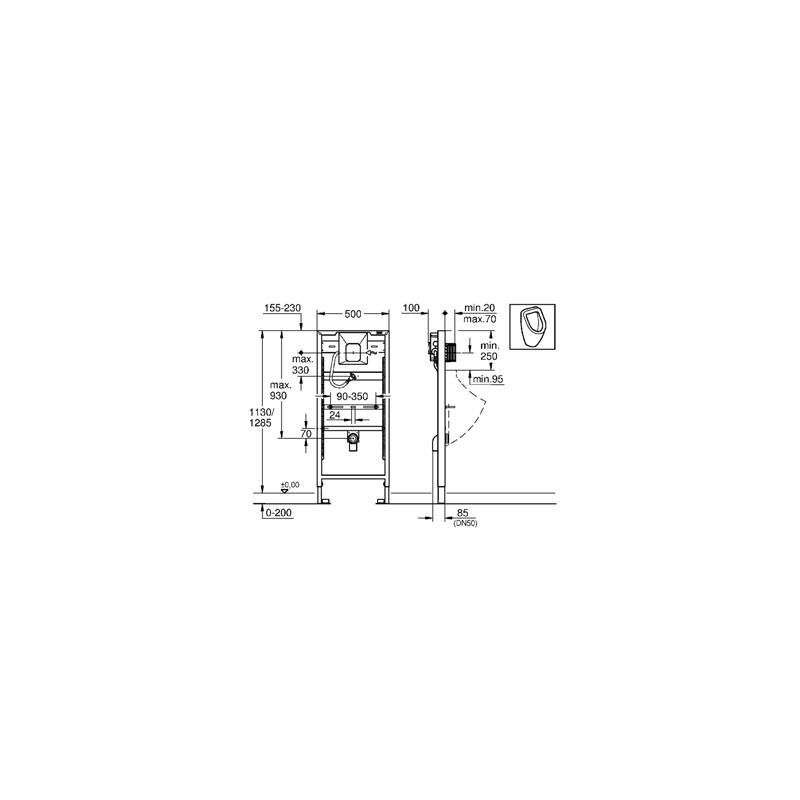

1.13 and 1.30 m installation height
for on-the-wall installations or studded walls
powder coated steel frame, self-supporting
for dry-cladding, completely pre-assembled
height adjustable fitting connections
for single or series installation
quick adjustment, lockable
fixing material
TUV approved
PE-outlet bend 50 mm diameter
inlet connection and inlet connecting set
fixing bolts M8, with fixing device
for the ceramic
water group with stop valve
flow pressure min 0.5 bar
operating pressure max 10 bar
flush aid
functional unit checked ex factory
water supply connections 1/2″ outer threat
connecting box for mains supply 230 V
installation box with gasket
Shortable inspection shaft including protection during construction phase for sets for final installation
with dimensions 116 x 144 mm
without front wall brackets 38 558 00M (pair)
