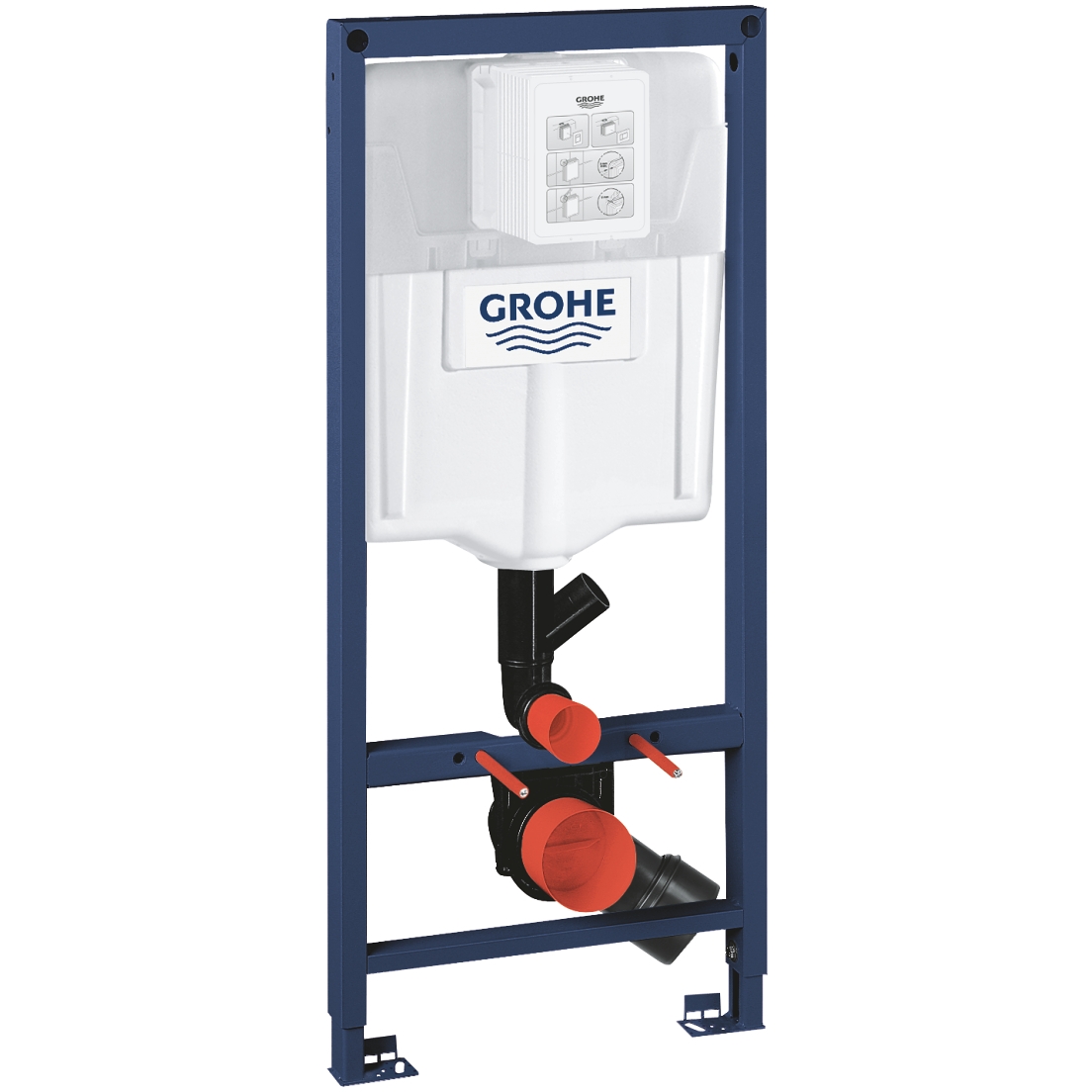

Grohe Rapid SL Element for WC 1.13m for External Odour Extraction 39002

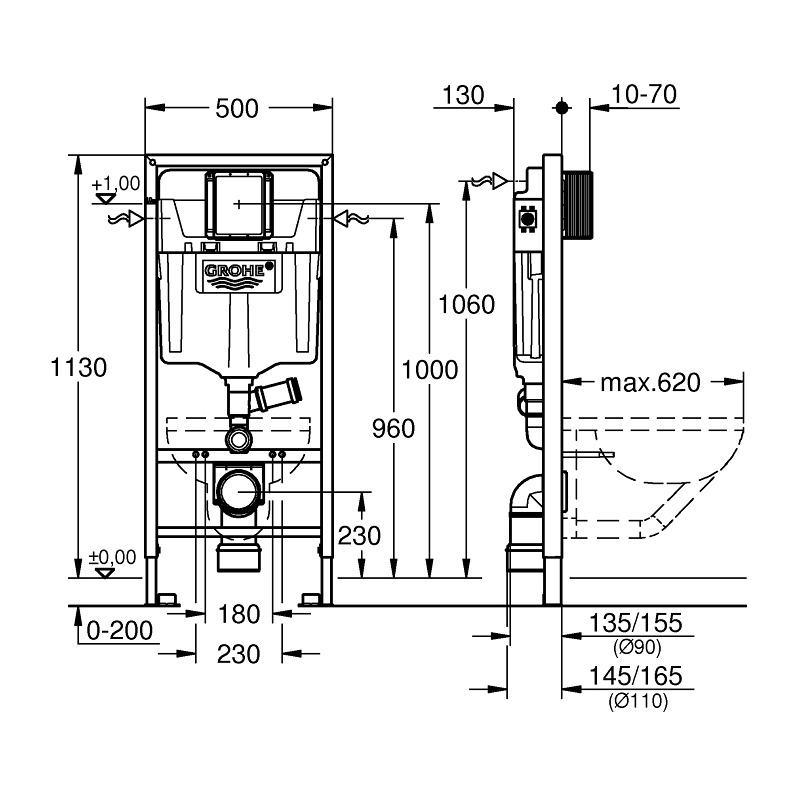

Rapid SL Element for WC, 1.13 m installation height, for external odour extraction
With flushing cistern GD 2 , 6 l – 9 l
With flush pipe for external odour extraction
For on-the-wall installations or studded walls
Powder coated steel frame, self-supporting
For dry-cladding, completely pre-assembled
With fixed connections
Quick adjustment, lockable
Fixing material
2 WC fixing bolts
Fixing device for ceramic
WC ceramics with small bearing area (< 205 mm) require additional accessory 38779 000
Distance of fixing bolts 180/230mm
PP outlet bend diameter 90mm
Depth adjustable
PP reducer diameter 90/110mm
Inlet and outlet connecting set
Flushing cistern GD 2, 6 – 9 l, containing following features: factory set 6 l and 3 l
Flush pipe with connection for odor extraction 50mm
Pneumatic discharge valve offering 2 modes of operation: dual flush or single flush
Water supply from left/right or back
Low noise (group I acc. to German Noise Specification)
Insulated against condensation
1/2″ water supply connection including integrated angle valve and push fit flexible hose union
No tools required for the installation of the inspection shaft incl. protection during construction phase
Inspection shaft for vertical or horizontal use allows for flush plate to be installed vertically or horizontally
For on-the-wall installation please order wall brackets 38558 00M (sold separately)
For mounting of small flush plates please order revision shaft 40911 000 (sold separately)
