Grohe Rapid SL Element for WC 1.13m Installation Height 38539

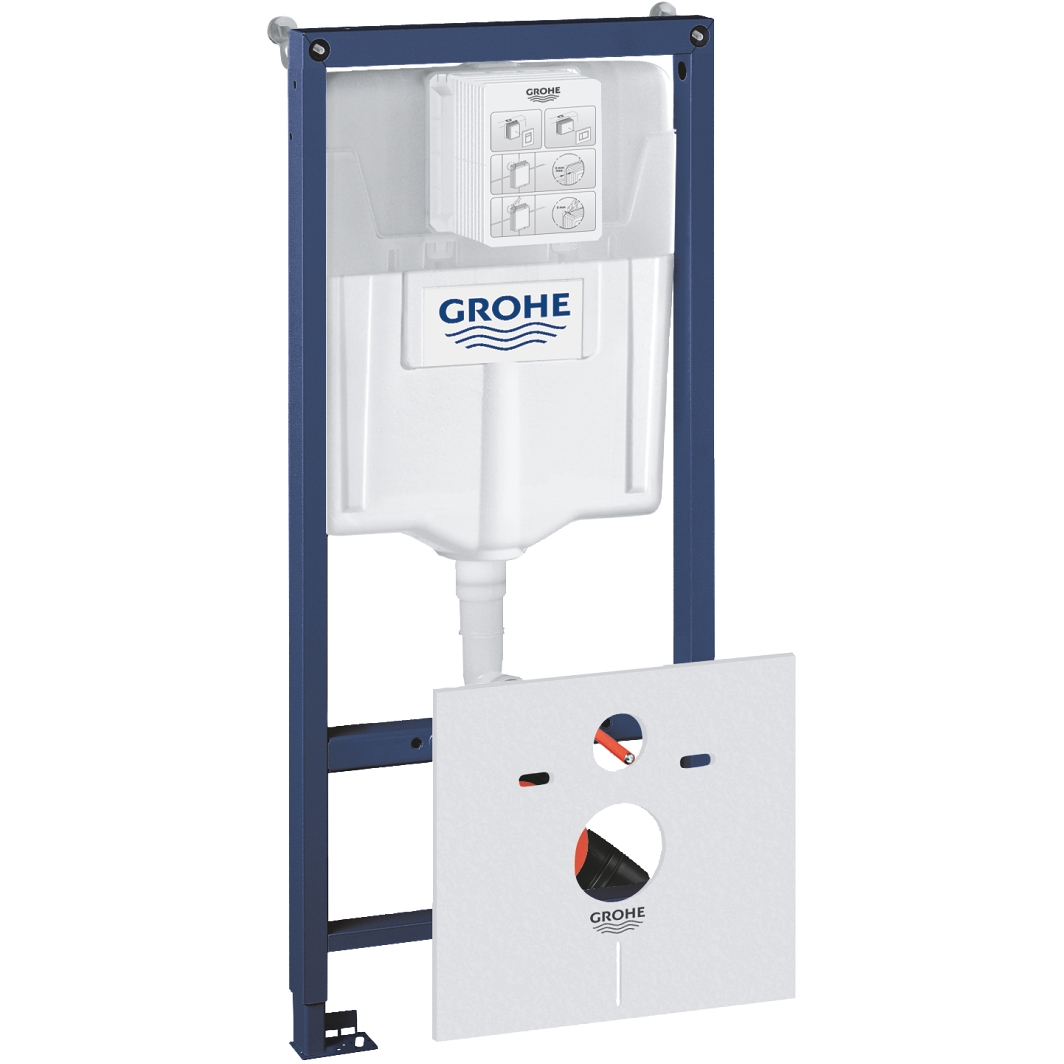

Rapid SL Element for WC, 1.13 m installation height
Grohe Rapid SL installation system with water-saving and noise reducing features
3-in-1 installation set for wall-hung toilets
With flushing cistern GD 2 , 6 l – 9 l
For on-the-wall installations or studded walls
Powder coated steel frame, self-supporting
For dry-cladding, completely pre-assembled
With fixed connections
Quick adjustment, lockable
Fixing material
2 WC fixing bolts
Fixing device for ceramic
WC ceramics with small bearing area (< 205 mm) require additional accessory 38779 000
Distance of fixing bolts 180/230mm
Outlet bend 90mm
Depth adjustable
Reducer 90/110mm
Inlet and outlet connecting set
Flushing cistern GD 2, 6 – 9 l, containing following features: factory set 6 l and 3 l
Pneumatic discharge valve offering 2 modes of operation: dual flush or single flush
Water supply from left/right or back
Low noise (group I acc. to German Noise Specification)
Insulated against condensation
1/2″ water supply connection including integrated angle valve and push fit flexible hose union
No tools required for the installation of the inspection shaft including protection during construction phase
Inspection shaft for vertical or horizontal use allows for flush plate to be installed vertically or horizontally
Including wall brackets 38 558 00M for on-the-wall installation
Including WC set for noise protection (37131 000)
For mounting of small flush plates please order revision shaft 40911 000 (sold separately)
