Cistermiser Direct Flush Discreet Urinal Sensor Valve

Direct Flush Discreet infrared sensor mains-fed urinal flush valve, for installations with rear access to the wall cavity

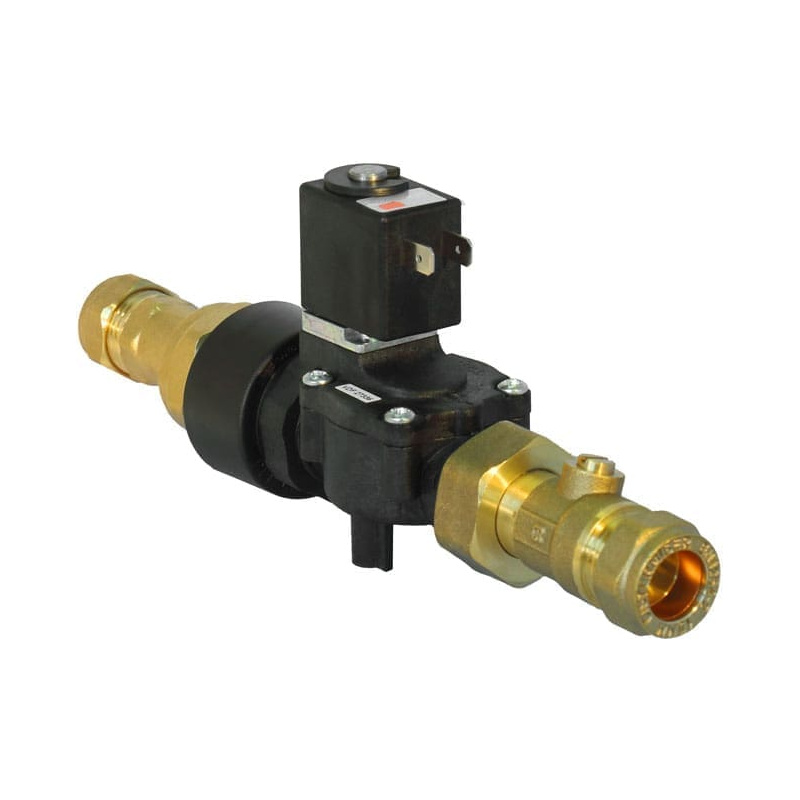

Valve and power supply mounted behind the panel, compact sensor above the urinal

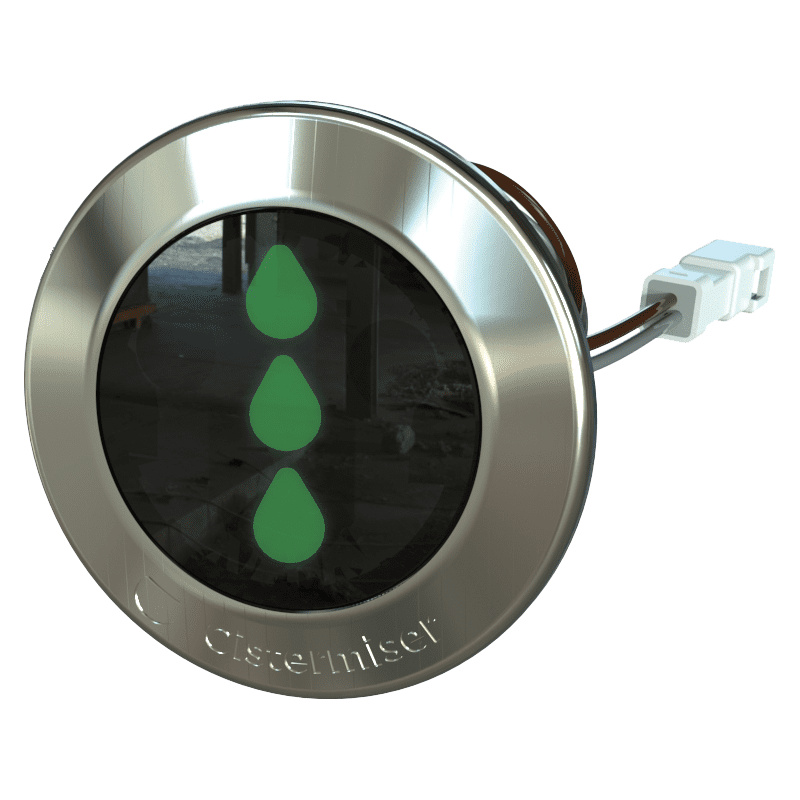

Sensor in polished stainless steel
Flushes the individual urinal after use, removing the need for an auto-flush cistern
Integral DC pipe interrupter gives fluid category 5 back-siphonage protection for direct mains connection
Mains and battery power options supplied as standard, low battery warning
Connection: 1/2″ BSP (15mm)
Mains water pressure: 0.5 to 6 bar
Sensor range: approx. 50cm
Flush time: 7 seconds, flush delay: 2 seconds
Battery life: approx. 2 years in typical use
Optional Multi-Product Power Supply Unit powers up to 20 valves from one fused spur

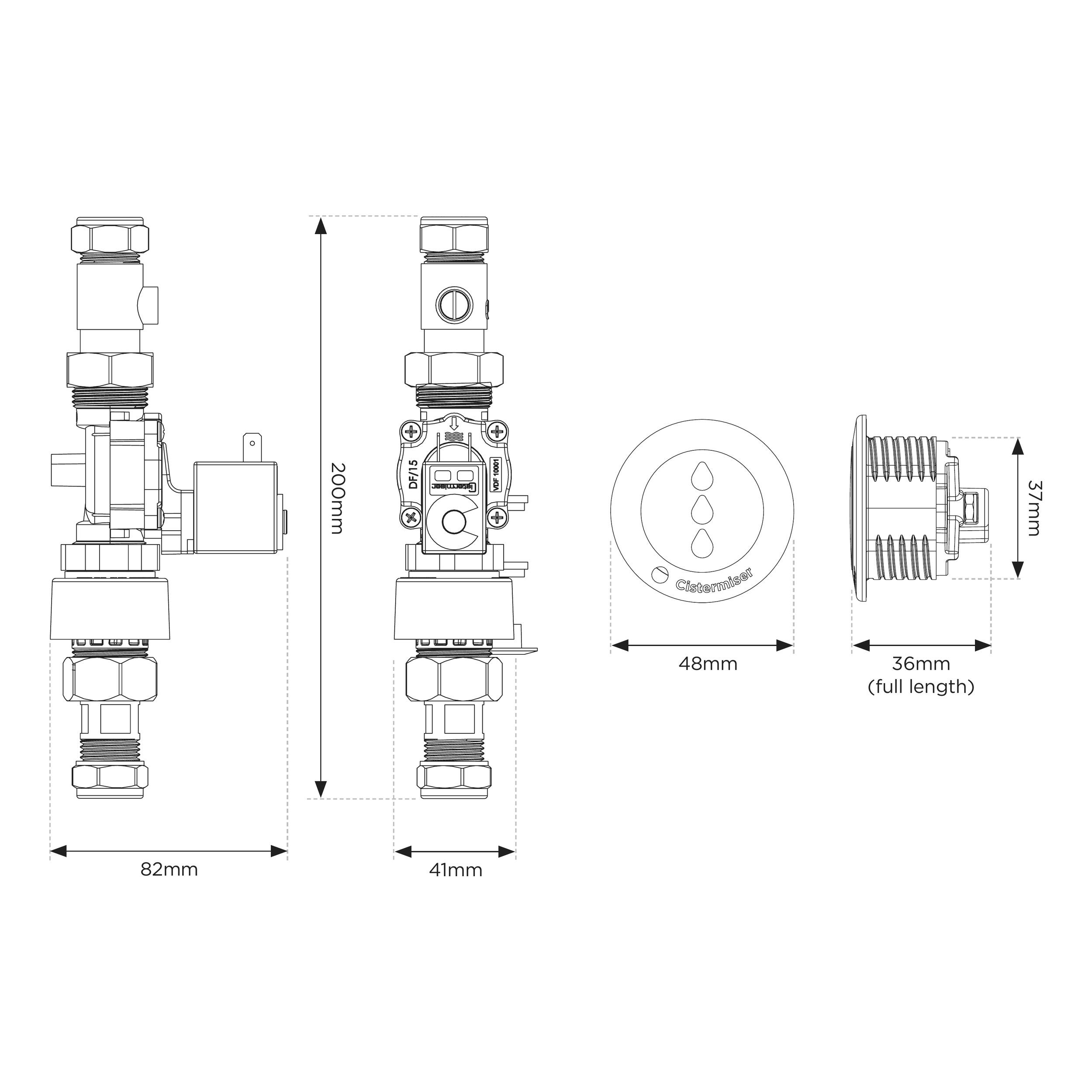

Valve: 41mm W x 200mm H x 82mm D
Sensor: 48mm W x 48mm H x 27mm D
