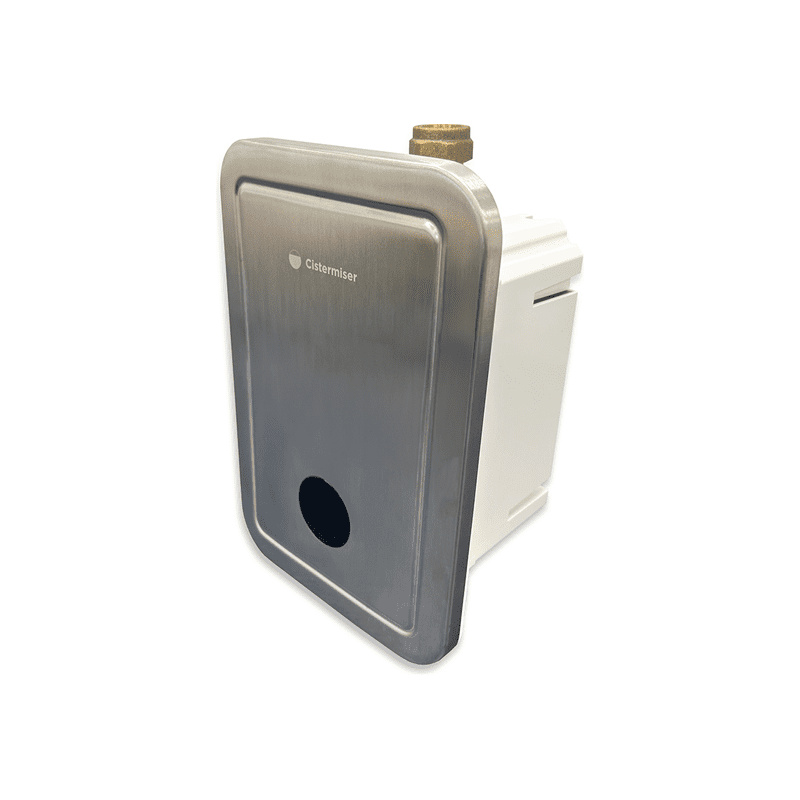

Cistermiser Direct Flush Accessible Urinal Sensor Valve

Direct Flush Accessible infrared sensor mains-fed urinal flush valve with valve, power and sensor in one compact housing, for installations without rear access
Brushed chrome sensor fascia removes for servicing and battery replacement in place
Mounts on a concealed structural wall, frame or exposed wall panel
Flushes the individual urinal after use, removing the need for an auto-flush cistern
Integral DC pipe interrupter gives fluid category 5 back-siphonage protection for direct mains connection
Mains and battery power options supplied as standard, low battery warning
Connection: 1/2″ BSP (15mm)
Mains water pressure: 0.5 to 6 bar
Sensor range: approx. 50cm
Flush time: 7 seconds, flush delay: 2 seconds
Battery life: approx. 2 years in typical use
Optional Multi-Product Power Supply Unit powers up to 20 valves from one fused spur

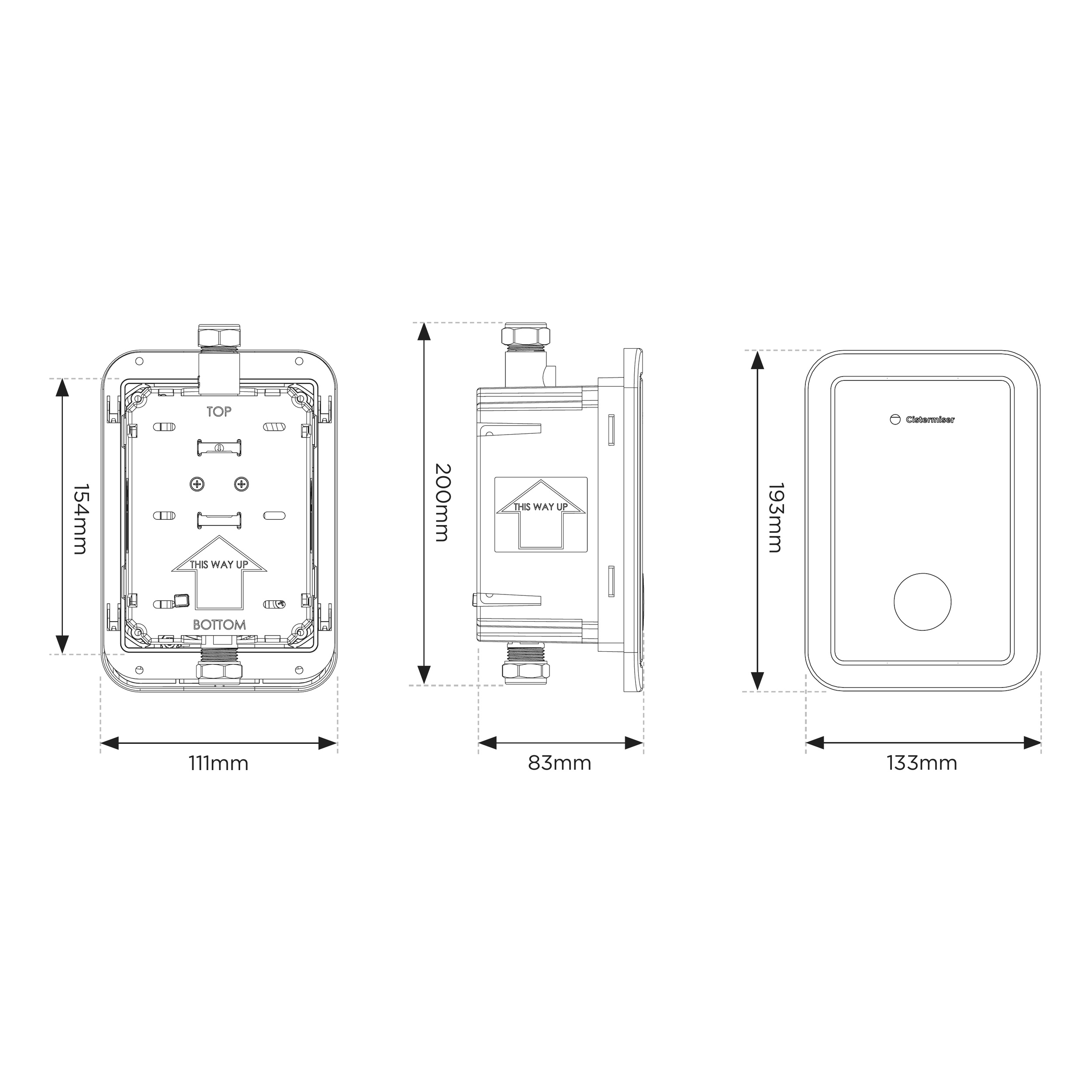

External fascia: 133mm W x 193mm H x 83mm D
