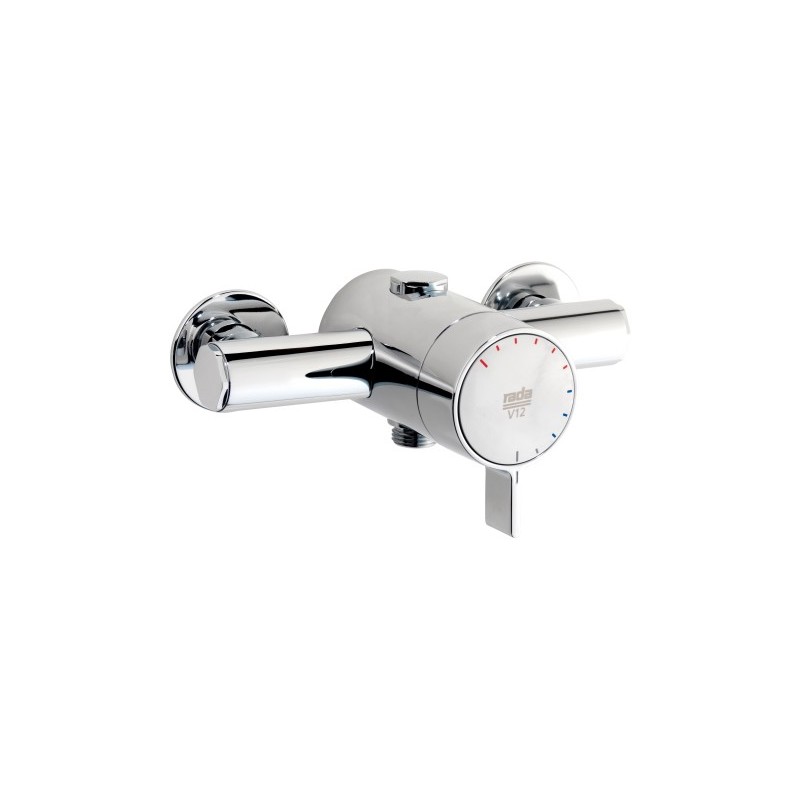

Rada V12 130 Surface Mounted Thermostatic Shower Valve

Rada V12 130 Thermostatic Shower Valve Exposed
Surface mounted thermostatic shower valve certified to TMV3 performance
Buildcert TMV3 Scheme approved
Single lever sequential operation off-cold-warm
Light touch control complemented by easy to understand graphics to address the needs of all users, irrespective of age or ability

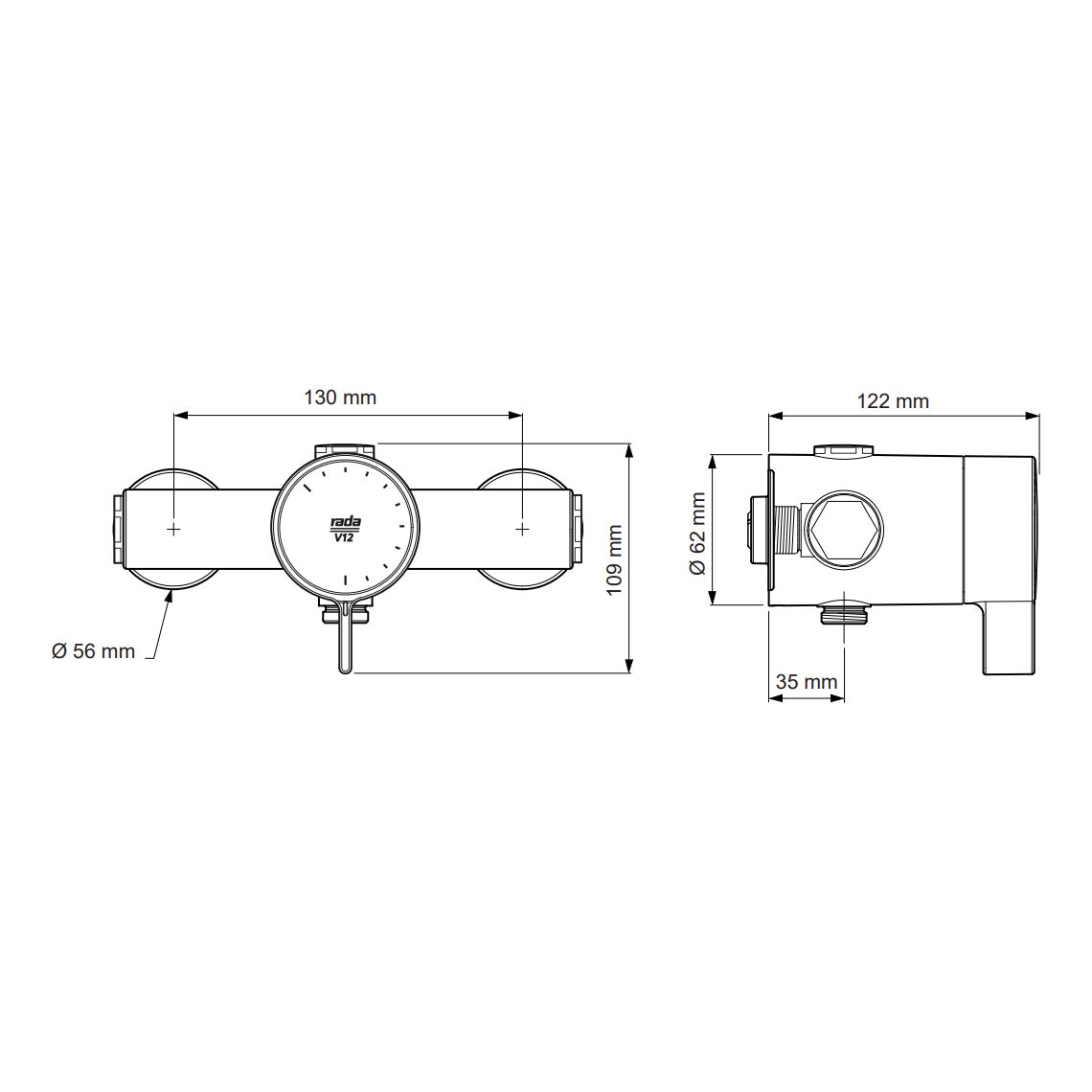

Straight forward retrofit for installations with 130mm inlet centres e.g. Rada Meynell V8
Robust construction to withstand heavy usage in the commercial environment
Includes cartridge, check valves, filters and optional flow regulators
WRAS approved
Easy access to filters for servicing
Dual outlet body allows easy installation with top or bottom outlet
Large area inlet filters are accessible from the elbow with minimum disturbance
Temperature range from cold to preset maximum
Thermostatic control +/- 1°C within the range 35°C – 45°C
Minimum pressure 0.1 bar
Maximum pressure 5.0 bar
For optimum operation the inlet pressures should be nominally equal
