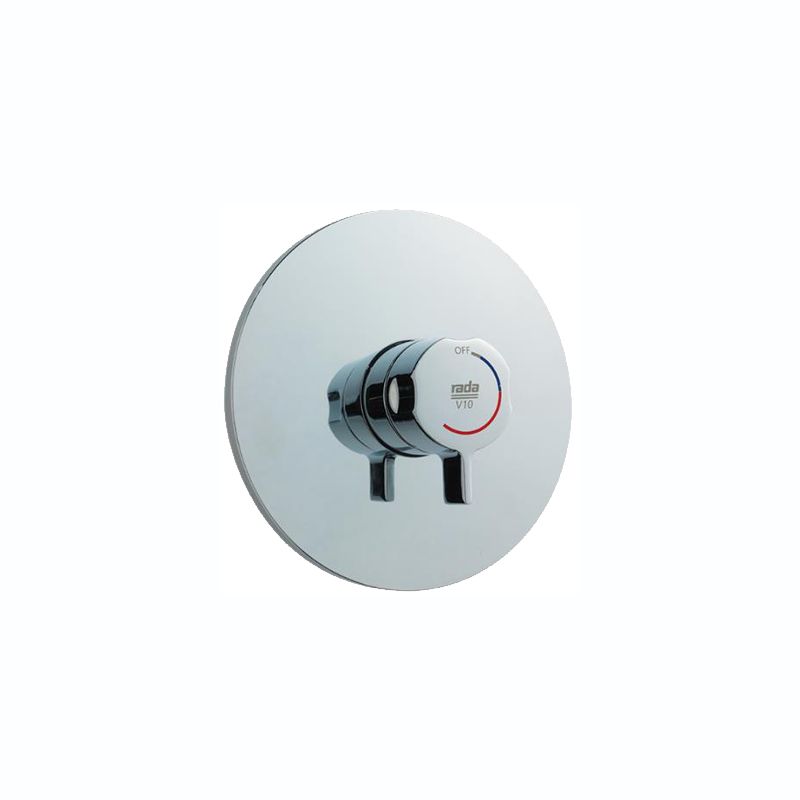

Rada V10 Concealed Thermostatic Shower Valve

Rada V10 Concealed Thermostatic Shower Valve
TMV2 approved concealed, single sequential thermostatic shower valve suitable for commercial and semi-domestic applications
Buildcert TMV2 Scheme approved
Single sequential operation off-cold-warm
Easy grip handle complete with durable, clear graphics
Robust construction to withstand heavy usage in public areas
Optional 6 l/min flow regulator for increased water saving (9 l/min flow regulator is also supplied)
WRAS approved
Supplied complete with integral strainers
Thermostatic cartridge provides extended service-free reliability, protected by integral inlet filters
Inlets 15mm compression
Outlet 1/2″ BSP Flat Face / 15mm Compression
Standard connections: hot – left, cold – right, outlet – bottom or top
Single sequential control when rotated initially opens the valve, then increases temperature from cold to a pre-set maximum
Chrome Plated DZR Brass body
Chrome Plated Zinc Die Casting lever
Dynamic supply pressure: Minimum 0.15 Bar, Maximum 5.0 Bar
For optimum operation, inlet pressures should be nominally equal

Technical Datasheet
