Rada Sense Digital Mixing Valve Shower Kit T3

Rada Sense T3 Digital Mixing Valve Shower Kit
Concealed digital mixing valve for shower, offering non-touch flow and temperature control, programmable maximum, minimum and default temperatures, duty flush and thermal disinfection with datalogging capabilities

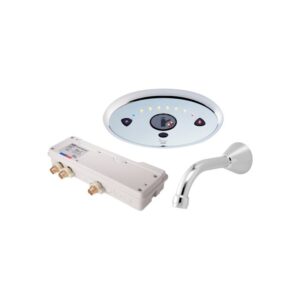

Supplied with vandal resistant shower fitting for connection to concealed pipe work
Health and performance of taps maintained through remote monitoring
Minimise risk of microbial growth through thermal disinfection
Water management optimised with duty flushing
Minimise the risk of cross infection with non touch controls
Help achieve handwashing best practice with programmable run times
1/2″ BSP connections
Rada Sense app allows for simple control and programming of every aspect of functionality
Buildcert TMV3 Scheme approved
WRAS approved
Remotely located valve (up to 3m)
Digital mixing valve for commercial use
No-touch ON/OFF and temperature control
Programmable flow times and temperatures
Programmable “duty flushing”
Valve information and usage data
T-logic™ digital intelligence
Maximum static pressure: 10 bar (1000 kPa)
Minimum pressure loss: 0.2 bar (20 kPa)
Hot and cold pressure should be nominally equal
Supply Voltage: 100 – 240 V RMS 50 – 60 HZ
Maximum load: 20 W at 12 V DC

Technical Datasheet
