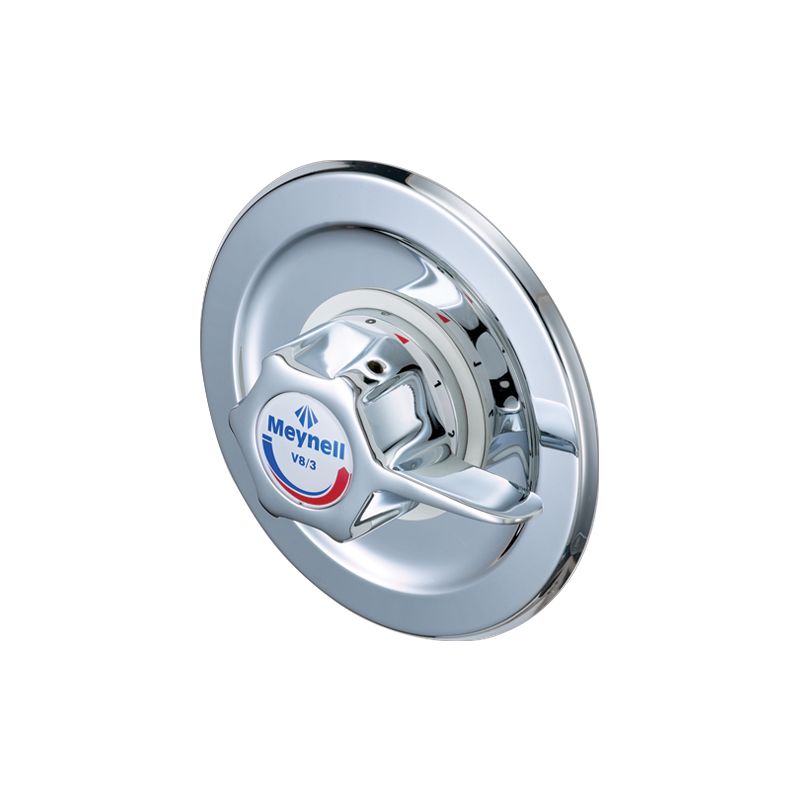

Rada Meynell V8/3 BL Single Sequential Thermostatic Mixing Valve

1/2″ built-in single sequential thermostatic mixing valve with long lever for less abled use
Long lever version for disabled use
Reliable thermostatic performance
Safe thermostatic shutdown in less than 2 seconds
Supplied with integral strainers
Buildcert TMV3 Scheme approved
Buildcert TMV2 Scheme approved
WRAS approved
High flow rates at low pressures
Single sequential control for ease of use
Operated via a single sequential control which when rotated, initially opens the valve, then increases the temperature from cold through to a pre-settable
maximum temperature stop
DZR brass chrome plated body
Factory preset maximum outlet temperature: 42°C
Minimum temperature differential between hot inlet and preset outlet temperature: 10°C
Optimum temperature control range: 35°C – 45°C.
Minimum maintained pressure 0.1 bar
Maximum static pressure: 10 bar
Maximum pressure loss ratio: 10:1 (in favour of either supply)
Inlets: 15 mm compression.

Technical Datasheet
