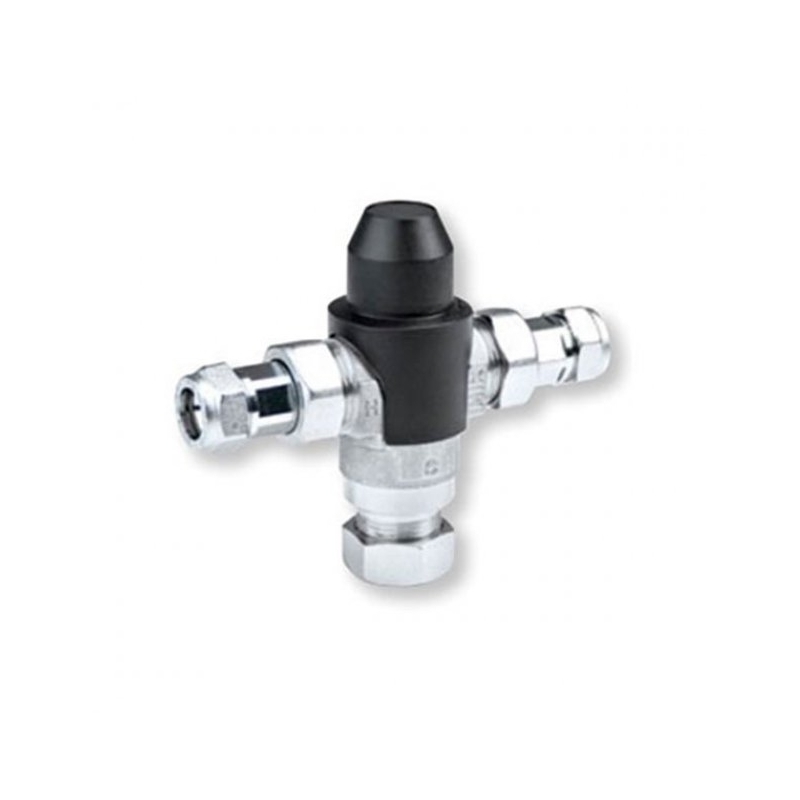

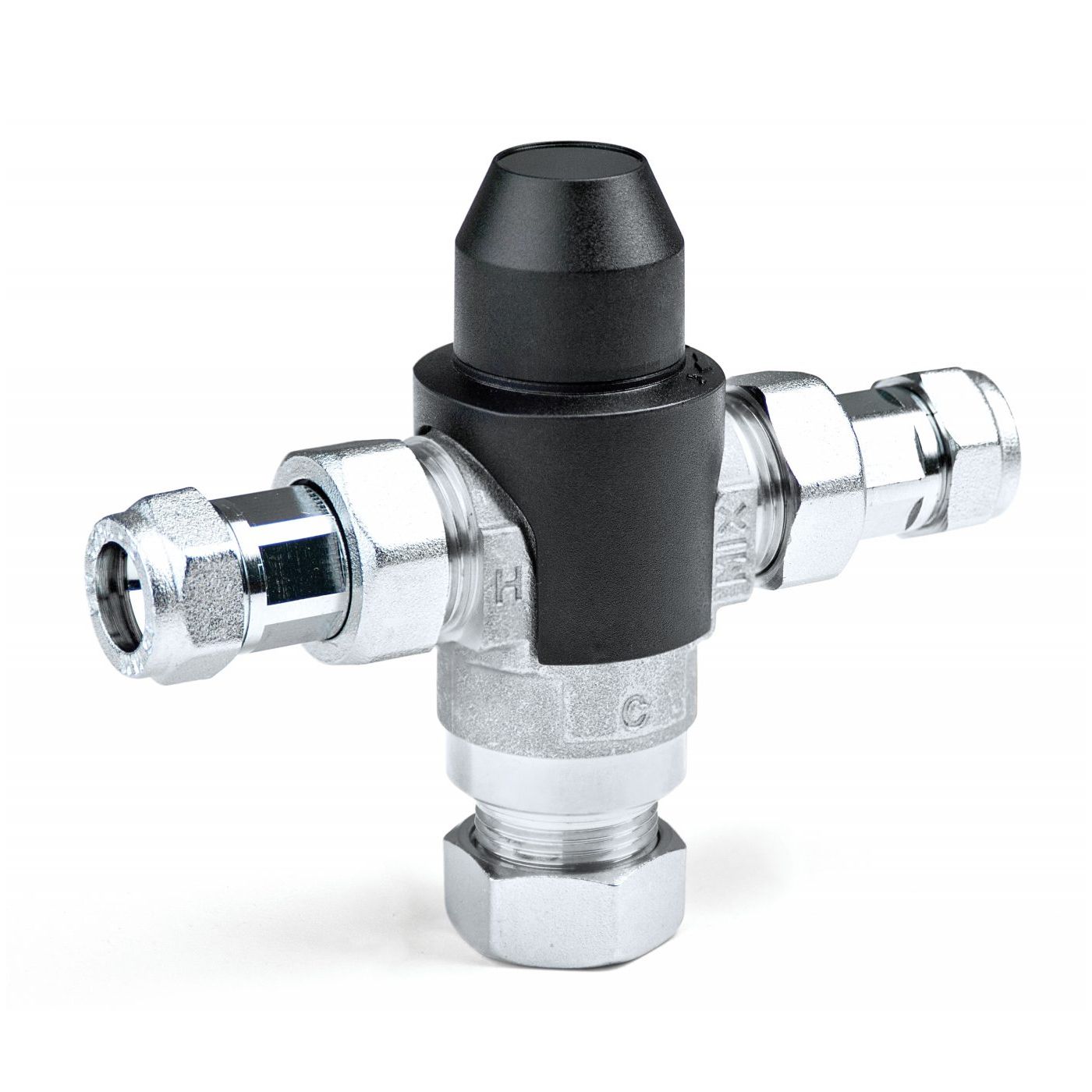

Inta L Mix 15mm T Pattern Thermostatic Mixing Valve

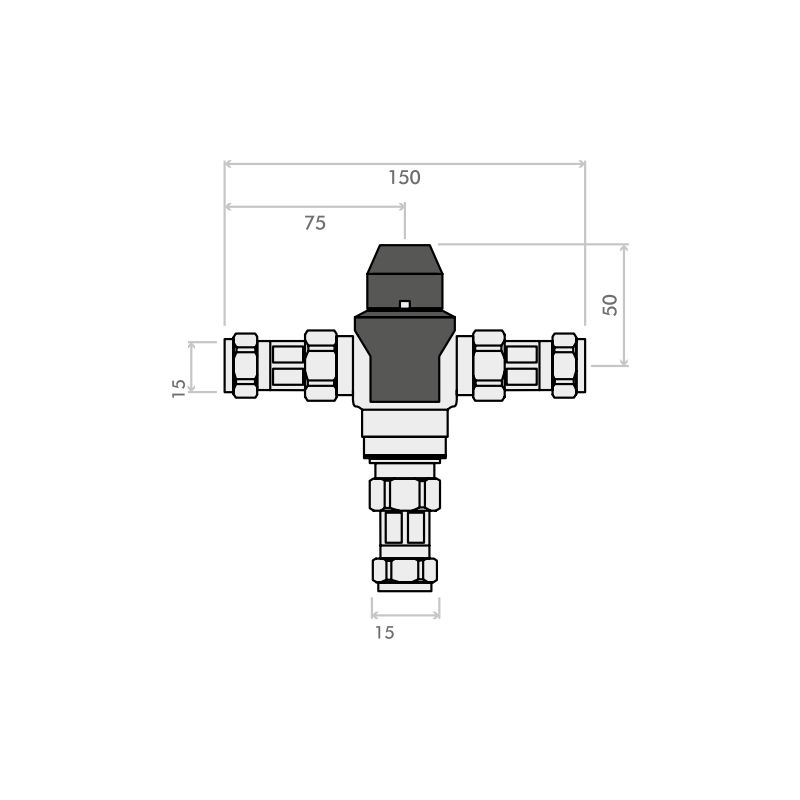

15mm T-pattern L Mix Thermostatic Failsafe Mixing Valve
Designed primarily for single outlet use
Element that controls the temperature of the mixed water discharging from the valve works proportionally on both hot and cold water supplies in order to maintain the temperature of the mixed water discharged
Thermostatic control
Anti-scald fail-safe technology
Suitable for high and low pressure
L pattern inlet arrangement to reduce installation time
Temperature adjustment range 30°C – 50°C
Temperature stability +/- 2°C
Maximum inlet temperature 85°C
Maximum operating pressure 10.0 bar static
Minimum inlet pressure 0.2 bar dynamic
Minimum temperature differential to achieve failsafe 10°C
Maximum pressure inlet differential 5:1
