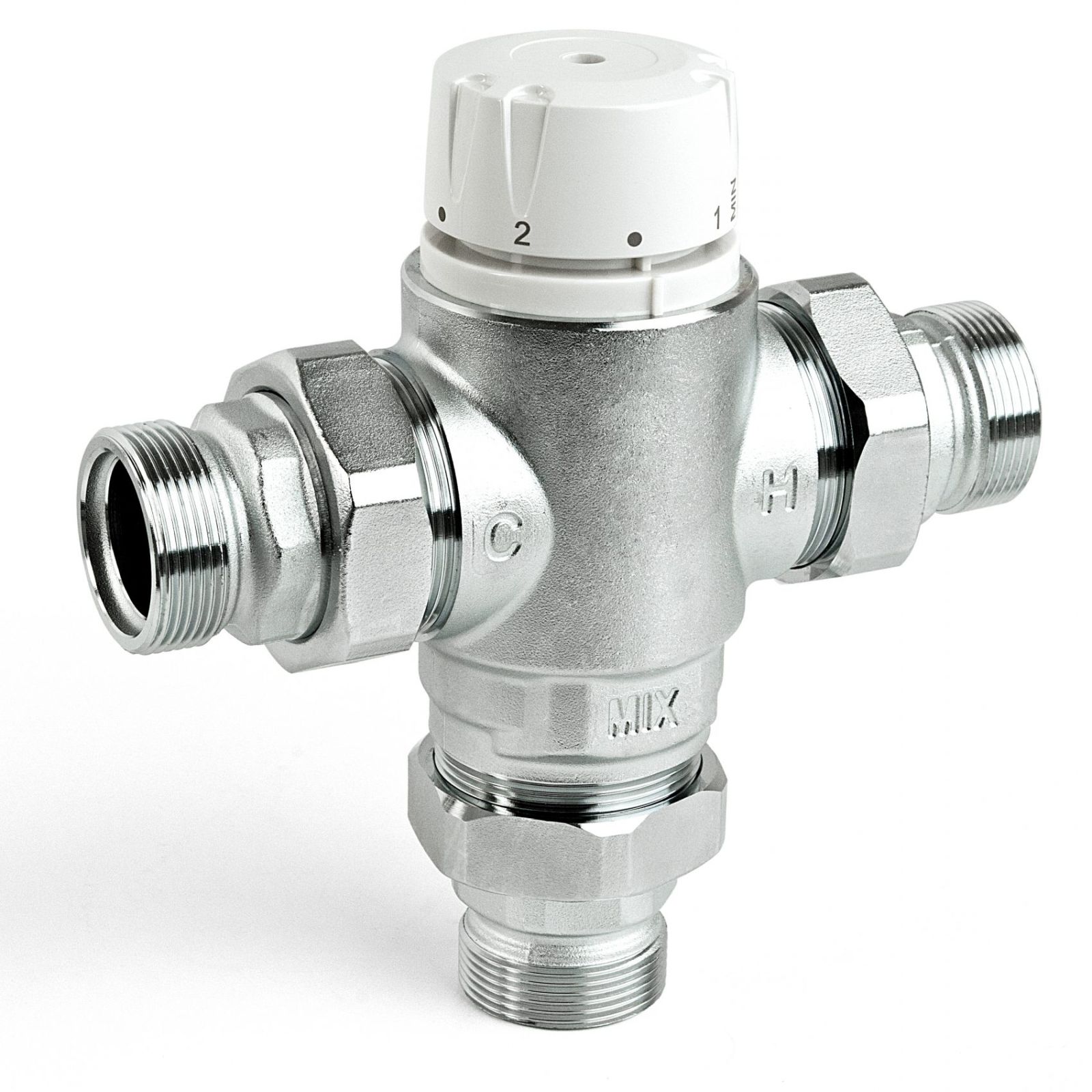

Inta Intamix 2″ Male BSP Thermostatic Mixing Valve

Intamix Pro 2″ Male BSP Thermostatic Mixing Valve
Designed for use in applications where a high volume of water is required at the outlet, such as shower blocks and centralised mixing
Provides a high volume of water at a stable temperature
Thermostatic protection
Tamper proof head
Single piece thermostatic cartridge construction
High flow rate, low pressure drops
Adjustable outlet temperature
Temperature stability +/- 2°C
Minimum inlet dynamic pressure 0.2 bar
Maximum inlet static pressure 10.0 Bar
Maximum inlet pressure differential 2:1
Outlet temperature adjustment 30°C-65°C
Minimum 10°C differential temperature between the hot inlet and mixed outlet temperatures to achieve stable operation
