Geberit Urinal Flush Control Mains Sigma01 Gloss Chrome

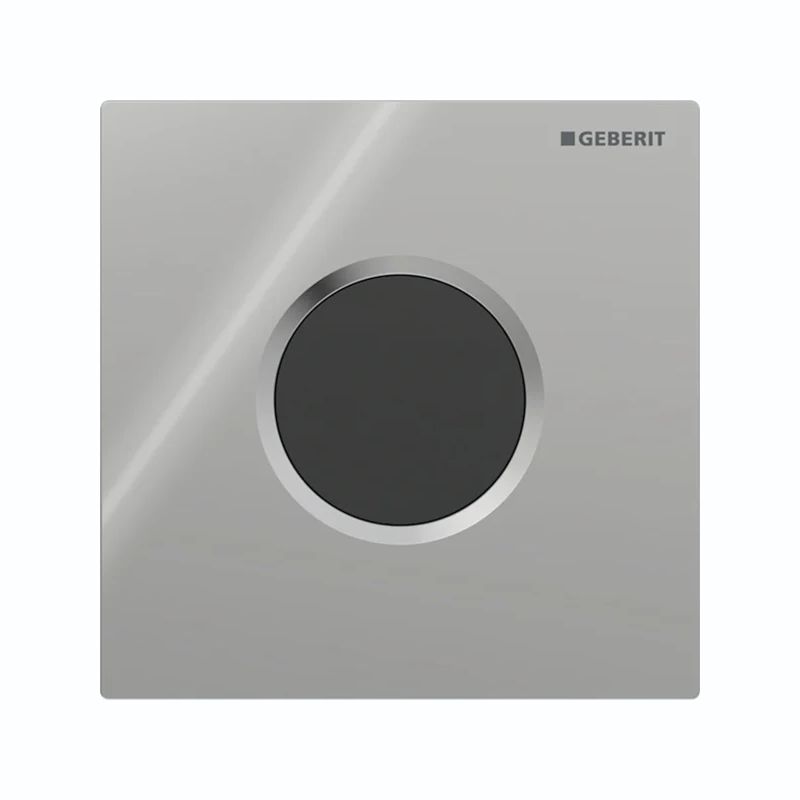

Urinal flush control with electronic flush actuation, mains operation, Type 01 cover plate, round
Gloss chrome finish
Die-cast zinc construction
Power consumption < 0.5 W
Nominal voltage 110–240 V AC
Operating voltage 4.5 V DC
Minimum flow pressure 1.0 bar
For automatic flush actuation of urinals
For Geberit frames for urinal with front actuation
For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)
Cover plate with securing bar
Reliable IR distance detection
Self-adjusting IR sensor
Infrared user detection with background fade-out
Water-saving hybrid mode can be set
Flush time can be set
Adjustable interval flush
Dynamic flushing time adjustment
Preflush can be set
Can be switched to operation with covered urinal
Power supply via mains connection
Ready for operation upon connection to mains
Power supply unit with LED display
Power failure control unit
Valve-closing function when power fails
One-time flush after activation of the power supply
Device settings and operation with mobile device via integrated Bluetooth interface
Functions can be set and queried with the Geberit Service Handy (Order Separately)
Compatible with Geberit Control App
Flush actuation can be deactivated

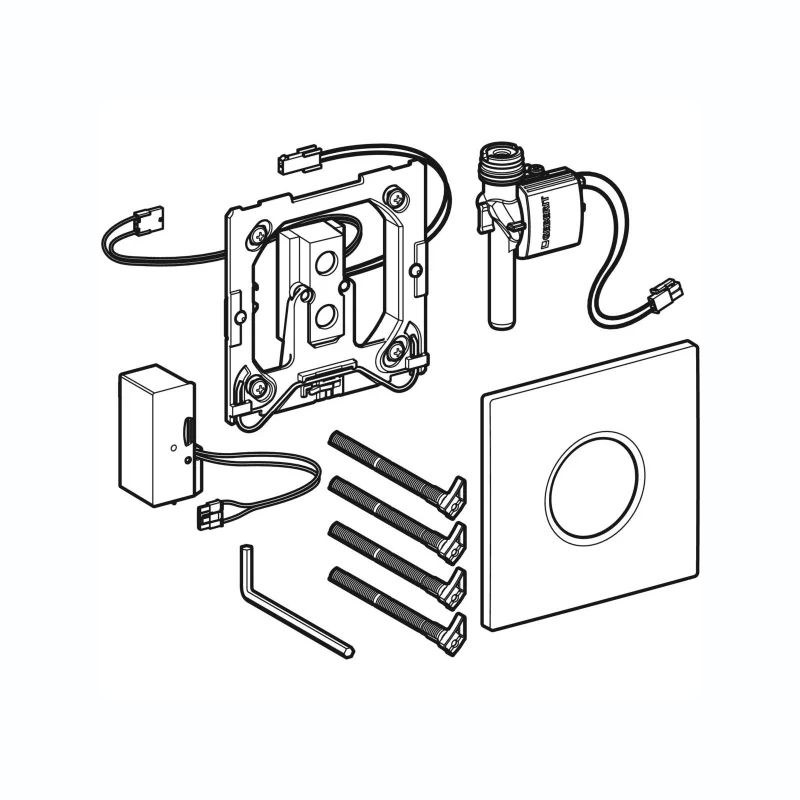

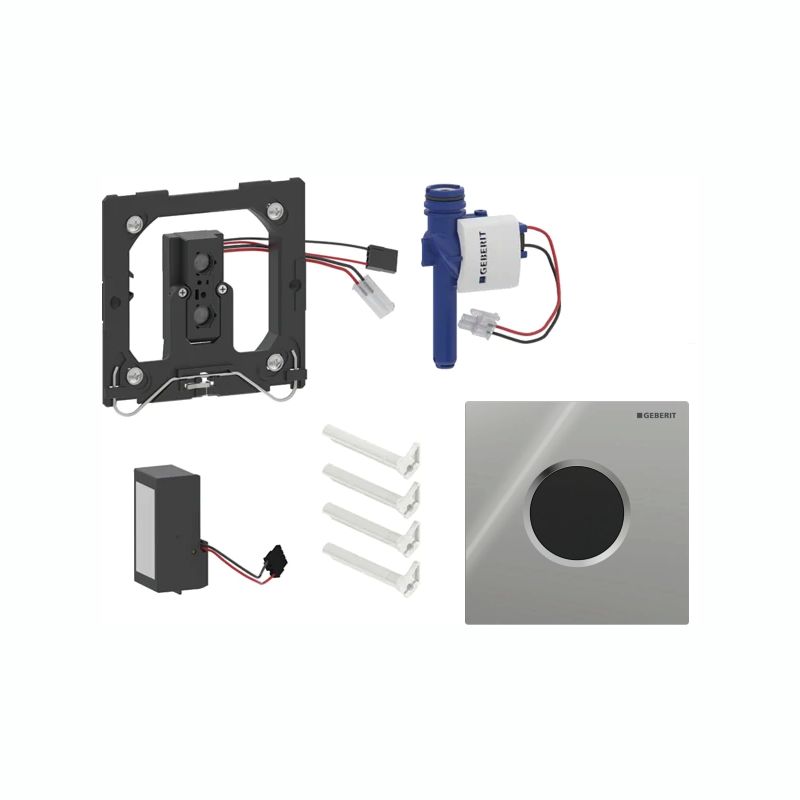

Scope of delivery:
• Type 01 cover plate, IR window, round
• Mounting frame
• Infrared control, premounted on mounting frame
• Solenoid valve
