Geberit Sigma Slimline 8cm Frame with Sigma40 Square Flush Plate Brushed Steel

Pack Contents
• Geberit Sigma 80mm Duofix Element for Wall-Hung WC 1140mm
• Geberit Sigma 40 Dual Flush Plate Square Brushed Steel

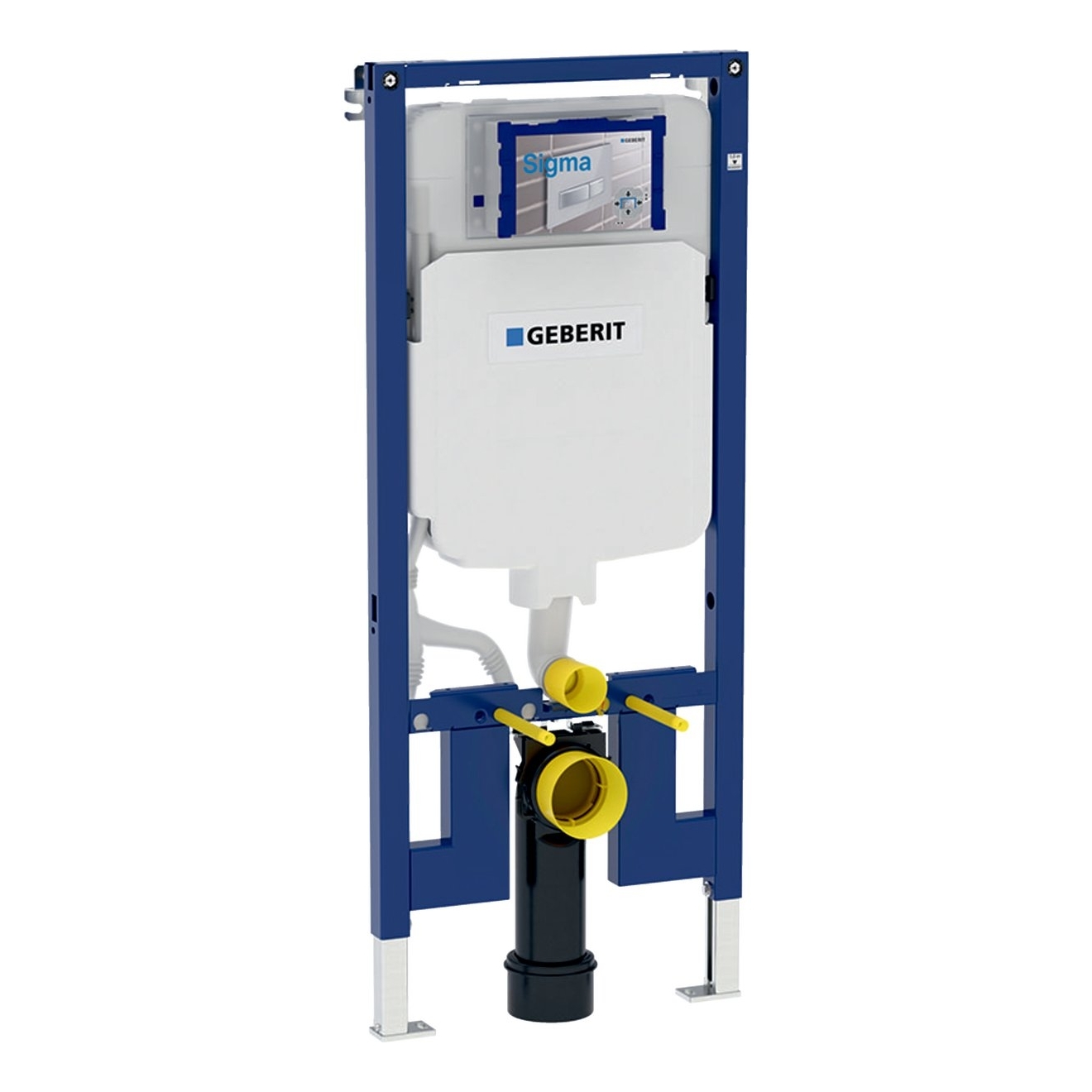

Geberit Sigma 80mm Duofix Element for Wall-Hung WC 1140mm

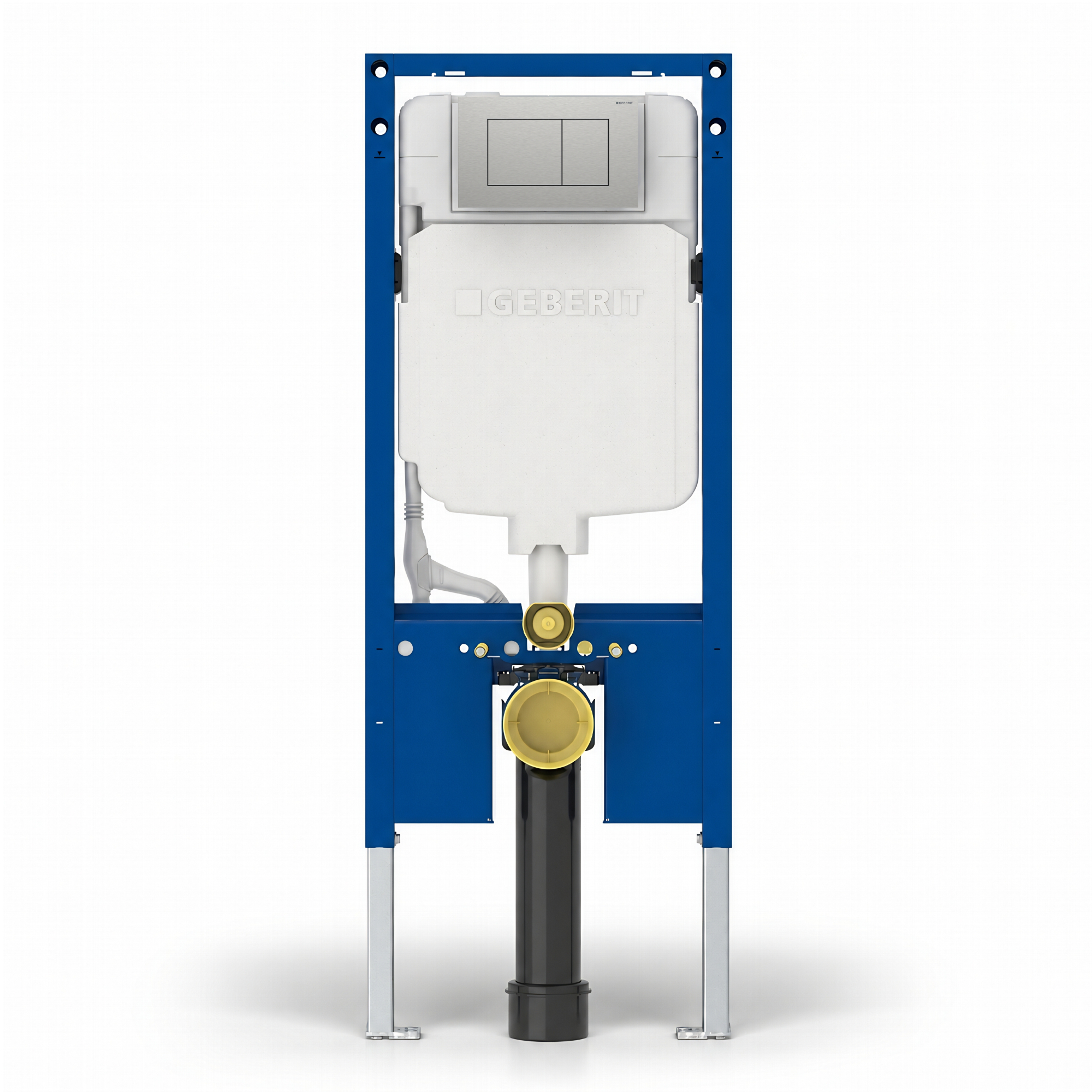

Geberit Duofix Element for Wall-Hung WC 1140mm with 80mm Sigma Concealed Cistern

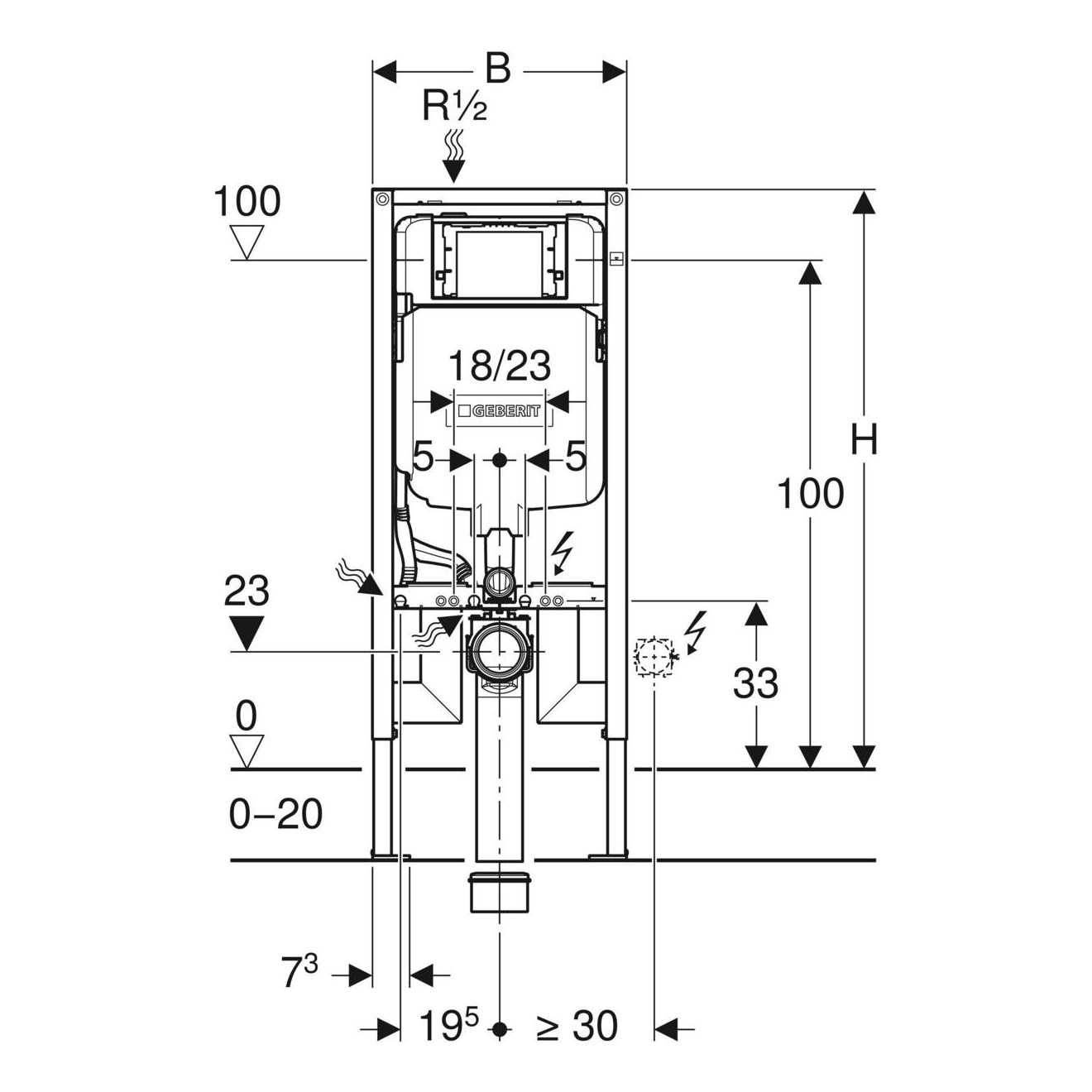

B 50cm, H 114cm, T 8cm
Flush volume, factory setting 5.8 / 3 litre
Flush volume large, adjustment range 4.5 / 6 / 7.5 litre
Flush volume small, adjustment range 2–4 litre
Steel frame
For metal and wood frame walls
For Geberit Duofix system walls
For installation in part- or room-height prewalls
For installation in room-height partition walls
For floor constructions 0–25 cm
Statically self-supporting frame, protected against corrosion with powder coating

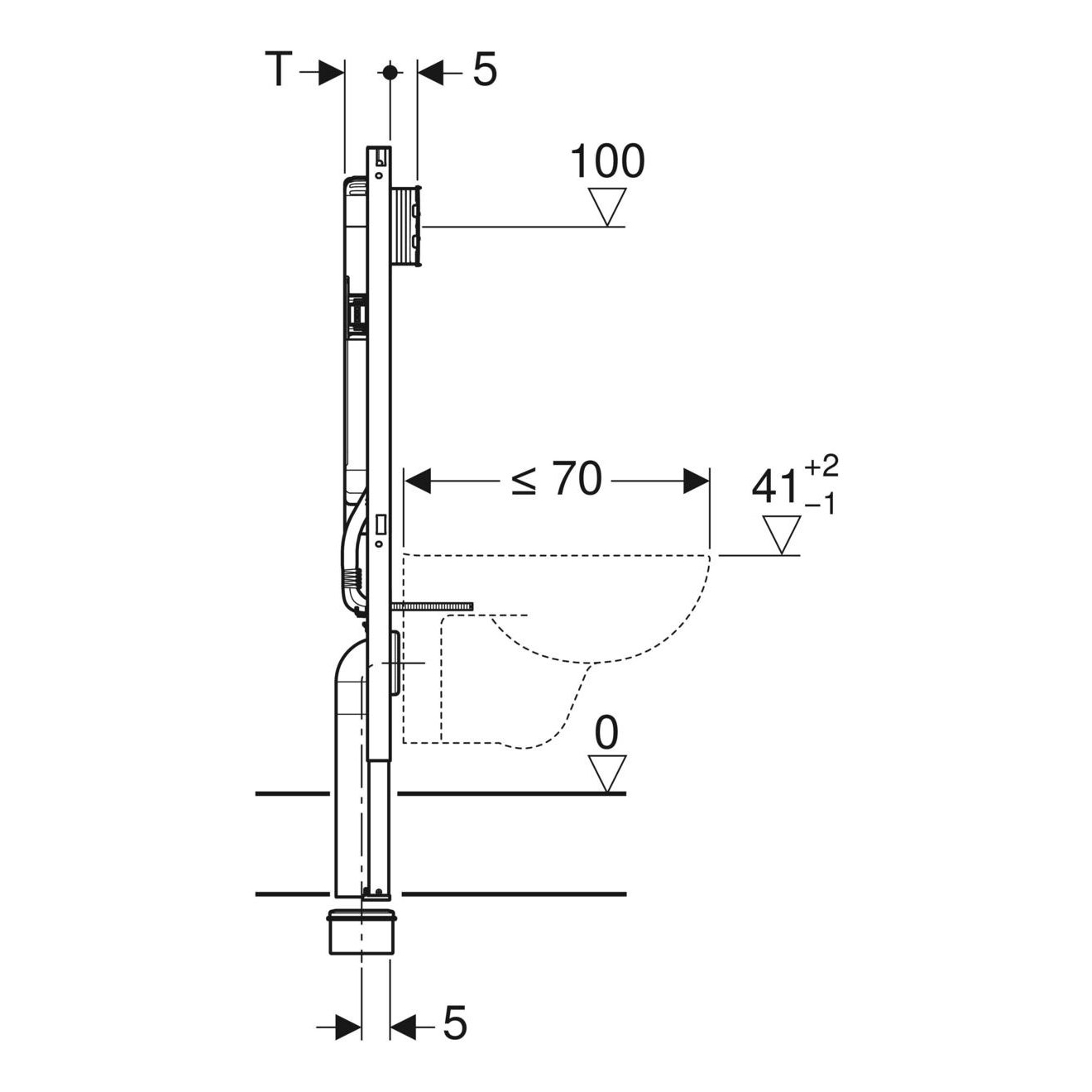

Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cm
With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs
Alternative fastening point for wall anchors
Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
Galvanised non-slip leg supports protected against corrosion
Connection bend can be mounted without tools at different depths, adjustable range 80mm
Interrupted crossbar enables a front flush depth for the vertical outlet bend
Waste connector bend, extended, for connection in floor
Geberit Sigma concealed cistern 8cm, fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
For front actuation, suitable for single, dual and stop-and-go flushes
Immediate post flush possible with factory setting

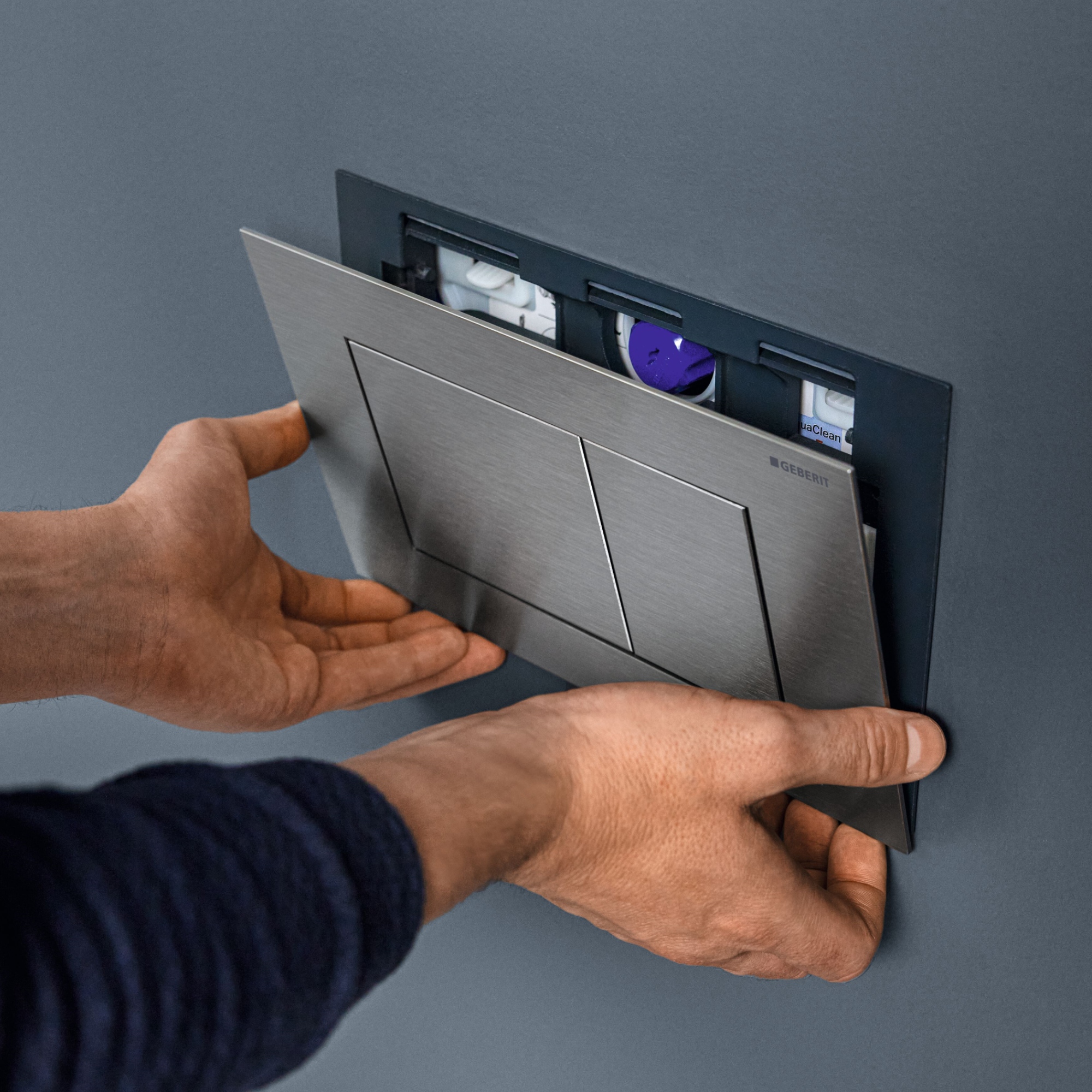

Tool-free installation and maintenance work on concealed cistern
Water supply connection on the top left
Protection box for service opening, can be cut to length, protects against moisture and dirt
With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
Fastening option for electrical connection

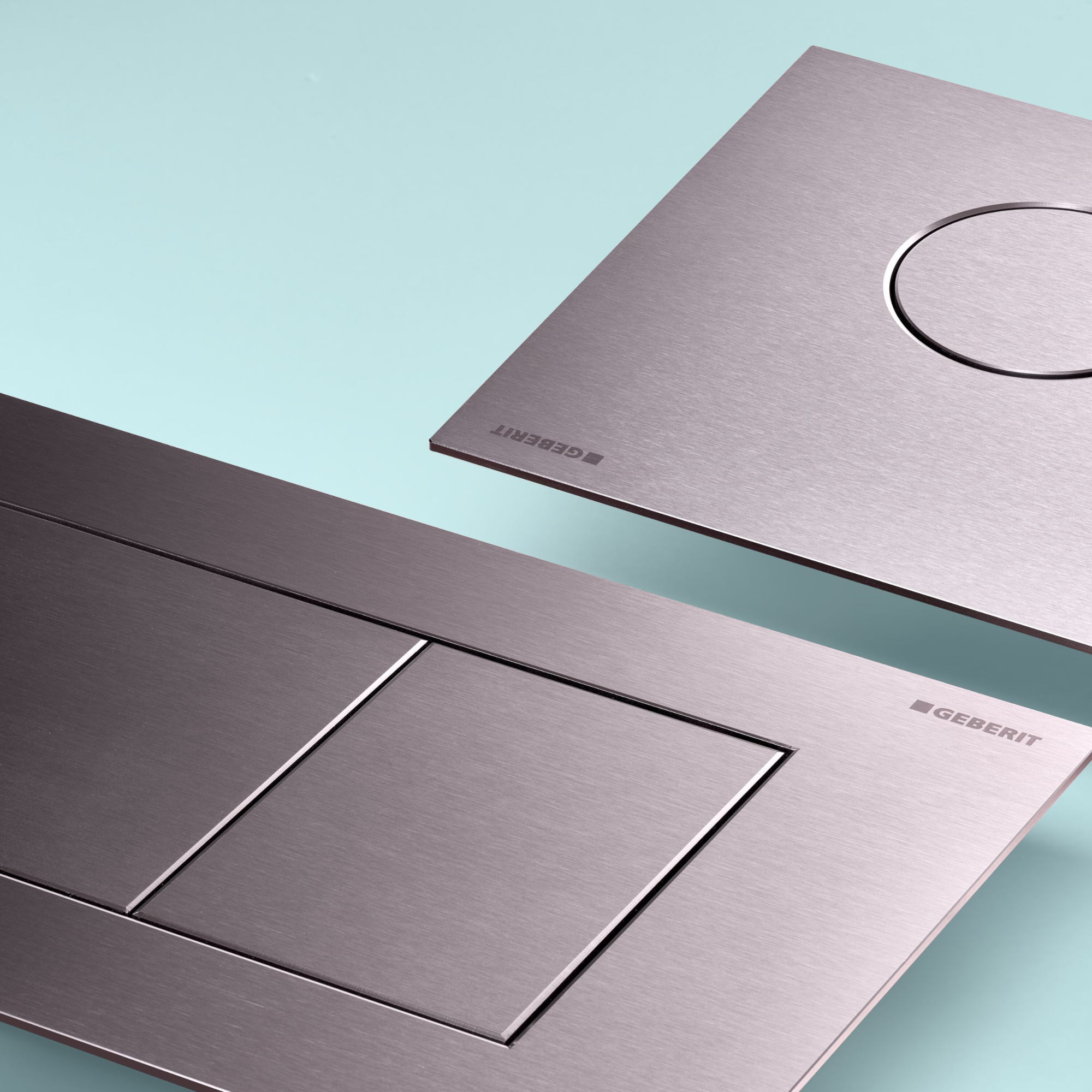

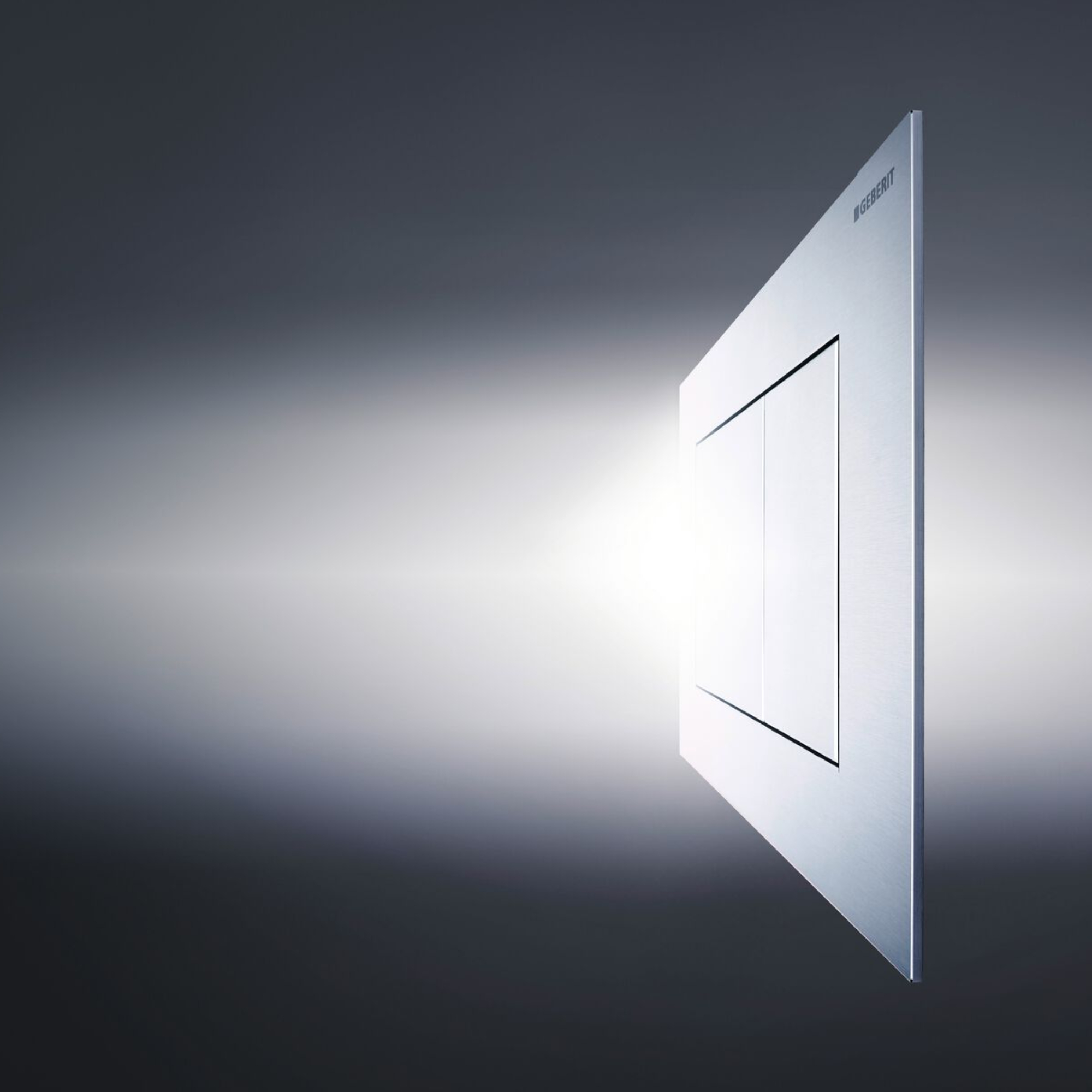

Geberit Sigma 40 Dual Flush Plate Square Brushed Steel

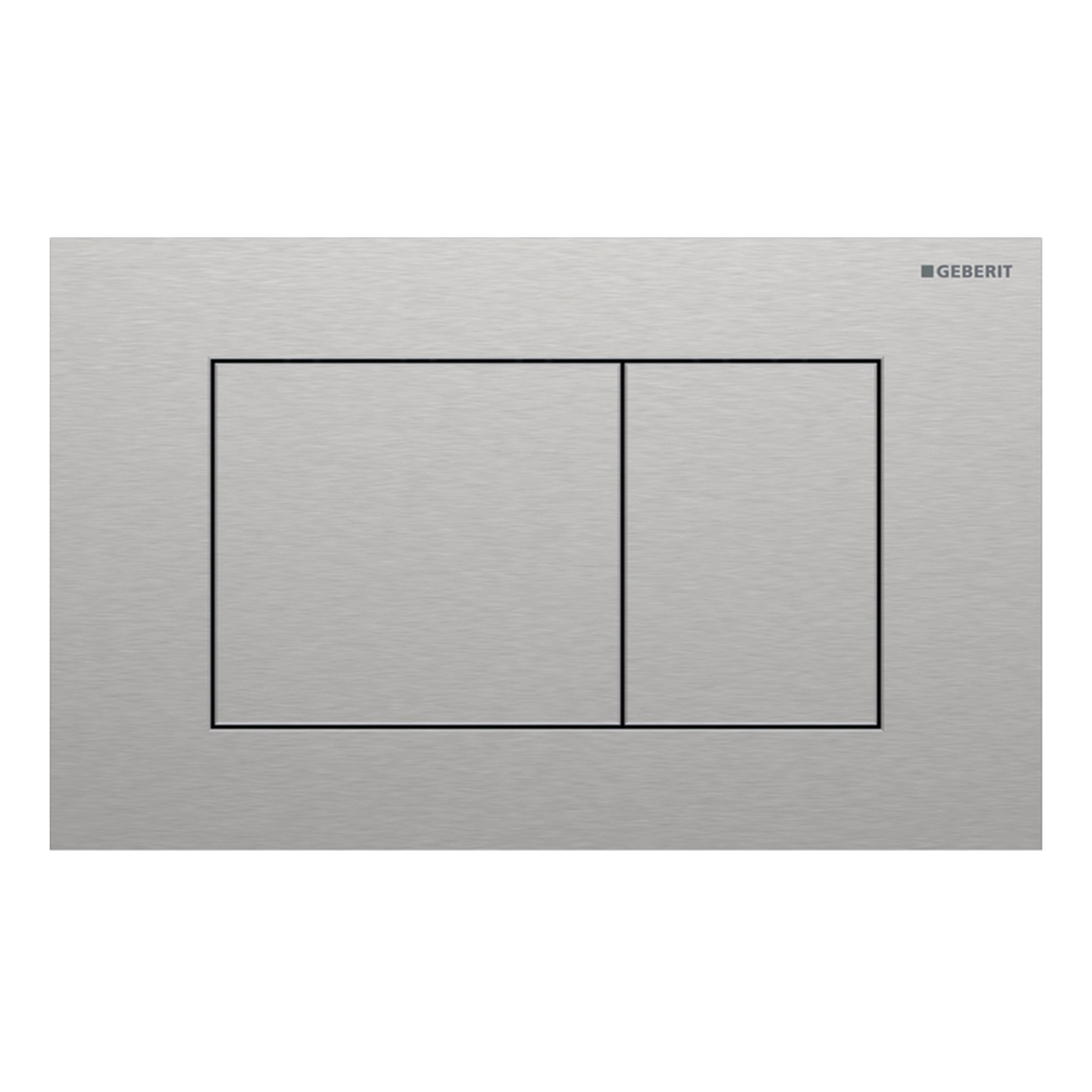

Geberit Sigma 40 Dual Flush Plate with Square Buttons
Stainless Steel construction
Brushed, easy-to-clean coated finish
For flush actuation with Sigma concealed cisterns
Front actuation
Sound-absorbing actuator rods, tool-free fast adjustment

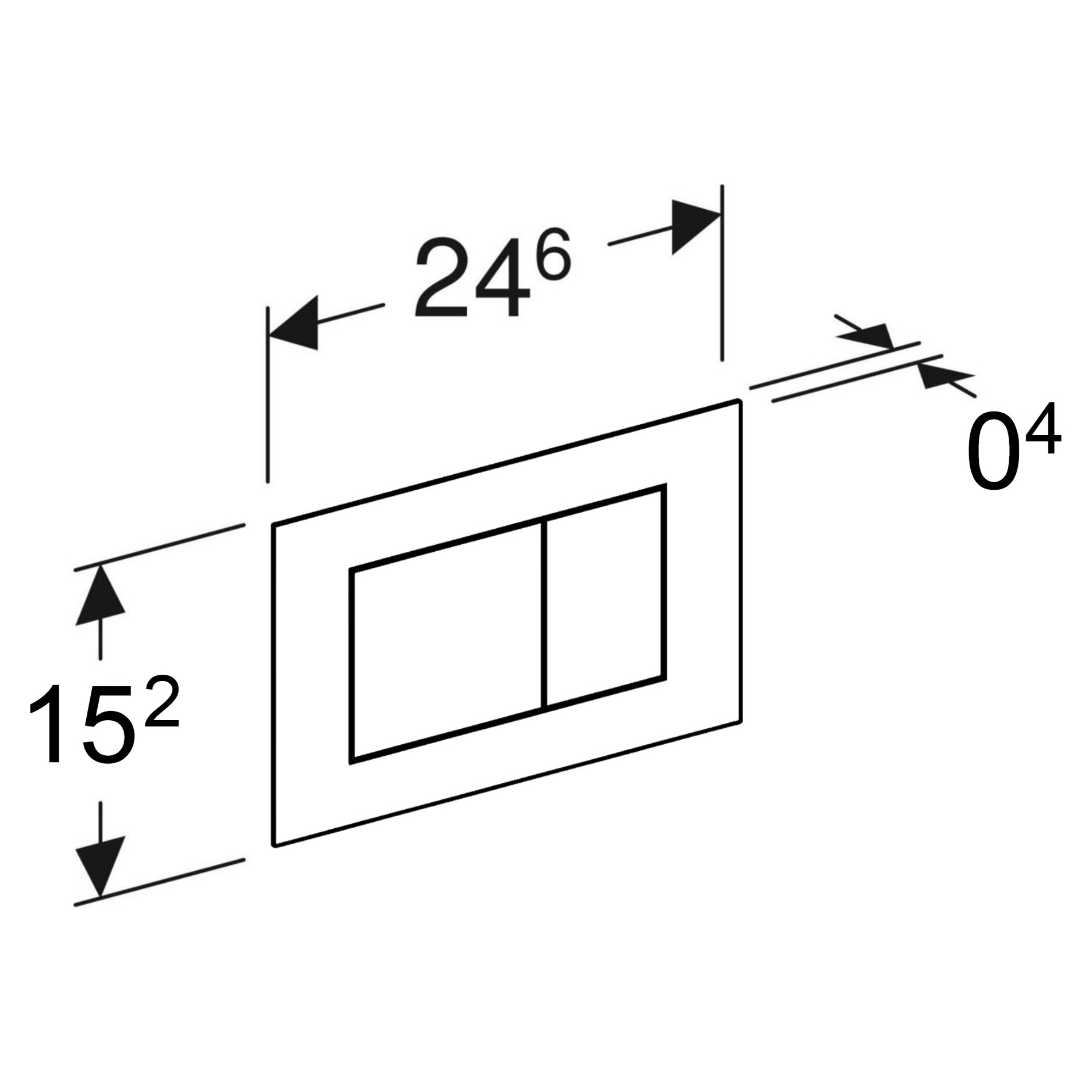

Plate size 24.6 x 15.2cm
