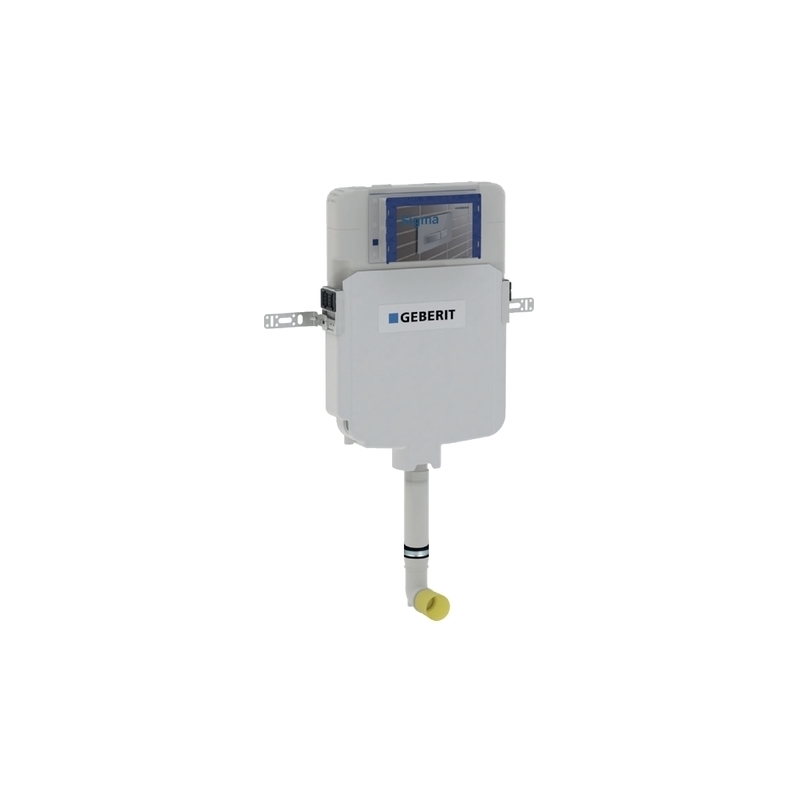

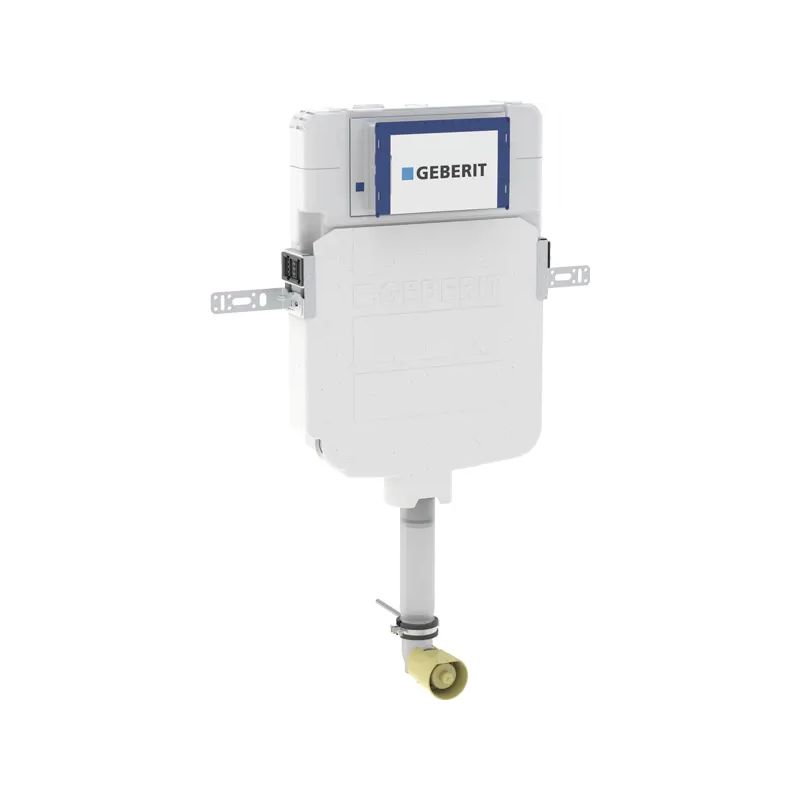

Geberit Sigma Concealed Cistern 8cm 5.8/3 Litre

Geberit Sigma concealed cistern 8cm, 5.8/3 litres
Front actuation
Plastic
Replaces art. no. 109.772.00.1
Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush
For drywall construction
For masonry walls
For installation in part or room-height prewall installations
For floor-standing WCs
Fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory setting
Flush bend fitted
Tool-free installation and maintenance work on concealed cistern
Water supply connection on the top left
Protection cover box for service opening protects against moisture and dirt
Protection box for service opening can be cut to length, suitable for surface-even flush plates

Scope of delivery
• Water supply connection R 1/2″ with integrated angle stop valve and hand wheel
• Protection box for service opening
• Flush bend 90°
• Fastening for flush bend
• Protection plug
• Cup for flush volume reduction 4.5 / 3 l
• Fastening material
• 2 fixing brackets
