Geberit Sigma 98cm Frame & Cistern with Sigma40 Round Flush Plate Matt White

Pack Contents
• Geberit Sigma Duofix Element for Wall-Hung WC 980mm
• Geberit Sigma 40 Actuator Plate Dual Flush Round Matt White Stainless Steel

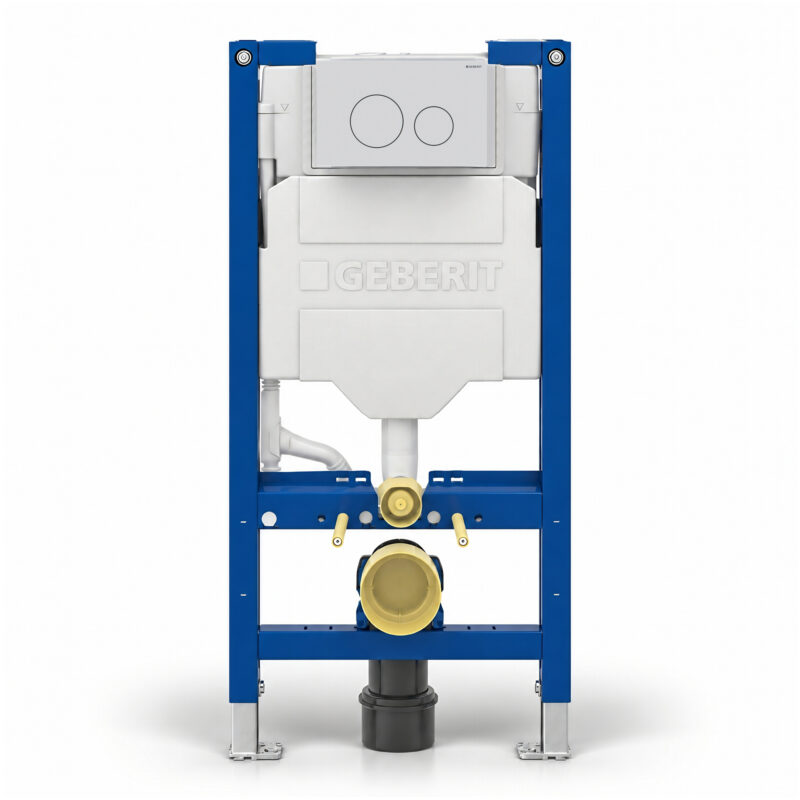

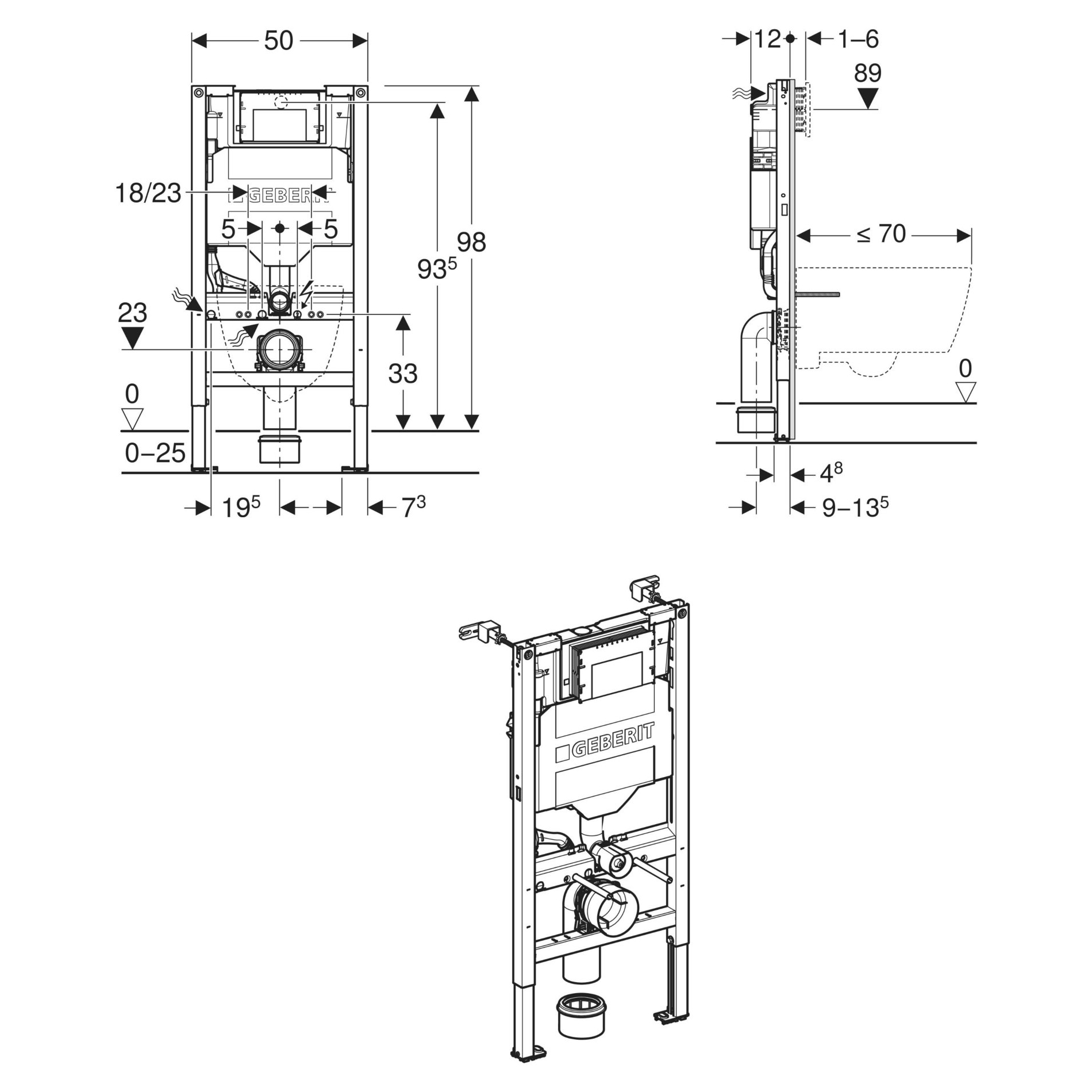

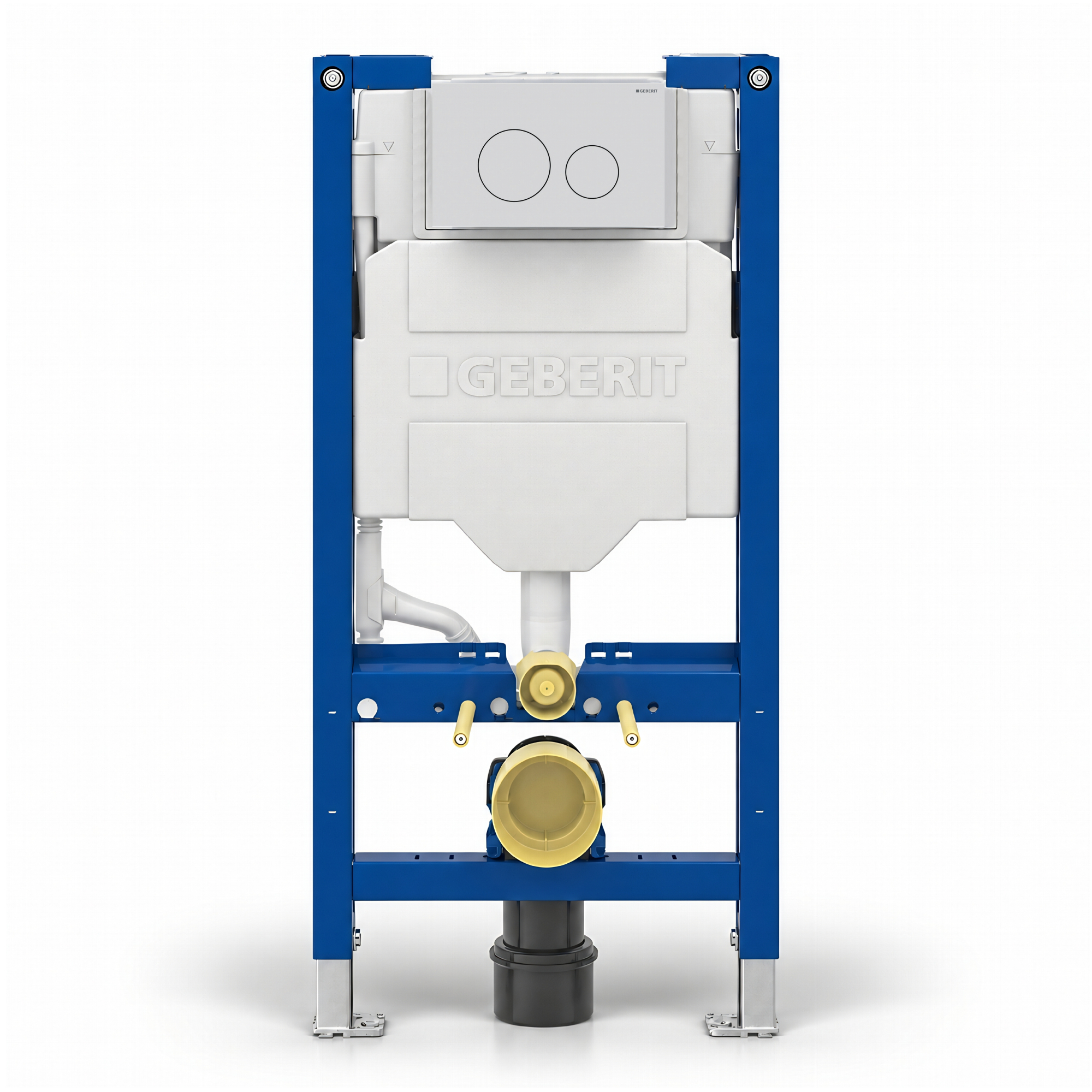

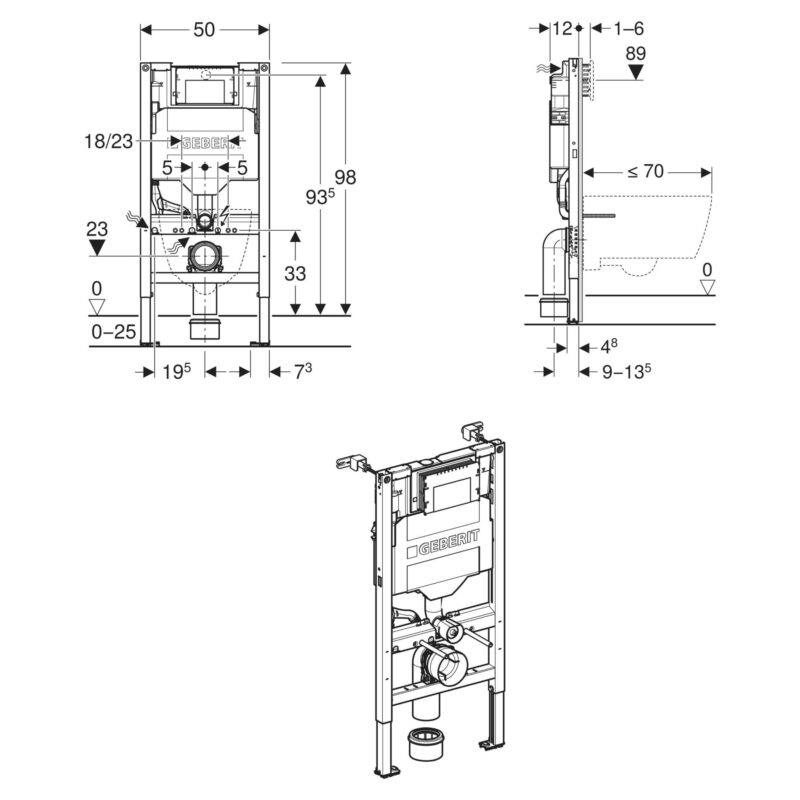

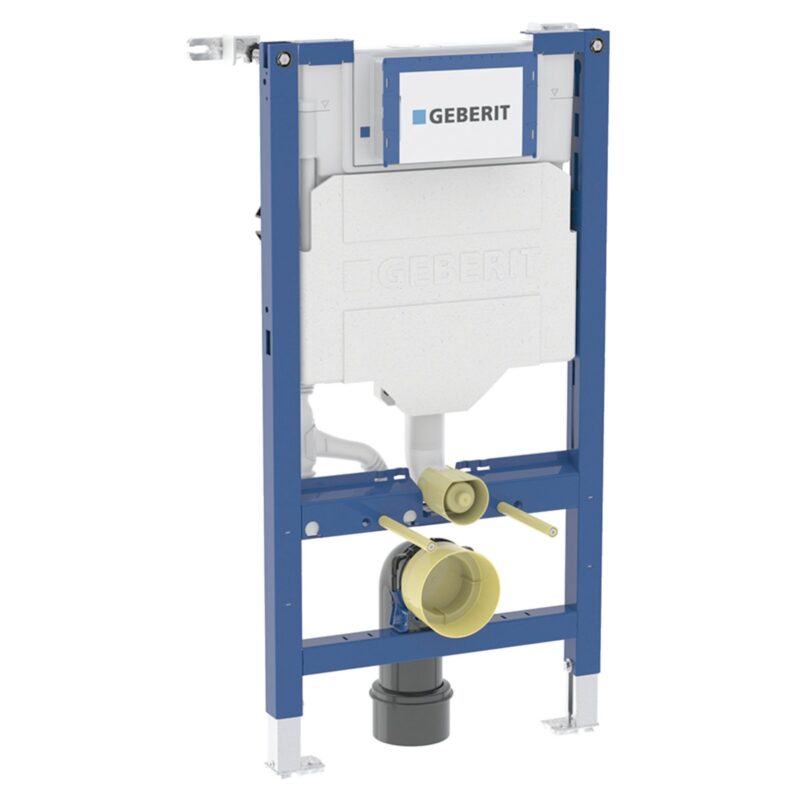

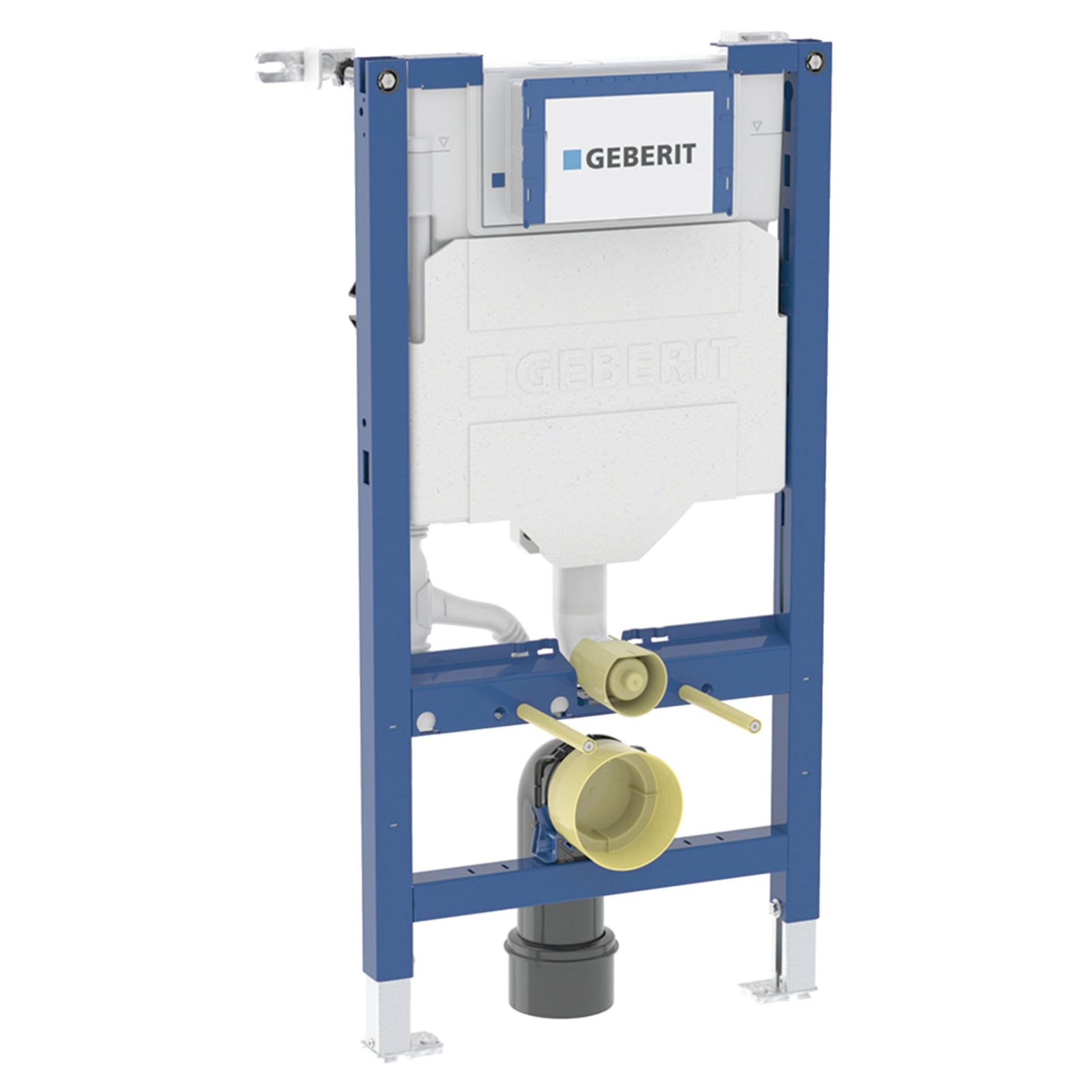

Geberit Sigma Duofix Element for Wall-Hung WC 980mm
Geberit Duofix Element for Wall-Hung WC 980mm with 120mm Sigma Concealed Cistern
High-quality construction
Easy installation
Reliable and durable
For metal and wood frame walls
For Geberit Duofix system walls
For installation in part- or room-height prewalls
For installation in room-height partition walls
For floor constructions 0–25cm
For wall-hung WCs
Not suitable for Sigma70 flush plates
Not suitable for Sigma80 flush plates
Statically self-supporting frame, protected against corrosion with powder coating
Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70cm
Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
Galvanised non-slip leg supports protected against corrosion
Connection bend can be mounted without tools at different depths, adjustable range 45mm
Geberit Sigma concealed cistern 12 cm, fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
For front actuation, suitable for single, dual and stop-and-go flushes
Immediate post flush possible with factory setting
Tool-free installation and maintenance work on concealed cistern
Flush bend fitted
Cistern rotatable by 180° for access from service room
Water supply connection on the rear centre
Components in contact with drinking water lead-free
Protection box for service opening, can be cut to length, protects against moisture and dirt
With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
Fastening option for electrical connection

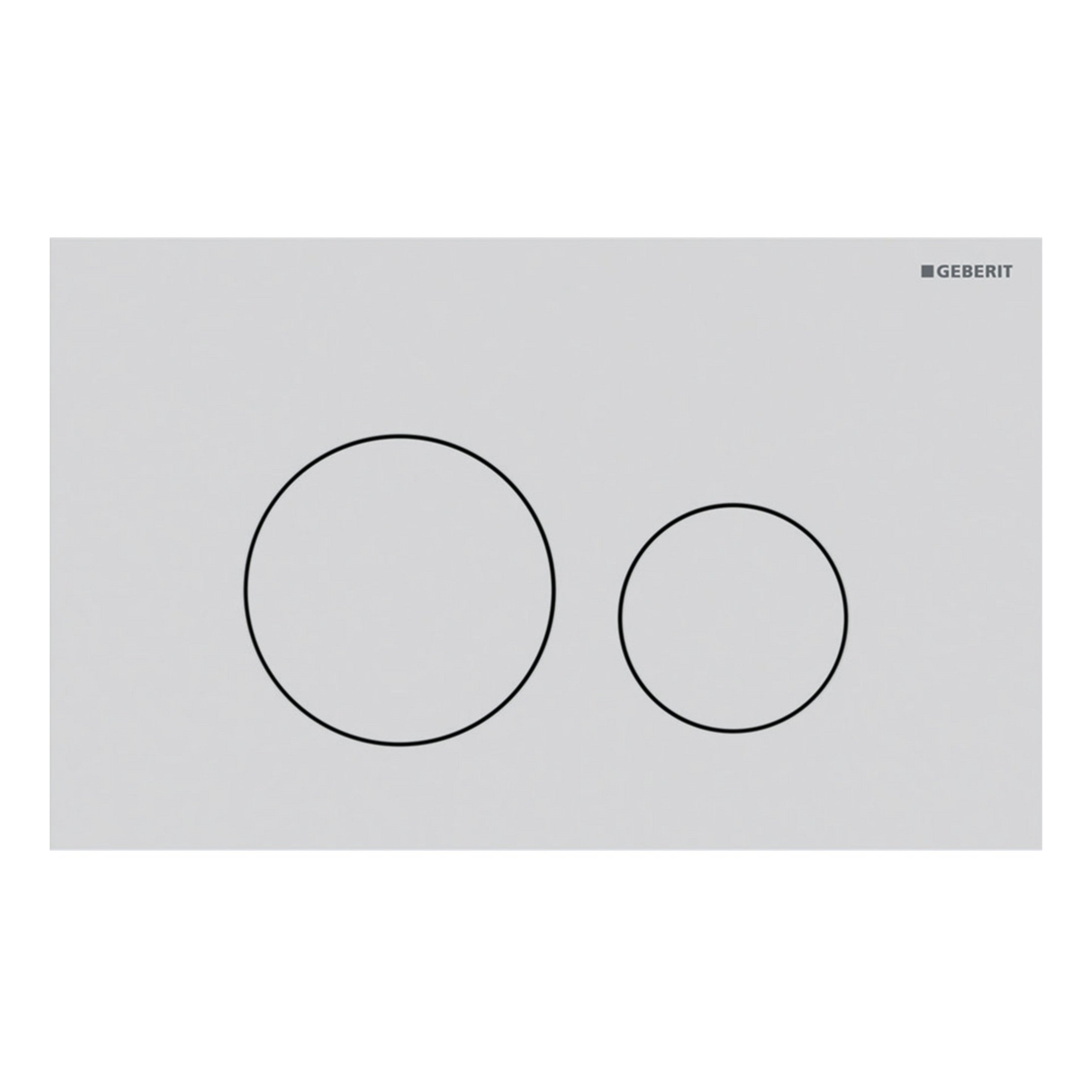

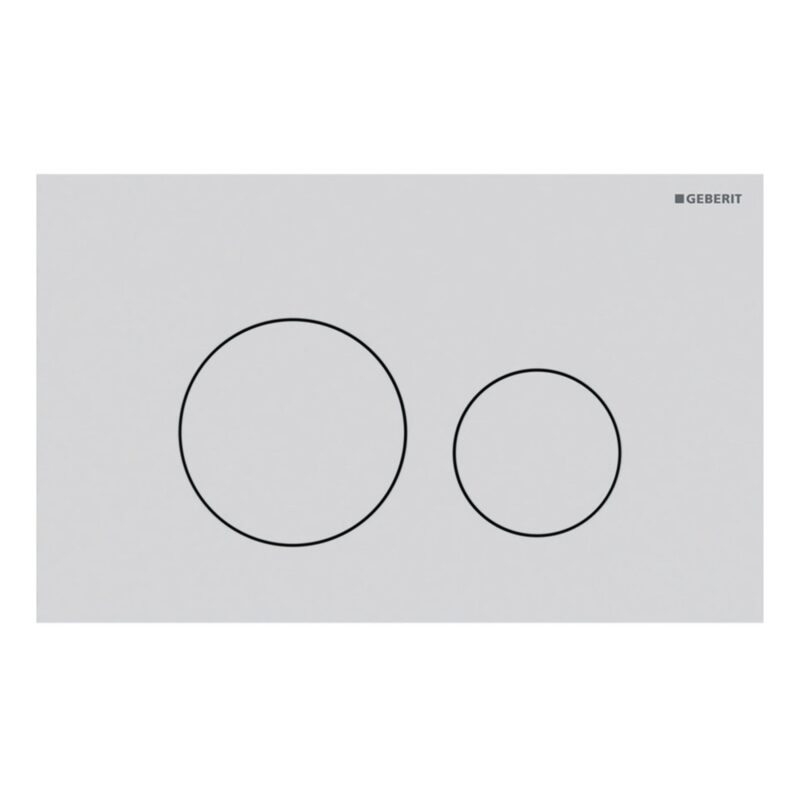

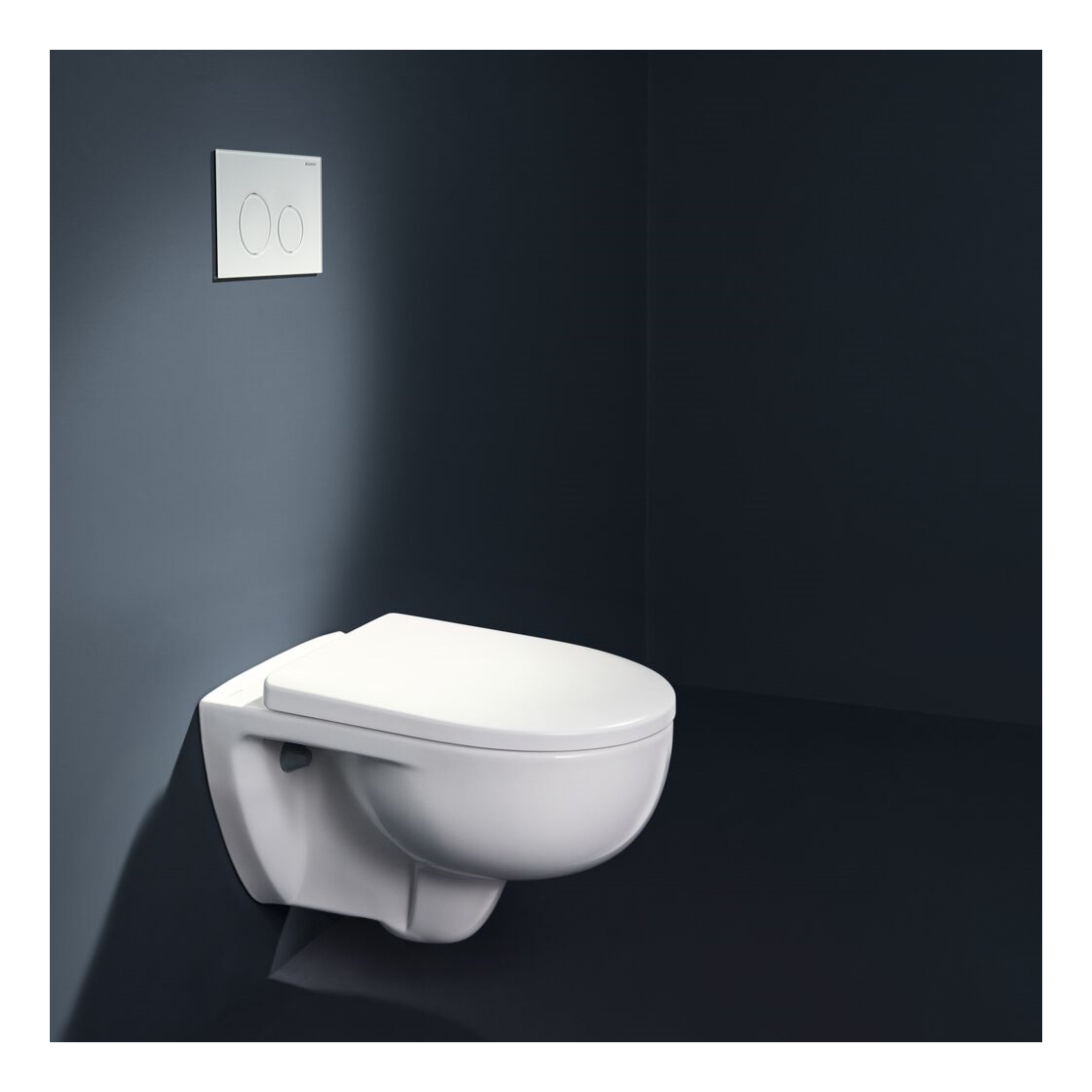

Geberit Sigma 40 Actuator Plate Dual Flush Round Matt White Stainless Steel
Geberit Sigma 40 Actuator Plate Dual Flush
Round buttons
Matt White finish, Easy-to-clean coated
Stainless Steel
For flush actuation with Sigma concealed cisterns
Front actuation
Sound-absorbing actuator rods, tool-free fast adjustment

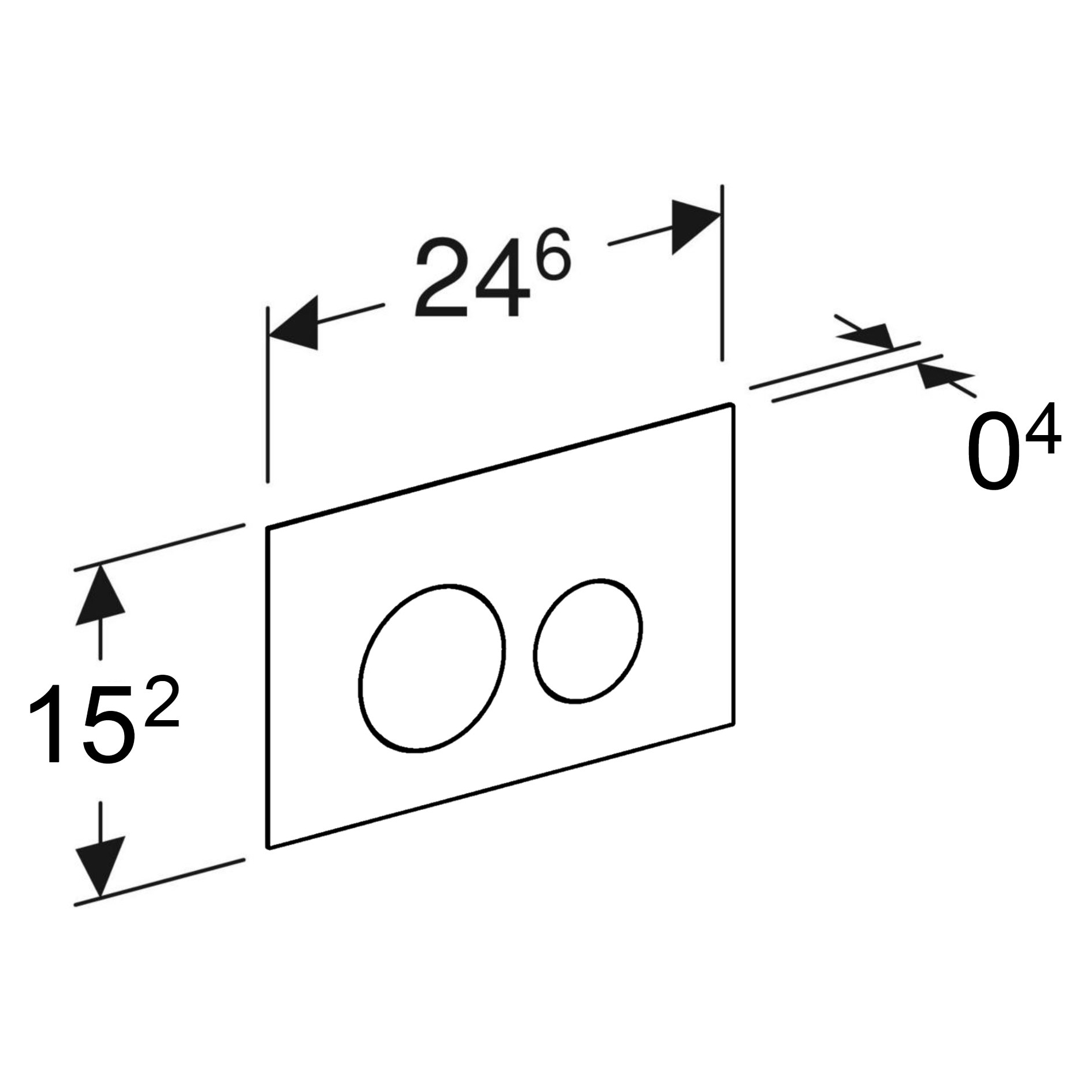

Plate size 24.6 x 15.2cm
