Geberit Sigma 80mm Duofix Element for Wall-Hung WC 1140mm

Geberit Duofix Element for Wall-Hung WC 1140mm with 80mm Sigma Concealed Cistern
Replaces 111.799.00.3

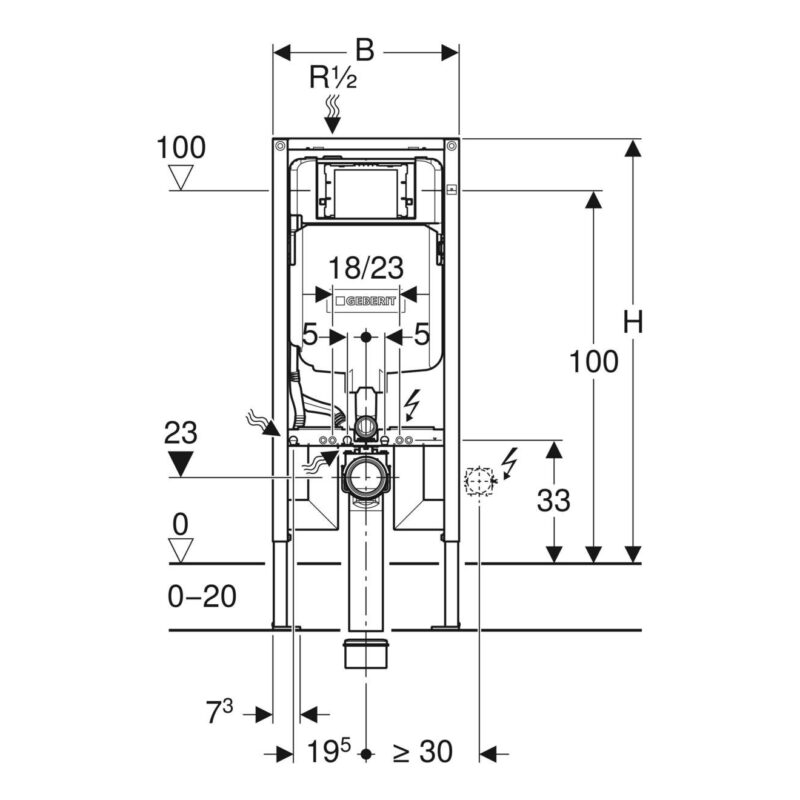

B 50cm, H 114cm, T 8cm
Flush volume, factory setting 5.8 / 3 litre
Flush volume large, adjustment range 4.5 / 6 / 7.5 litre
Flush volume small, adjustment range 2–4 litre
Steel frame
For metal and wood frame walls
For Geberit Duofix system walls
For installation in part- or room-height prewalls
For installation in room-height partition walls
For floor constructions 0–25 cm
Statically self-supporting frame, protected against corrosion with powder coating

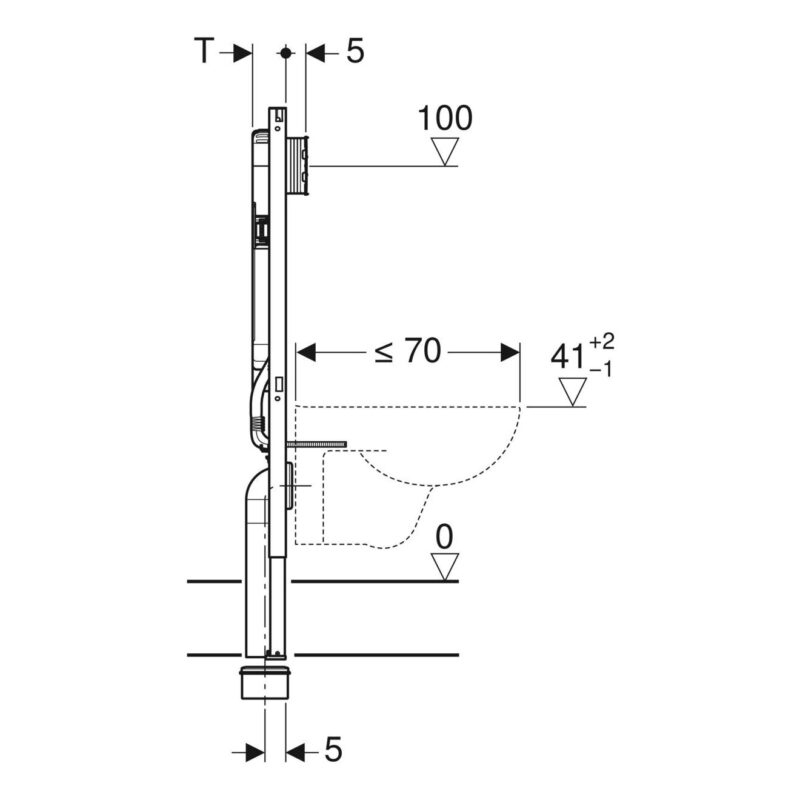

Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cm
With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs
Alternative fastening point for wall anchors
Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
Galvanised non-slip leg supports protected against corrosion
Connection bend can be mounted without tools at different depths, adjustable range 80mm
Interrupted crossbar enables a front flush depth for the vertical outlet bend
Waste connector bend, extended, for connection in floor
Geberit Sigma concealed cistern 8cm, fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
For front actuation, suitable for single, dual and stop-and-go flushes
Immediate post flush possible with factory setting
Tool-free installation and maintenance work on concealed cistern
Water supply connection on the top left
Protection box for service opening, can be cut to length, protects against moisture and dirt
With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
Fastening option for electrical connection

Scope of delivery
• Water supply connection R 1/2″ with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 wall anchors
• Connection set for WC, 90mm
