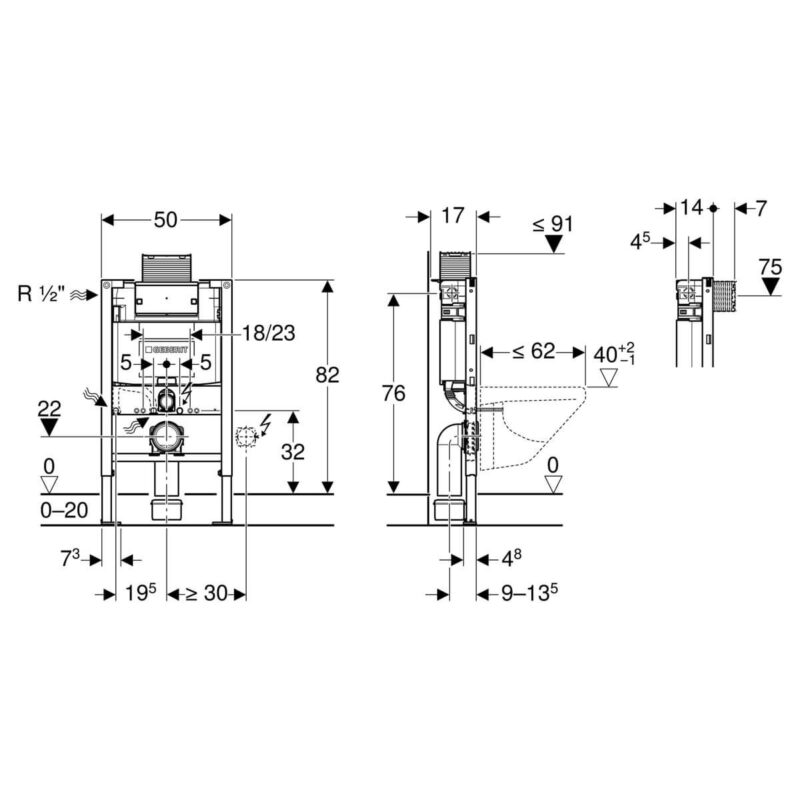

Geberit Omega Duofix 820mm Element for Wall-Hung WC

Geberit Duofix 820mm x 500mm Element for Wall-Hung WC with Omega 120mm Concealed Cistern
For metal and wood frame walls
For Geberit Duofix system walls
For installation in part-height prewalls
For floor constructions 0–25cm
For wall-hung WCs
Statically self-supporting frame, protected against corrosion with powder coating
Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70cm
Frame with 9mm drilling holes for fastening in wood frame construction
Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
Galvanised non-slip leg supports protected against corrosion
Connection bend can be mounted without tools at different depths, adjustable range 45mm
Geberit Omega concealed cistern 12cm, fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
For top or front actuation, suitable for dual flush
Immediate post flush possible with factory setting
Tool-free installation and maintenance work on concealed cistern
Water supply connection on the left or rear left
Protection box for service opening, can be cut to length, protects against moisture and dirt
With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
Fastening for electrical connection and Power & Connect Box

Scope of delivery:
• Water supply connection R 1/2″, compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 wall anchors
• Connection set for WC, 90mm
• Connection bend 90° made of PE-HD, 90mm
• Adaptor socket made of PE-HD, 90 / 110mm
• 245.746.00.1 – Pull Disc Type 212
• Fastening and protection material
