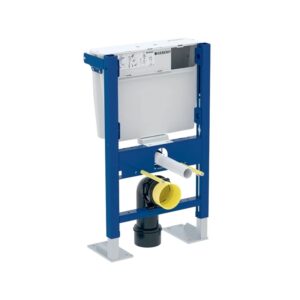

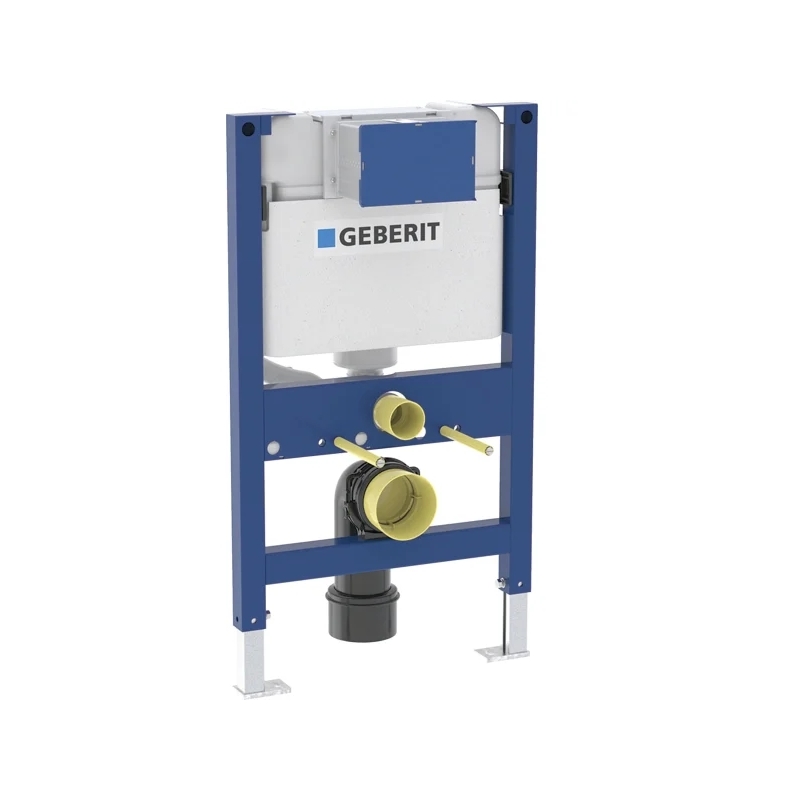

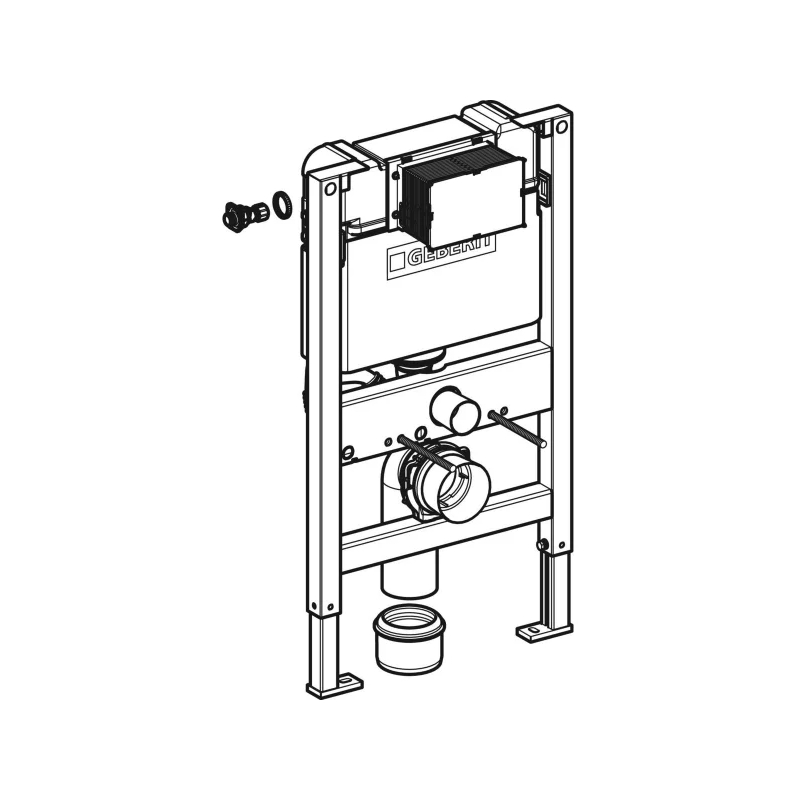

Geberit Duofix 820mm Frame for Wall-Hung WC with Kappa 150mm Cistern

Geberit Duofix element for wall-hung WC, 82 cm, with Kappa concealed cistern 15 cm
Flow pressure 0.1-10 bar
Maximum operating temperature, water 25 °C
Flush volume, factory setting 5.8 and 3 litre
Flush volume small, adjustment range 3-4 litre
For drywall construction
For installation in part-height prewall installations
For wall-hung WCs with connection dimensions in accordance with EN 33:2011
For wall-hung WCs with projection up to 62 cm
For floor constructions 0-20 cm

Characteristics:
Self-supporting frame, powder-coated
Galvanized feet
Feet adjustable 0-20 cm
Concealed cistern with front actuation
Concealed cistern, fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory setting
Water supply connection on the left
Protection cover box for service opening protects against moisture and dirt
With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
Fastening option for electrical connection

Scope of delivery:
Water supply connection Rp 1/2″ – R 1/2″, compatible with MF, with integrated angle stop valve and hand wheel
Protection box for service opening
2 wall anchors
2 protection plugs
Connection set for WC, 90 mm
Connection bend 90° made of PE-HD, 90 / 110 mm
Adaptor socket made of PE-HD, 90 / 110 mm
2 threaded rods M12
Fastening material
