Geberit Alpha 82cm Height Concealed Cistern

Geberit Alpha 82cm Height Concealed Cistern 5.8 / 3 litres

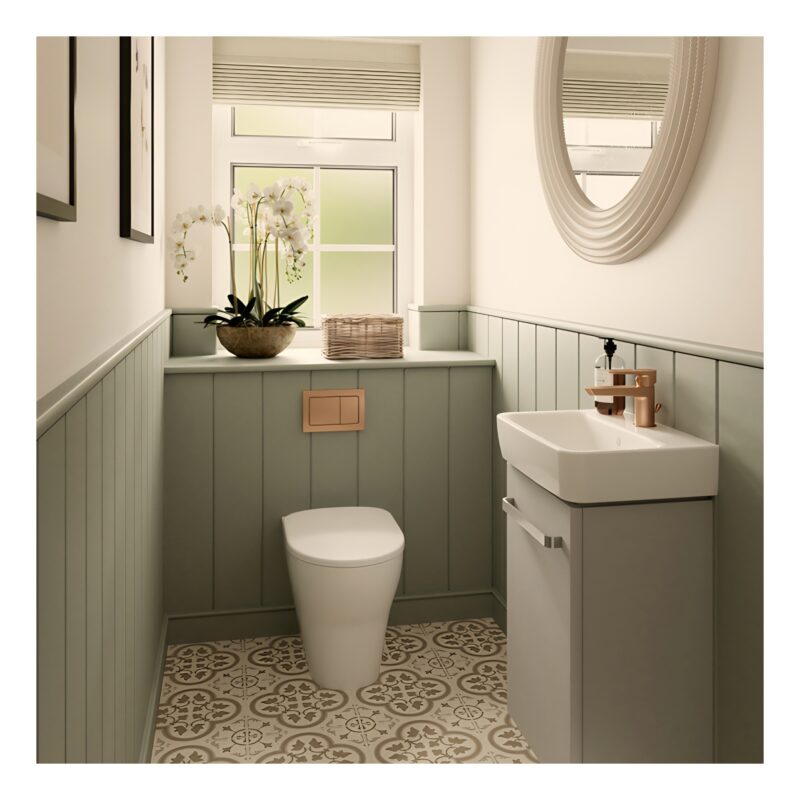

Installation height of 82cm provides a practical solution for floor-standing back-to-wall WCs in small spaces
Designed to maximise bathroom space
Top or front flush actuation
Suitable for installing a back-to-wall WC in an area with restricted height (e.g. under a window, stairs, or roof pitch)

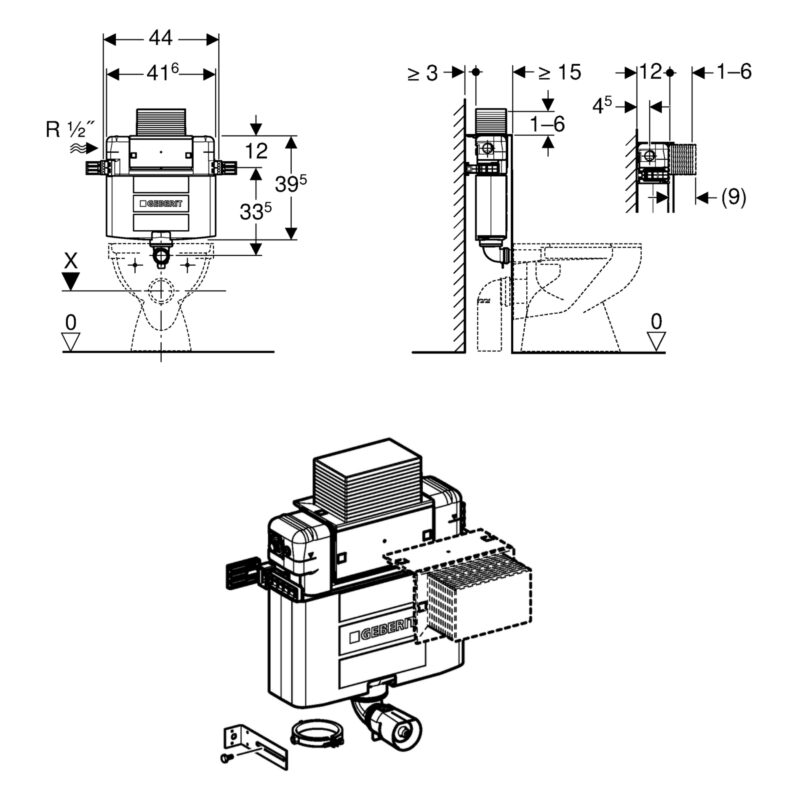

Space-Saving – 12cm depth and 82cm installation height
Dual flush system for efficient water usage
Leakproof Design – Cistern is blow-moulded in a single piece to prevent leaks

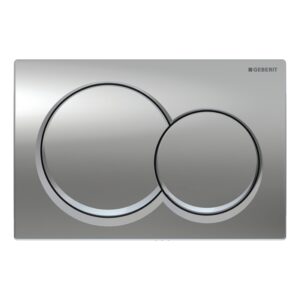

Compatibility – Works with Geberit pneumatic flush buttons
Water supply connection on the rear or left
Blow mould plastic
For masonry walls
For installation in part-height prewall installations
For floor-standing and wall-hung WCs
Welded flush bend
Water supply connection on the left or rear left
Protection box for service opening, can be cut to length, protects against moisture and dirt

Scope of delivery
• Water supply connection R 1/2″, with integrated angle stop valve and hand wheel
• Protection box for service opening
• Flush bend extension 45mm
• Fastening for flush bend
• 2 fixing brackets
• Fastening and protection material
• Type 212 flush valve 245.746.00.1
