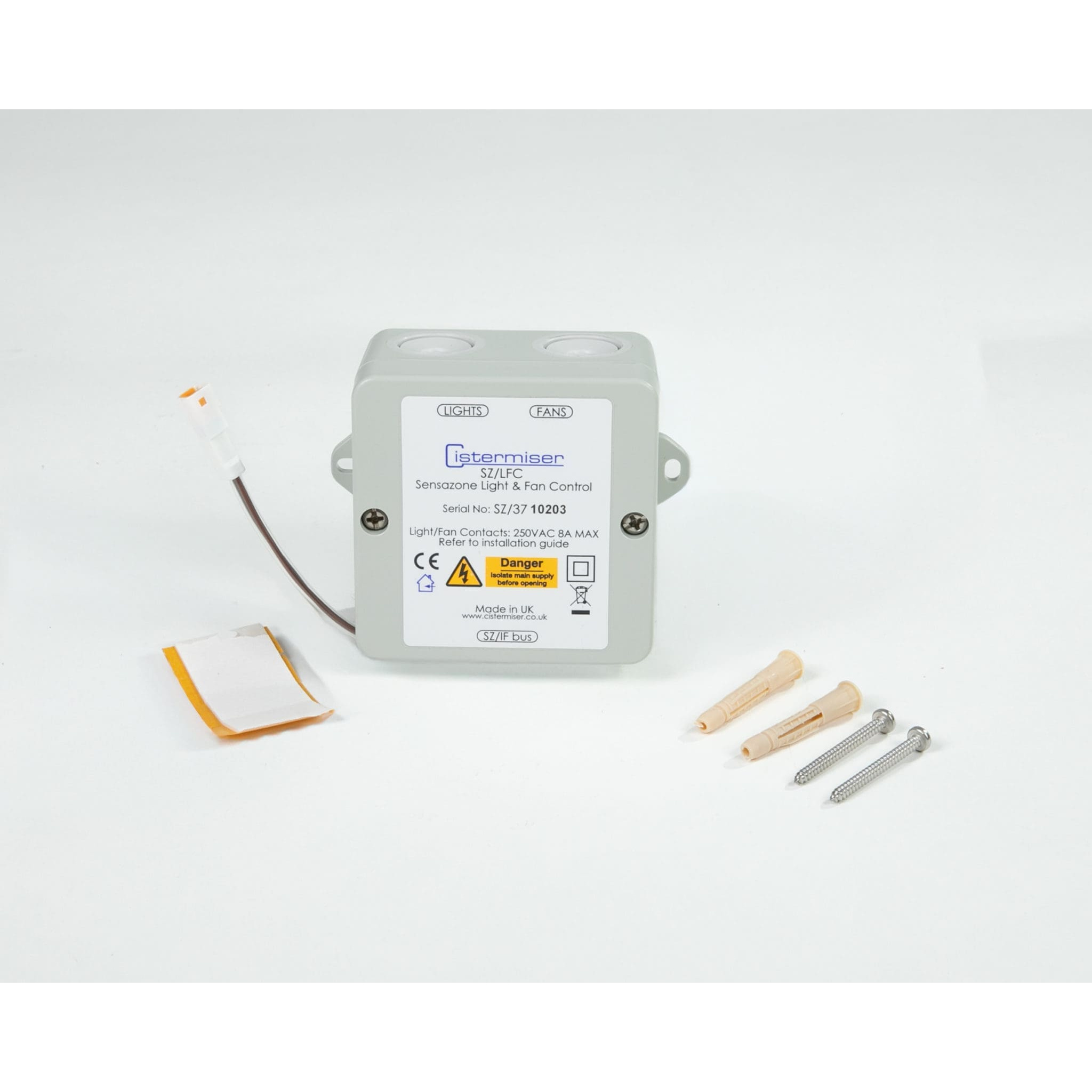

Cistermiser Sensazone Light & Fan Shut-Off Connection Module

Sensazone light and fan shut-off connection module, switching washroom lighting and extractor fans with occupancy
Lights switch on when the washroom is occupied and ambient light is low, with 0, 15 or 30 minute run-on
Fan run-on controlled by Sensazone or by the fan unit timer
Connects to any sensor in the system, cable extendable up to 100m with 1.5mm² CSA cable
Dimensions: 80mm H x 80mm W x 52mm D, aerial 126mm
Rated voltage: 240V AC, rated current 8A
Making capacity: 16A for 1 second, breaking capacity 4000VA
Maximum wire size: 2.5mm²
IP54
