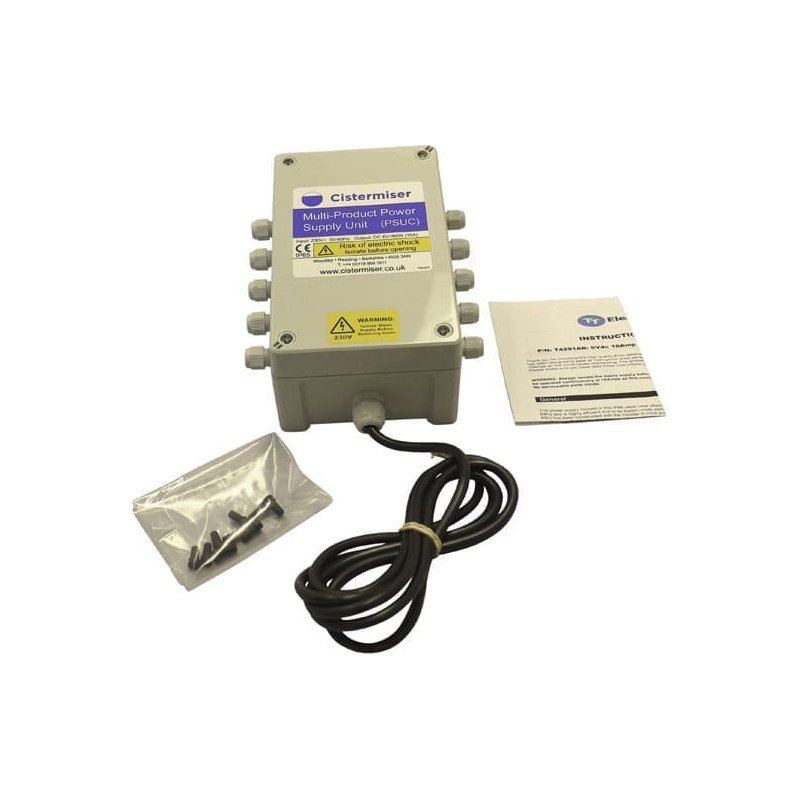

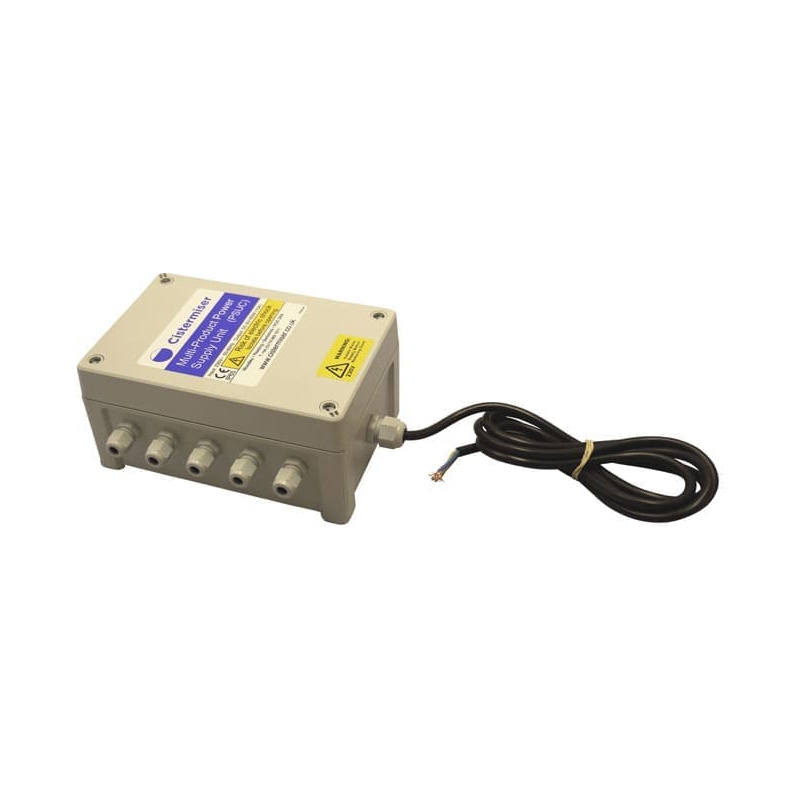

Cistermiser Multi-Product Power Supply Unit

Cistermiser Multi-Product Power Supply Unit supplying 10 channels of regulated 6V DC from a single fused spur
Powers up to 10 Easyflush, 30 Easyflush Direct, 30 Direct Flush, 30 Novatap or Vectatap, 30 Vecta+ sensor taps, 30 Vecta+ Sensor Shower Panels or 10 Sensazone systems
Input: 230V AC 50/60Hz 0.3A max
Output: 6V DC +/- 5%, 10A max pulsed load, 1.25A max per port, individual overload protection
IP65 plastic box with 10 x 12mm output glands and 1 x 16mm input gland
Dimensions: 187mm L x 122mm W x 90mm D
Weight: 1kg
Ambient operating temperature: 0 to 40°C
