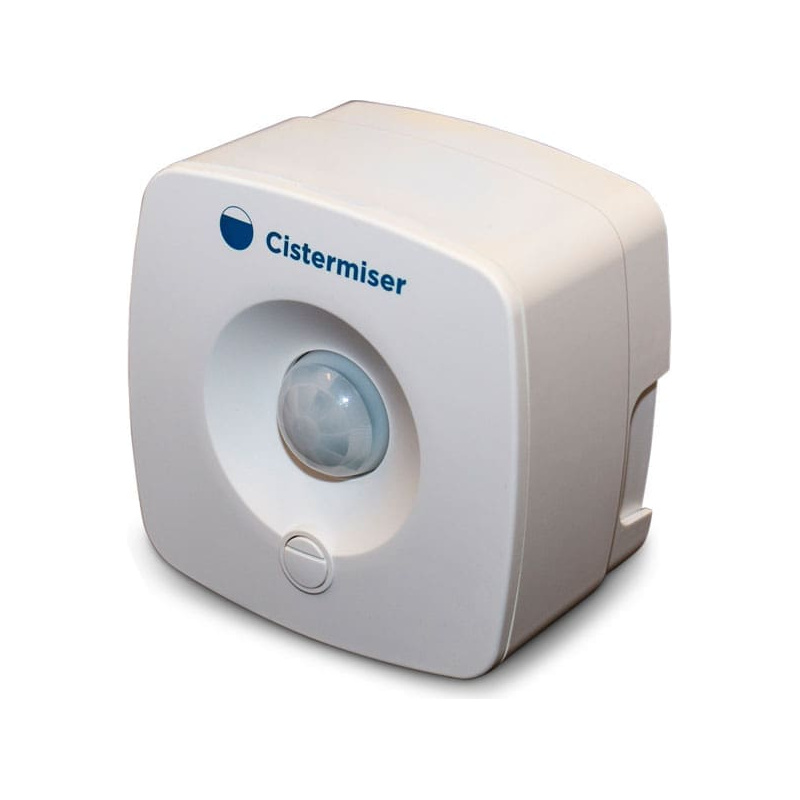

Cistermiser IRC Infrared Urinal Control Valve

IRC infrared motion-sensing control valve for urinal-flushing cisterns, reduces water consumption by over 80%
PIR sensor opens the solenoid valve to fill the urinal cistern only when the washroom is used
Normal or Economy mode
Hygiene flush after 12 hours without occupancy
Mains or battery powered, batteries can back up mains supply, no external transformer required

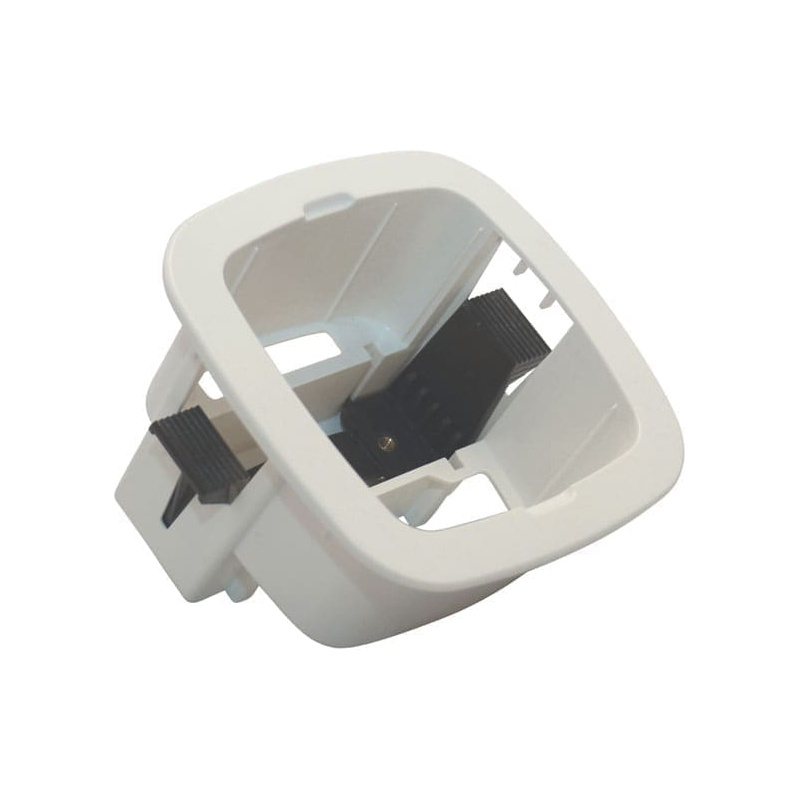

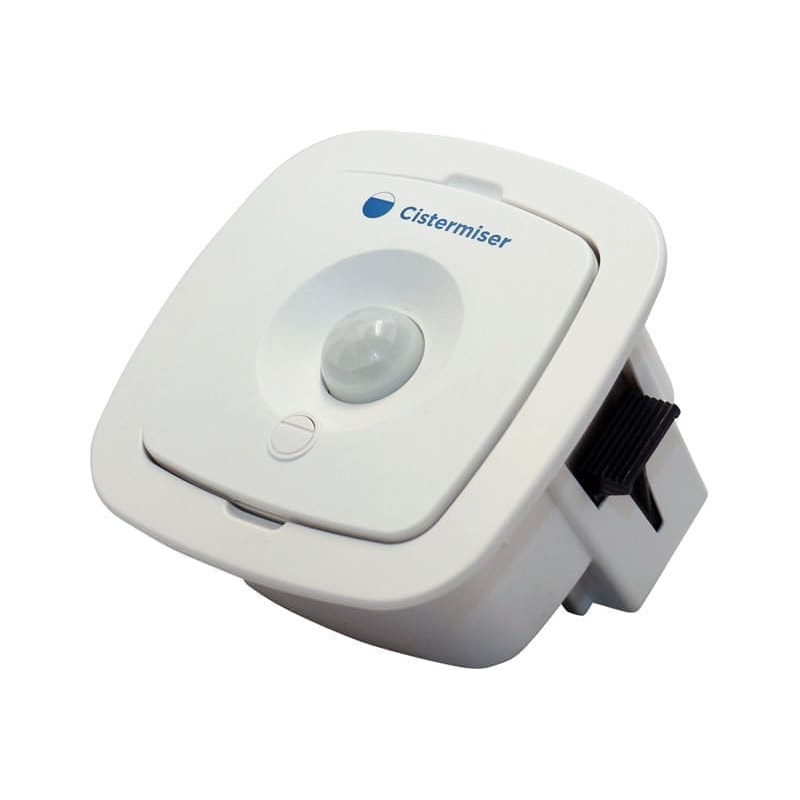

Sensor mounts on the valve, on a pipe or wall, or recessed into a suspended ceiling (bracket and template supplied)
LED status indicator and low battery alert

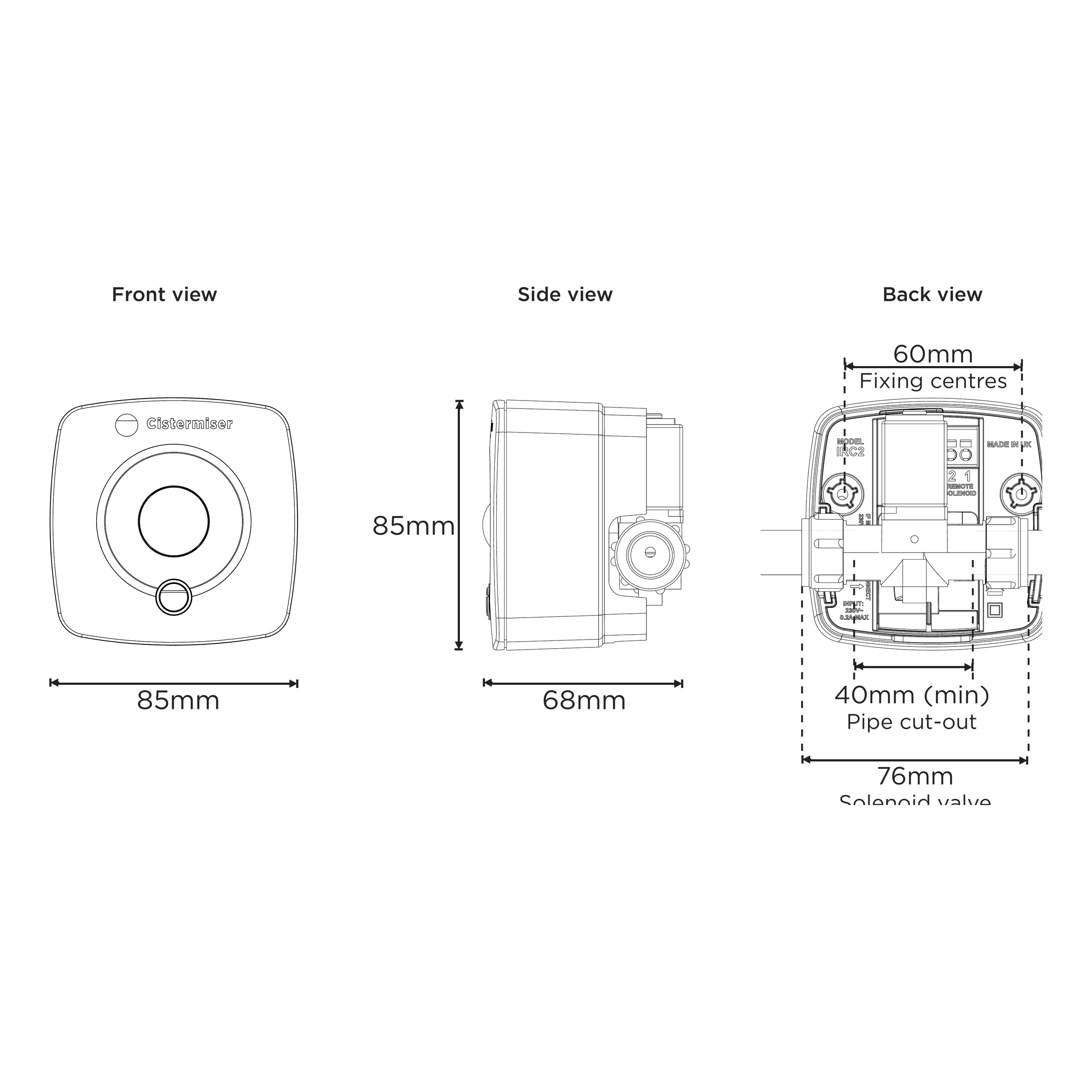

Sensor: 85mm W x 85mm H x 68mm D
Detection: 125° spanning 9.2m at floor level, up to 2.5m high
Water pressure: 0.1 to 6 bar, integral slow-fill flow regulator
Connection: 1/2″ BSP (15mm)
6V latching solenoid valve, WRAS approved
Battery life: approx. 3 years
