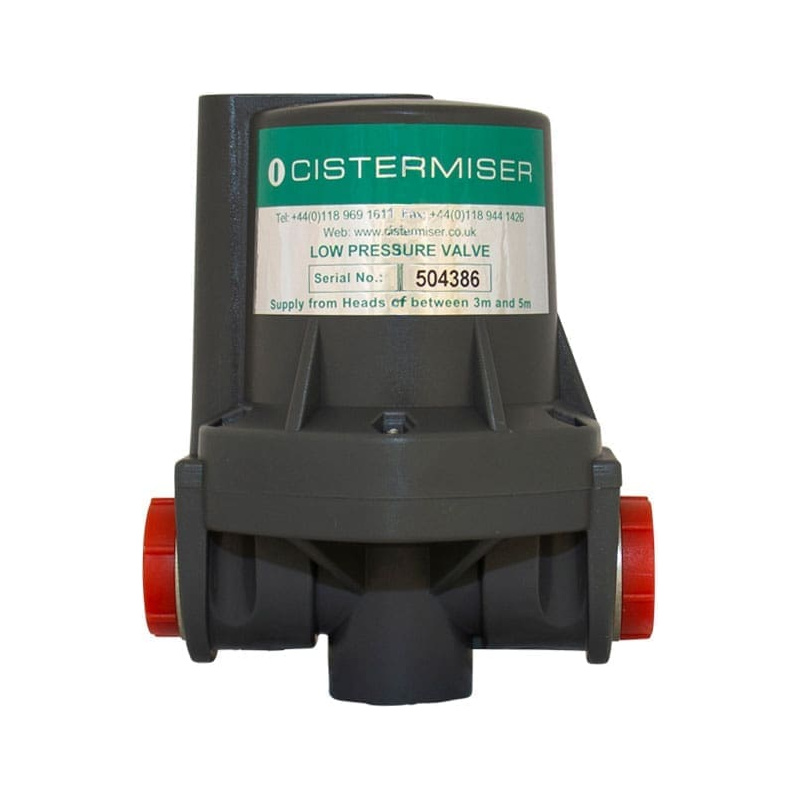

Cistermiser Hydraulic Urinal Control Valve Low Pressure

Hydraulic Control Valve automatic urinal flush control for cistern-fed urinals, low pressure model
Fills the urinal cistern only when the washroom is in use, triggered by pressure drops from taps or WCs on the same supply
No mains or battery power required
Adjuster screw sets the volume of water discharged into the cistern
Reduces water consumption and washroom odours
WRAS approved

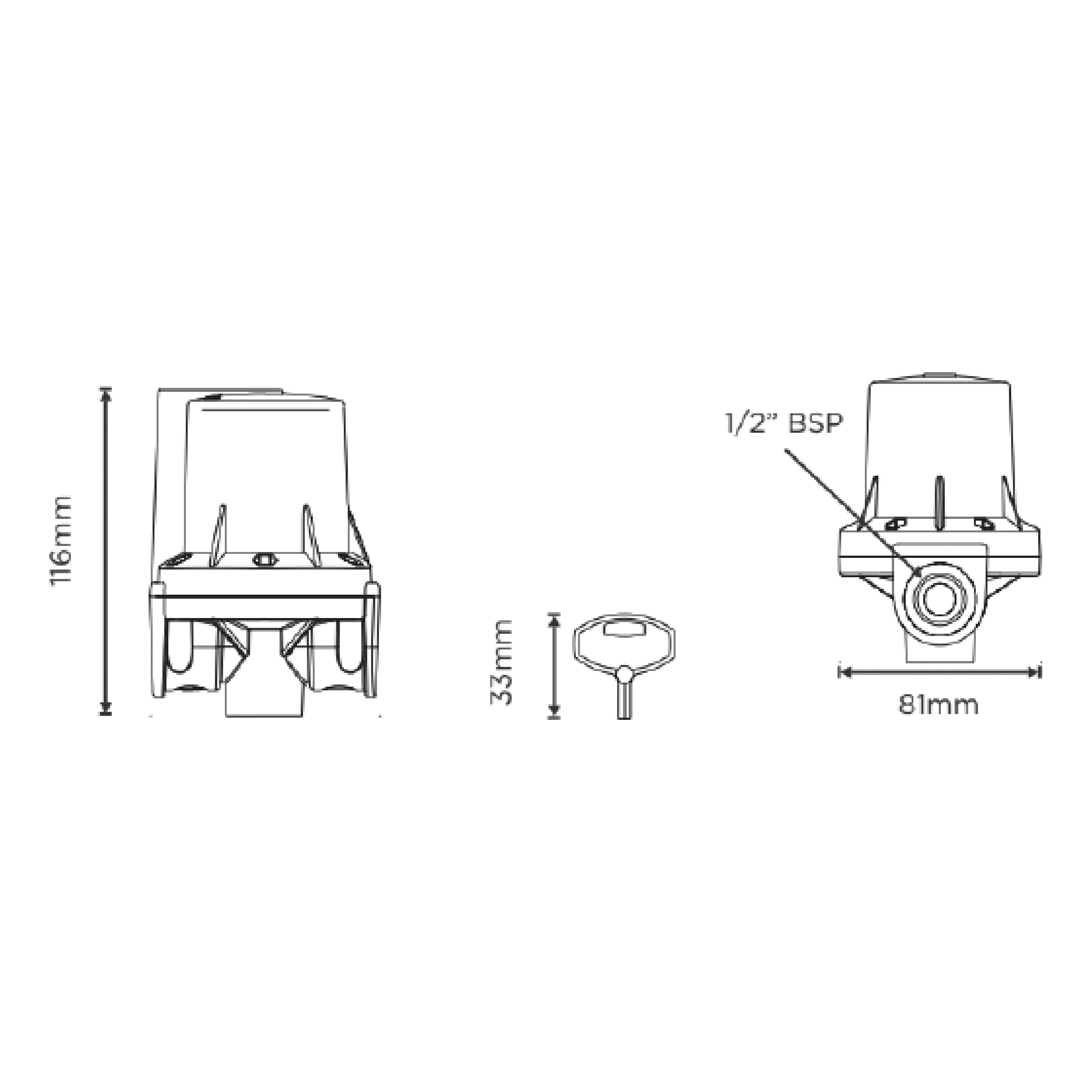

Dimensions: 81mm W x 116mm H x 81mm D
Connection: 1/2″ BSP (15mm)
Operating sensitivity: 15% of supply pressure
Supply pressure: 0.3 to 0.5 bar, tank-fed systems with 3 to 5m head
