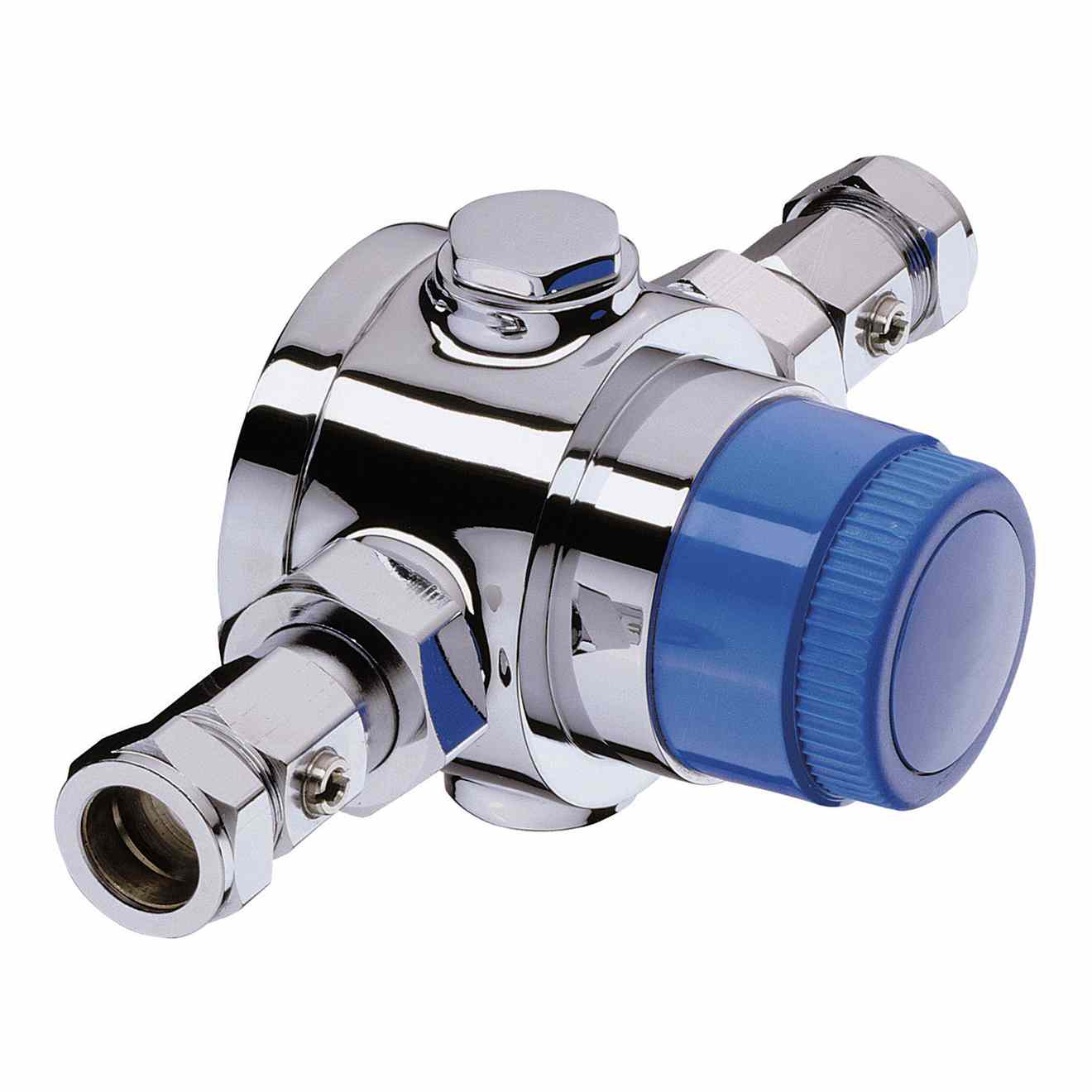

Bristan Gummers 22mm TMV3 Thermostatic Mixing Valve

Gummers 22mm Thermostatic TMV3 group blending valve with integral isolation valves
Ideal for group applications at pressures as low as 0.1 bar
Temperature control can be locked in position or allow adjustment
Automatic shut-off in the event of hot or cold water supply failure
Check valves and serviceable filters as standard
Operates at a maximum pressure differential of 10:1
Chrome finish
Brass construction
Working Pressure Range: Minimum 0.1 Bar – Maximum 5.0 Bar
Connection Inlet: 22mm
Connection Outlet: 22mm

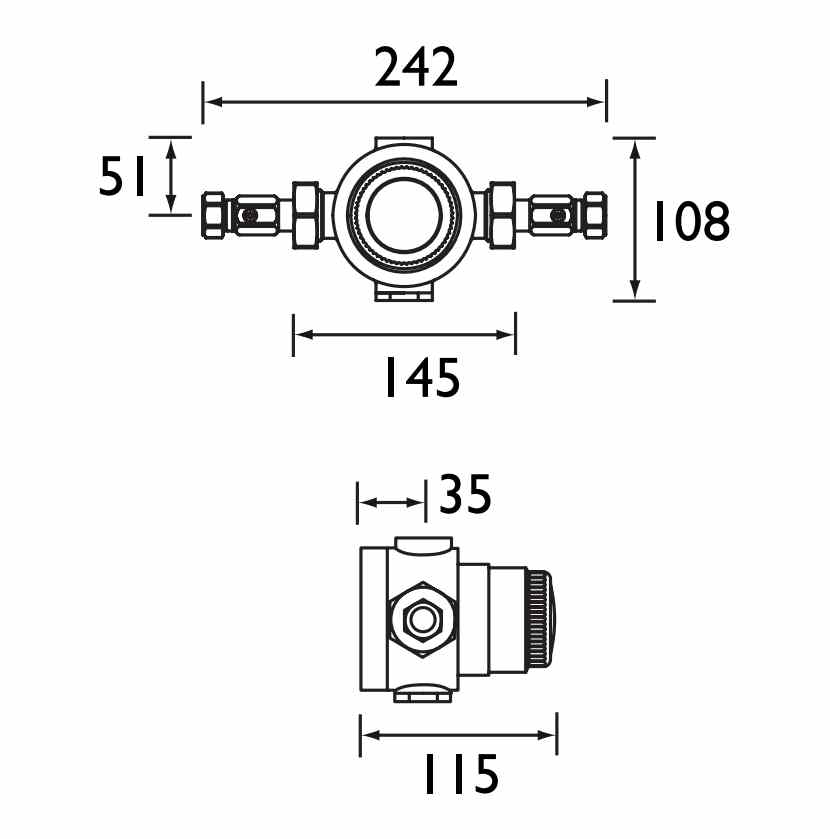

Product Data
