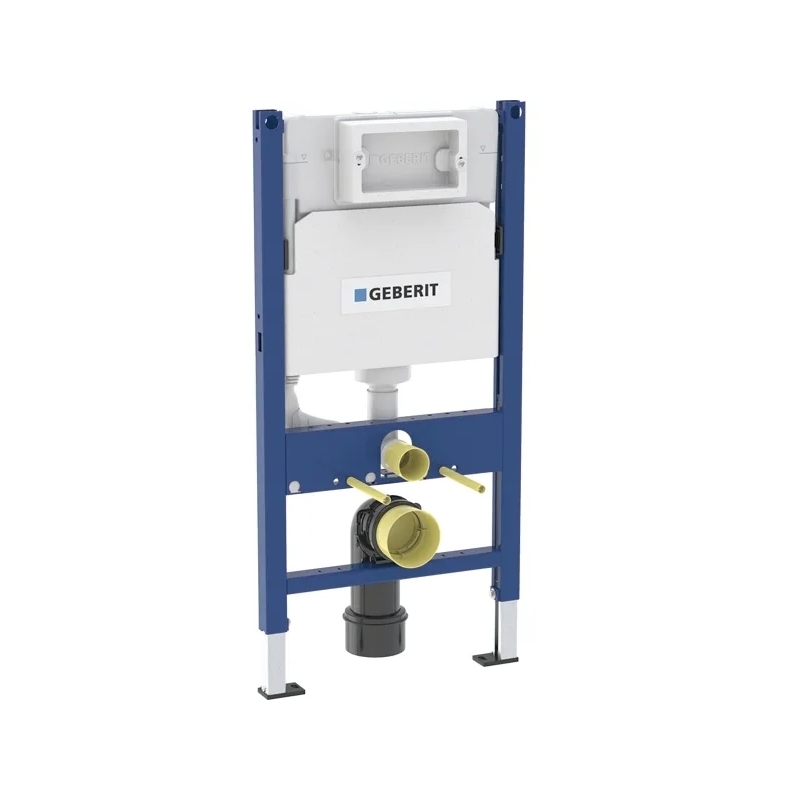

Geberit Duofix installation frame for wall-hung WC, 98cm, with Delta concealed cistern 12cm
For drywall construction
For installation in part-height prewall installations
For wall-hung WCs with connection dimensions in accordance with EN 33:2011
For wall-hung WCs with projection up to 62cm
For floor constructions 0–20cm
Statically self-supporting frame, protected against corrosion with powder coating
Frame top open
Frame with 9mm drilling holes for fastening in wood frame construction
Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
Galvanized feet
Feet adjustable 0–20cm
Foot plates made of plastic
Foot plate depth suitable for installation in U-profiles UW 50
Connection bend can be mounted without tools
Concealed cistern with front actuation
Concealed cistern fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Water supply connection on the rear or top centre
With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
Scope of delivery:
Water supply connection unit R 1/2″, compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening, made of polystyrene foam
2 distance bolts
2 wall anchors
Connection set for WC 90mm
Connection bend 90° made of PE-HD 90mm
Adaptor socket made of PE-HD 90/110mm
2 protection plugs
2 threaded rods M12
Fastening material
